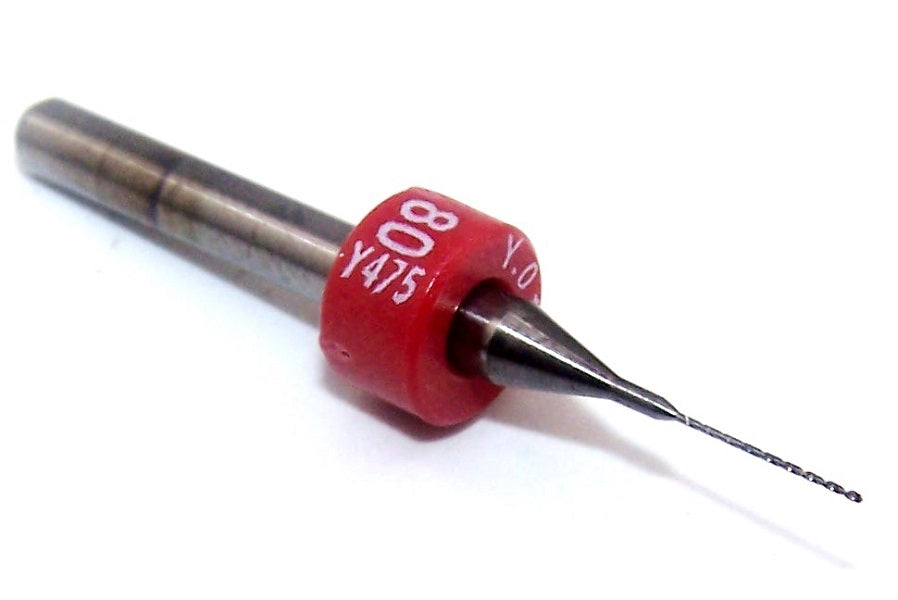

475Q0135F280A2 Kyocera #80 Solid Carbide PCB Drill Bit – High-Precision Micro Diameter Tool

475Q0135F280A2 Kyocera #80 Solid Carbide PCB Drill Bit – High-Precision Micro Diameter Tool

Part Number: 475Q0135F280A2

SKU:

Manufacturer: Kyocera PCB

$1.10 USD
$1.60 USD $1.10 USD
Sale Sold out

66 in stock

PRODUCT STATS

DIAMETER 0.0135"
FLUTE NUMBER 2
LENGTH OF CUT 0.2800"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE #80
BRAND Kyocera PCB
CUTTING SIZE #80
CUT DIRECTION Up Cut
ENDS Single
END STYLE Drill Point
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
FLUTE STYLE Spiral
INCLUDED POINT ANGLE 130.0°
MATERIAL Solid Carbide
MATERIALS CUT Plastic, Fiberglass, Aluminum, Composite Materials, Wood, Carbon Fiber
MPN 475Q0135F280A2
USABLE LENGTH 0.28"
Speeds and Feeds

Achieve reliable, high-accuracy results with the Kyocera #80 Solid Carbide Circuit Board Drill. Manufactured from premium solid carbide, this micro-diameter drill bit offers outstanding rigidity, heat resistance, and tool life—even under demanding high-speed drilling conditions.

Perfect for PCB manufacturing, electronics repair, CNC machines, and micro-fabrication setups, the #80 size provides precise hole quality for vias, component leads, and small-format circuitry.

Features:

  • #80 micro drill size

  • Solid carbide construction for superior hardness and long tool life

  • Designed specifically for PCB materials including FR-4, composites, and laminates

  • Excellent performance at high spindle speeds

  • Produces clean, accurate, burr-free holes

  • Ideal for electronics labs, CNC operators, and production lines

The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
