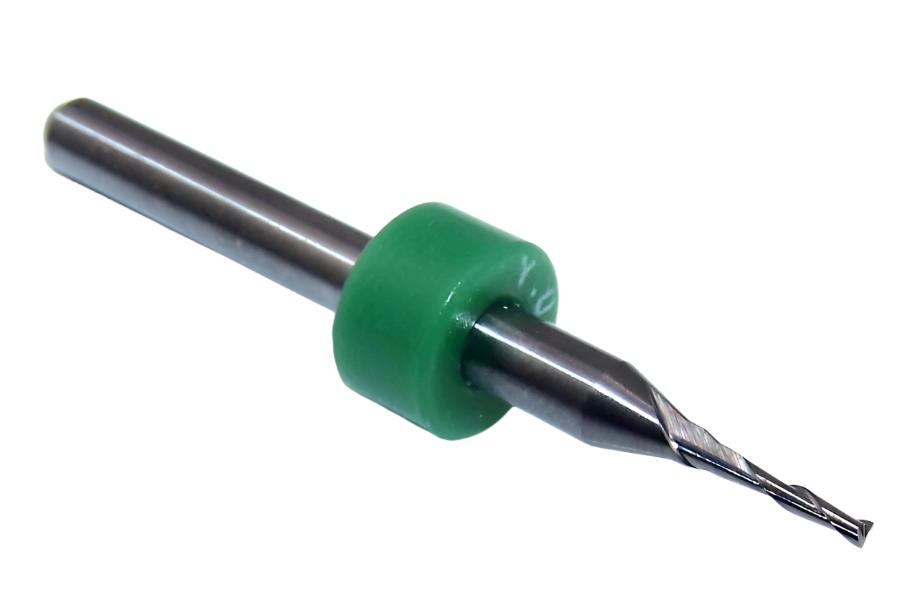

1600.0394.200 Kyocera 1.00mm Carbide 2 Flute End Mill PCB .0394" Diameter .200" Flute 1.50" Length .125" Shank

1600.0394.200 Kyocera 1.00mm Carbide 2 Flute End Mill PCB .0394" Diameter .200" Flute 1.50" Length .125" Shank

Part Number: 1600.0394.200

SKU: 152329164382

Manufacturer: Kyocera PCB

Regular price $3.50 USD
Regular price Sale price $3.50 USD
Sale Sold out

100 in stock

PRODUCT STATS

DIAMETER 0.0394"
FLUTE NUMBER 2
LENGTH OF CUT 0.2000"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 1.00mm
BRAND Kyocera PCB
CUTTING SIZE 1.00mm
END STYLE Center Cut, Square, Flat
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Copper, Fiberglass, Composite Materials
MPN 1600.0394.200
Speeds and Feeds

PCB-Type Carbide 2-Flute End Mill

This PCB type solid carbide end mill is a versatile and precision cutting tool designed for high performance machining at a low cost.  The premium grade carbide offers exceptional hardness, wear resistance, and longevity, ensuring reliable performance and extended tool life even under demanding conditions.

Although originally designed for routing printed circuit boards (PCB’S), this end mill has excelled in machining a wide variety of materials, including plastic (soft and hard), wood (soft and hard), MDF, composite material, aluminum, and copper.



Key Features:

  • Material: Made from high-quality carbide, known for its superior strength and durability, which enhances cutting efficiency and extends tool life.
  • Flute Design: Features two flutes that provide excellent chip removal and reduce heat buildup, allowing for clean and precise cuts through PCB materials.
  • Cutting Edge: Engineered for optimal cutting performance with sharp edges that ensure smooth, burr-free finishes on circuit boards.
  • Shank: Typically comes with a standard shank size for compatibility with a wide range of CNC machines and routers.

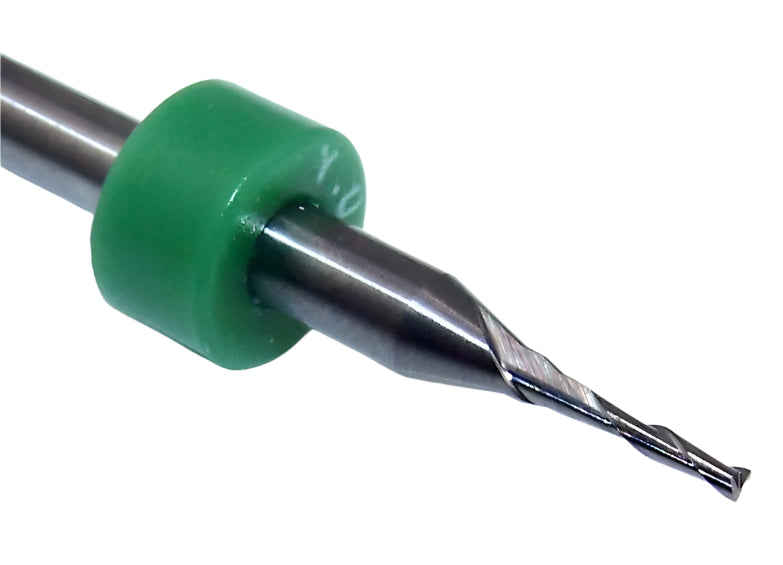

  • Ringset: These tools offer a collet locating ring for quick tool change without the need to reset the plunge depth.

Applications: Ideal for cutting and engraving PCB substrates, such as FR4, copper, and other composite materials.  Also ideal for woods and plastics

The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
