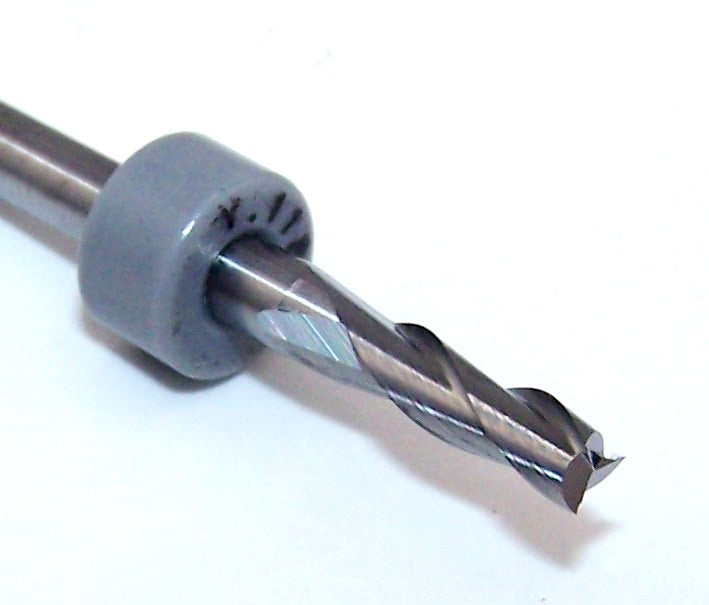

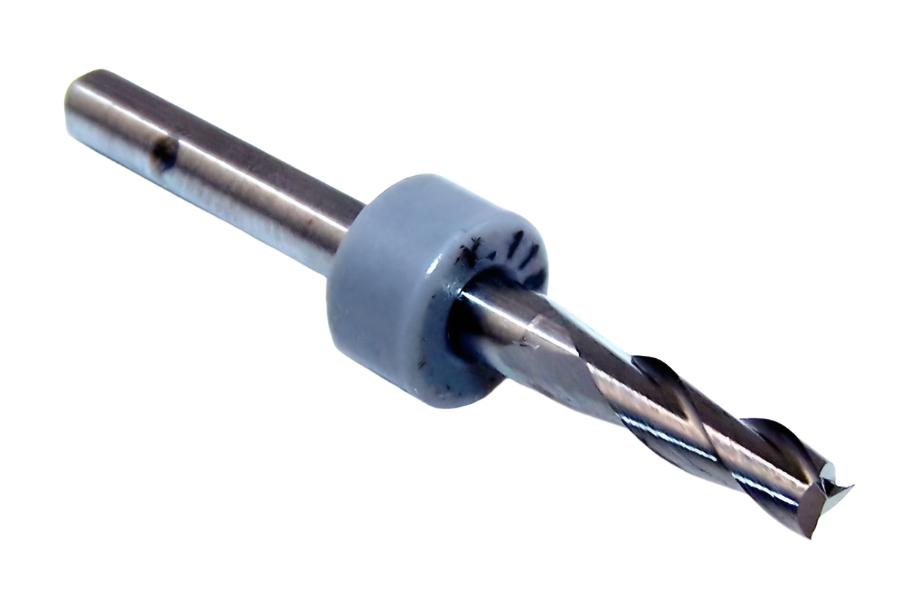

1700.1181.395 Kyocera 3.00mm Carbide 3 Flute End Mill .1181" Diameter .395" Flute .125 Shank

1700.1181.395 Kyocera 3.00mm Carbide 3 Flute End Mill .1181" Diameter .395" Flute .125 Shank

Part Number: 1700.1181.395

SKU: 153084627620

Manufacturer: Kyocera PCB

Regular price $3.75 USD
Regular price Sale price $3.75 USD
Sale Sold out

972 in stock

PRODUCT STATS

DIAMETER 0.1181"
FLUTE NUMBER 3
LENGTH OF CUT 0.3950"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 3.00mm
BRAND Kyocera PCB
COATING Uncoated
CORNER RADIUS 0.0"
CUTTING SIZE 3.00mm
CUT DIRECTION Up Cut
ENDS Single
END STYLE Square, Flat
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
FLUTE STYLE Spiral
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Copper
MPN 1700.1181.395
Speeds and Feeds

PCB-Type Carbide 3-Flute End Mill

This PCB type solid carbide end mill is a versatile and precision cutting tool designed for high performance machining at a low cost.  The premium grade carbide offers exceptional hardness, wear resistance, and longevity, ensuring reliable performance and extended tool life even under demanding conditions.

Although originally designed for routing printed circuit boards (PCB’S), this end mill has excelled in machining a wide variety of materials, including plastic (soft and hard), wood (soft and hard), MDF, composite material, aluminum, and copper.



Key Features:

  • Material: Made from high-quality carbide, known for its superior strength and durability, which enhances cutting efficiency and extends tool life.
  • Flute Design: Features three flutes that provide higher speed and strength than two flute end mills.
  • Cutting Edge: Engineered for optimal cutting performance with sharp edges that ensure smooth, burr-free finishes on circuit boards.
  • Shank: Typically comes with a standard shank size for compatibility with a wide range of CNC machines and routers.
  • Ringset: These tools offer a collet locating ring for quick tool change without the need to reset the plunge depth.

Applications: Ideal for cutting a variety of materials such as FR4 and other composite materials.  Also ideal for woods and plastics

The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
