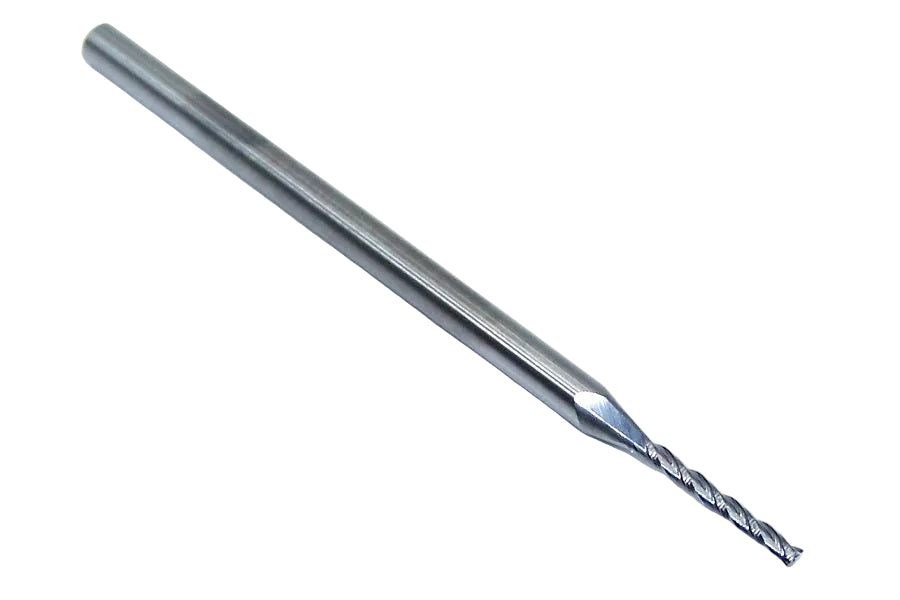

01268 Kyocera SGS 1/16" Carbide 3 Flute End Mill Long Length SQ Bright Uncoated 0.0620 Diameter 0.496" Flute 2.50" Length 0.125" Shank

01268 Kyocera SGS 1/16" Carbide 3 Flute End Mill Long Length SQ Bright Uncoated 0.0620 Diameter 0.496" Flute 2.50" Length 0.125" Shank

Part Number: 01268

SKU: 389481932095

Manufacturer: Kyocera SGS

$18.40 USD
$0.00 USD $18.40 USD
Sale Sold out

12 in stock

PRODUCT STATS

DIAMETER 0.0625"
FLUTE NUMBER 3
LENGTH OF CUT 0.4960"
OVERALL LENGTH 2.5"
SHANK SIZE 0.125"
SIZE 1/16"
BRAND Kyocera SGS
CUTTING SIZE 1/16"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Center Cut, Square
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Graphite, Copper, Carbon Fiber Reinforced Polymer, Plastic, Thermoset Plastic, High Density Plastic, Titanium, Steel
MPN 01268
OUTSIDE DIAMETER 0.062"
USABLE LENGTH 0.496"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

The Kyocera SGS M3SE series is a line of micro carbide end mills with a 3‑flute square end design, optimized for precision machining in small diameters. They balance chip evacuation, strength, and feed capability, making them ideal for micro‑finishing and high‑quality part production.

  • Available in very small sizes
  • 3 flute design for improved chip evacuation compared to 4 flutes, while offering greater strength and higher feed rates than 2 flute
  • Square end, center cutting
  • 30° flute helix for balanced cutting
  • 1/8" shank diameter across the series
  • Optimized for deep pocket and side milling

Applications

  • Aluminum (primary)
  • Plastic (primary
  • copper (primary)
  • light steel (primary)





The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
