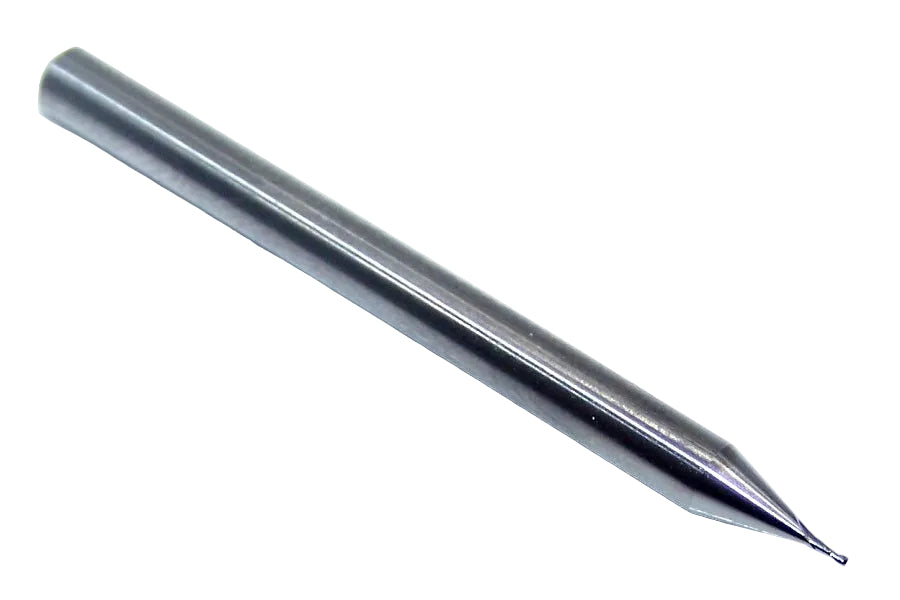

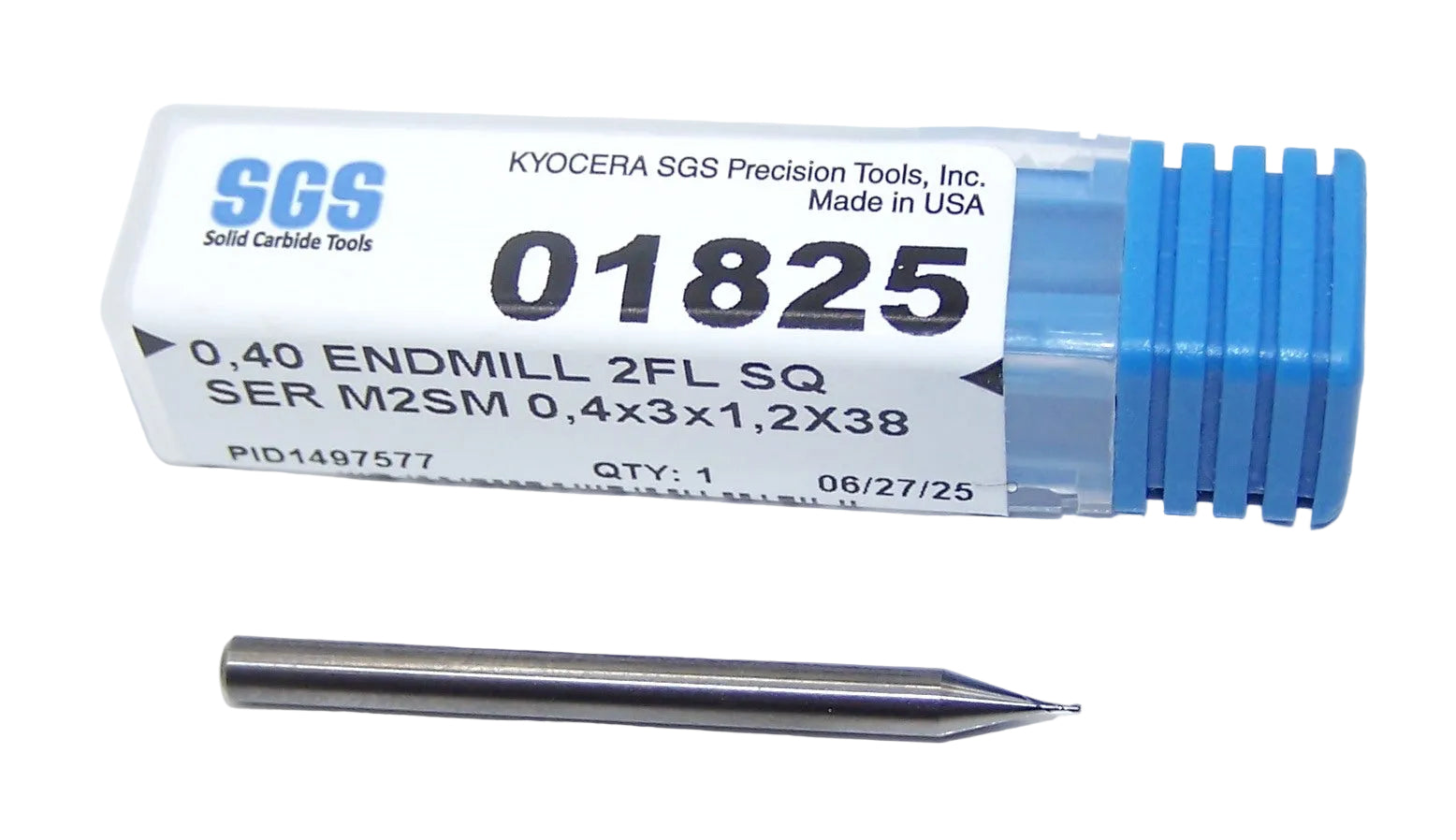

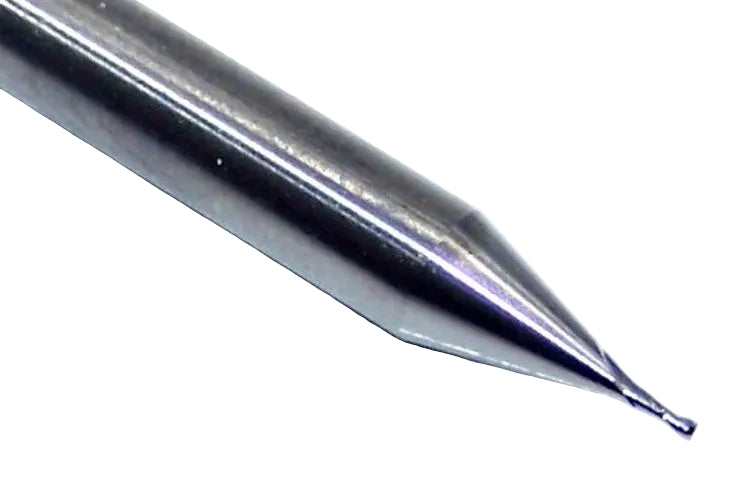

01825 Kyocera SGS 0.40mm Carbide Micro End Mill .0157" Diameter .0472" Flute 1.50" Length .1181" Shank

01825 Kyocera SGS 0.40mm Carbide Micro End Mill .0157" Diameter .0472" Flute 1.50" Length .1181" Shank

Part Number: 01825

SKU: 157889786903

Manufacturer: Kyocera SGS

$18.65 USD
$18.65 USD
Sale Sold out

20 in stock

PRODUCT STATS

DIAMETER 0.0157"
FLUTE NUMBER 2
LENGTH OF CUT 0.0472"
OVERALL LENGTH 1.5"
SHANK SIZE 0.1181"
SIZE 0.20mm
BRAND Kyocera SGS
COATING Uncoated
CUTTING SIZE 0.40mm
CUT DIRECTION Up Cut
ENDS Single
END STYLE Square
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Copper, High Density Plastic
MPN 01825
USABLE LENGTH 0.0157"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Micro End Mill Sale from Kyocera SGS

  • 2 flute design ideal for softer alloyed, non-ferrous material application
  • High performance carbide substrate designed specifically for Micro Tool Applications
  • Advanced geometries that extend tool life, and reduce chatter
  • Right hand, up cut
  • Manufactured in accordance with KSPT ISO certified quality processes

Material Applications

  • Non-Ferrous Materials
  • Plastics
  • Wood
  • light duty in steels



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
