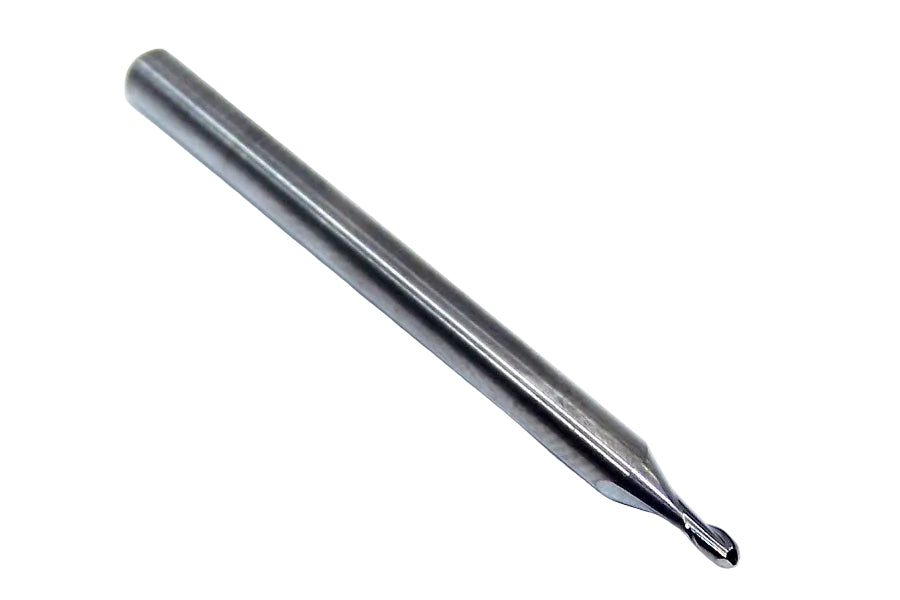

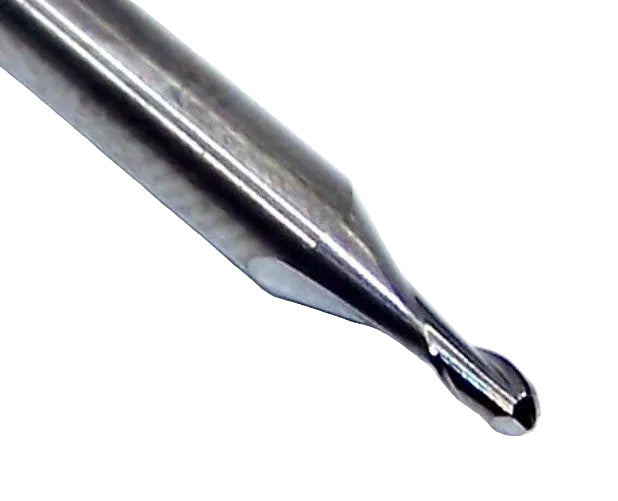

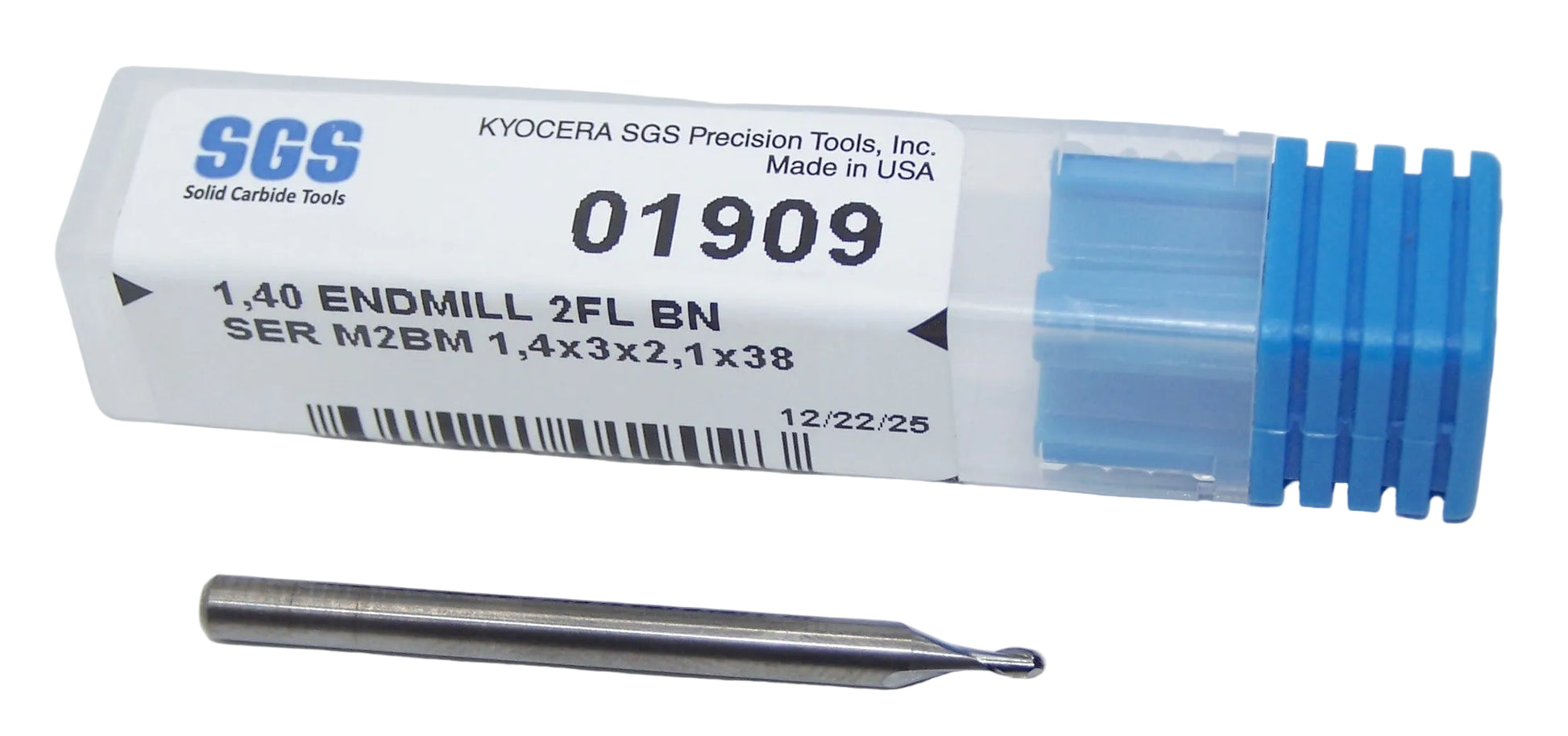

01909 Kyocera SGS 1.40mm Carbide 2 Flute Ball End Mill Bright .0551" Diameter .0827" Flute 1.50" Length .1181" Shank

01909 Kyocera SGS 1.40mm Carbide 2 Flute Ball End Mill Bright .0551" Diameter .0827" Flute 1.50" Length .1181" Shank

Part Number: 01909

SKU: 157827126455

Manufacturer: Kyocera SGS

$14.40 USD
$14.40 USD
Sale Sold out

Low stock: 8 left

PRODUCT STATS

DIAMETER 0.0551"
FLUTE NUMBER 2
LENGTH OF CUT 0.0827"
OVERALL LENGTH 1.5"
SHANK SIZE 0.1181"
SIZE 1.40mm
BRAND Kyocera SGS
CUTTING SIZE 1.40mm
CUT DIRECTION Up Cut
ENDS Single
END STYLE Ball Nose
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Copper, High Density Plastic, Steel, Stainless Steel
MPN 01909
USABLE LENGTH 0.0827"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA



Kyocera SGS Micro 2 Flute Carbide End Mill - Ball End

  • Ball End for shaping, contour, slotting, and pocketing
  • 2 flute design, ideal for cutting softer alloyed and non-ferrous material applications that require slotting or involve heavy chip loads
  • High performance carbide substrate designed specifically for Micro Tool applications
  • 30° flute helix
  • General purpose use for milling
  • Manufactured in accordance with ISO certified quality procedures
  • Economical (volume pricing)

Applications

  • Plastic - primary
  • Aluminum
  • Copper
  • Wood
  • Titanium
  • Steel - when coated
  • Stainless Steel - when coated
  • Cast Iron - when coated



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
