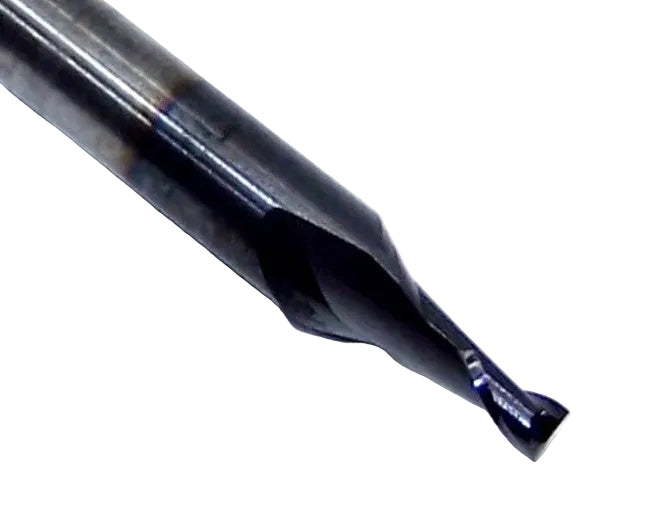

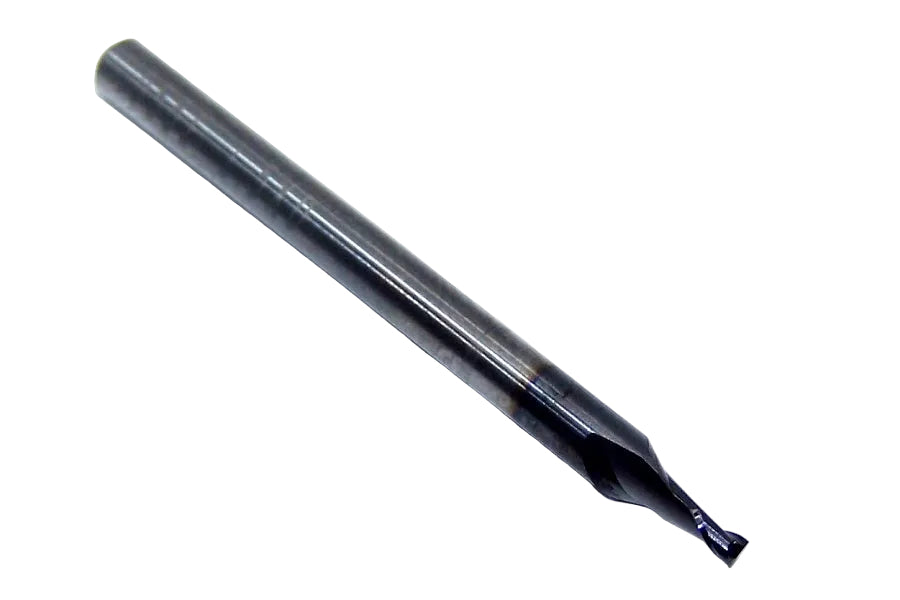

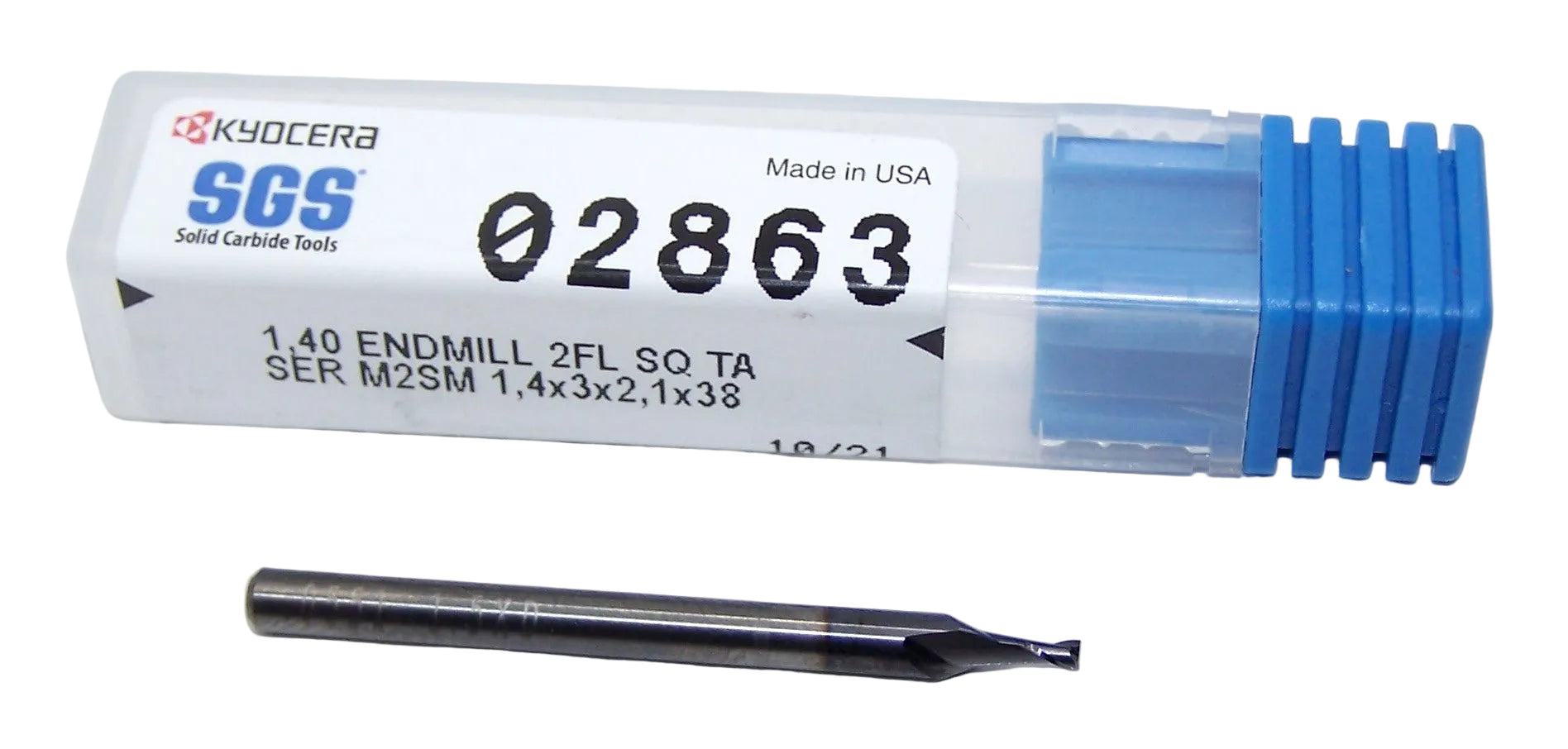

02863 Kyocera SGS 1.40mm Carbide Micro End Mill AlTiN Coated .0551" Diameter .0827" Flute 1.50" Length .1181" Shank

02863 Kyocera SGS 1.40mm Carbide Micro End Mill AlTiN Coated .0551" Diameter .0827" Flute 1.50" Length .1181" Shank

Part Number: 02863

SKU:

Manufacturer: Kyocera SGS

$10.95 USD
$15.55 USD $10.95 USD
Sale Sold out

11 in stock

PRODUCT STATS

DIAMETER 0.0551"
FLUTE NUMBER 2
LENGTH OF CUT 0.0827"
OVERALL LENGTH 1.5"
SHANK SIZE 0.1181"
SIZE 1.40mm
BRAND Kyocera SGS
CUTTING SIZE 1.40mm
CUT DIRECTION Up Cut
ENDS Single
END STYLE Square
FINISH TYPE ALTiN
FLUTE DIRECTION Right Hand
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Hardened Steel, Cast Iron
MPN 02863
USABLE LENGTH 0.0827"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Micro End Mill Sale from Kyocera SGS

  • 2 flute design ideal for softer alloyed, non-ferrous material application
  • High performance carbide substrate designed specifically for Micro Tool Applications
  • Advanced geometries that extend tool life, and reduce chatter
  • Right hand, up cut
  • Manufactured in accordance with KSPT ISO certified quality processes

Material Applications

  • Non-Ferrous Materials
  • Plastics
  • Wood
  • light duty in steels
