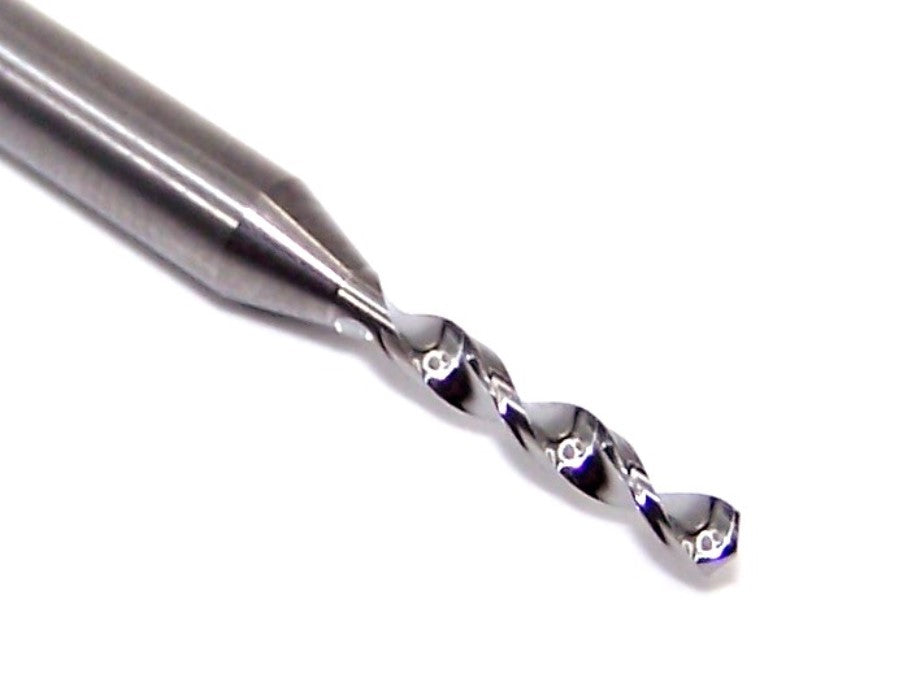

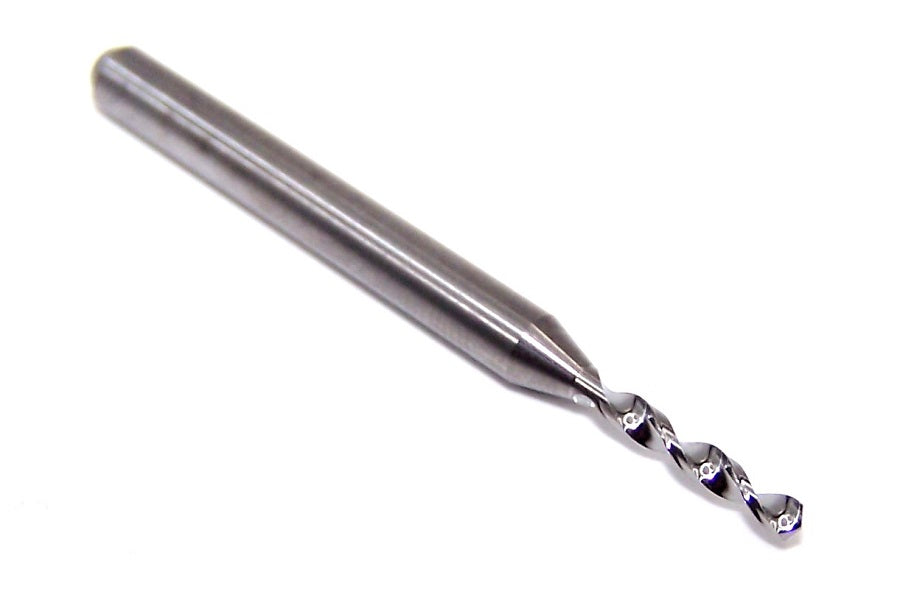

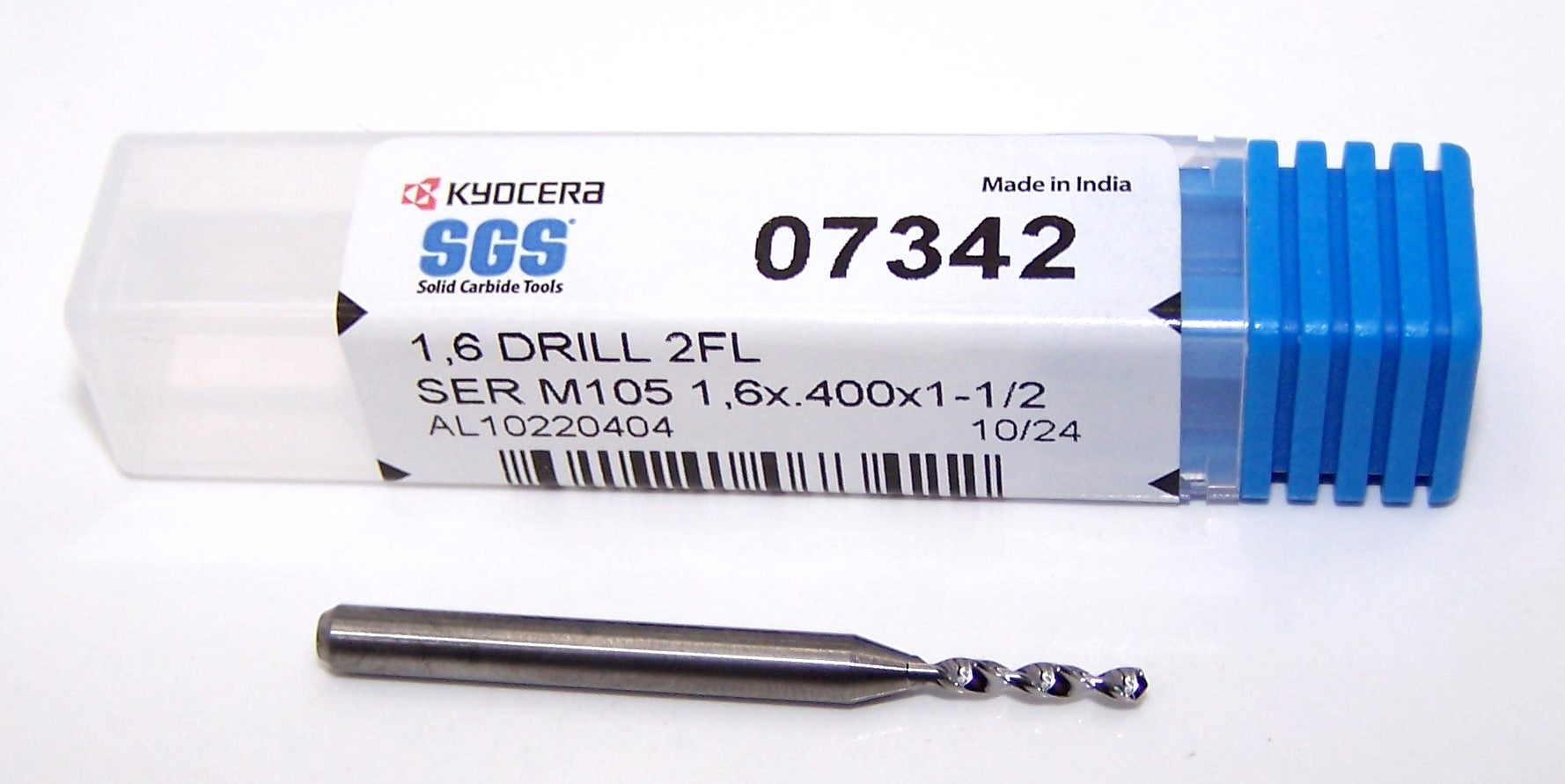

07342 Kyocera SGS 1.60mm Carbide Drill 2 FLUTE .0630" Diameter .400" Flute 1.50" Length .125" Shank 130° Point

07342 Kyocera SGS 1.60mm Carbide Drill 2 FLUTE .0630" Diameter .400" Flute 1.50" Length .125" Shank 130° Point

Part Number: 07342

SKU: 388326717274

Manufacturer: Kyocera SGS

$3.32 USD
$3.32 USD
Sale Sold out

12 in stock

PRODUCT STATS

DIAMETER 0.0630"
FLUTE NUMBER 2
LENGTH OF CUT 0.4000"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 1.60mm
BRAND Kyocera SGS
CUTTING SIZE 1.60mm
CUT DIRECTION Up Cut
ENDS Single
END STYLE Drill Point
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
FLUTE STYLE Spiral
INCLUDED POINT ANGLE 130.0°
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Composite Materials, Copper, Titanium
MPN 07342
Kyocera SGS Catalogs

Kyocera SGS Carbide Drill - PCB Type

  • Solid Carbide Micro Drill
  • 1/8" Shank
  • 130° Included Point Angle
  • 4-facet point design stabilizes the drill on entry for superior hole size control
  • Mirror surface finishes improve chip flow as hole depth increases
  • Application sub-micron grain carbide designed specifically for microtool applications
  • ISO certified manufacturing

Applications

  • Plastic
  • Steel
  • Aluminum
  • Cast Iron
  • Non-ferrous materials
  • Titanium

The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
