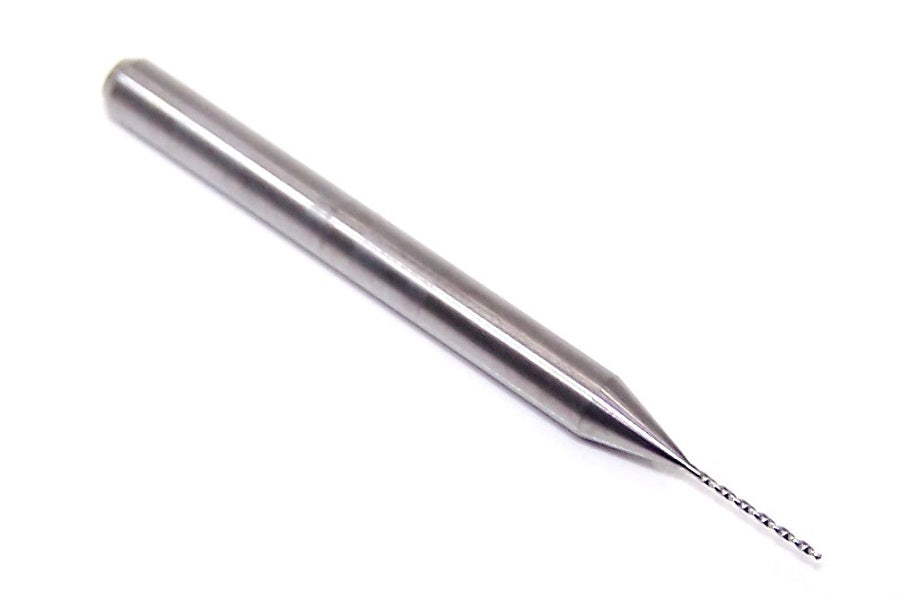

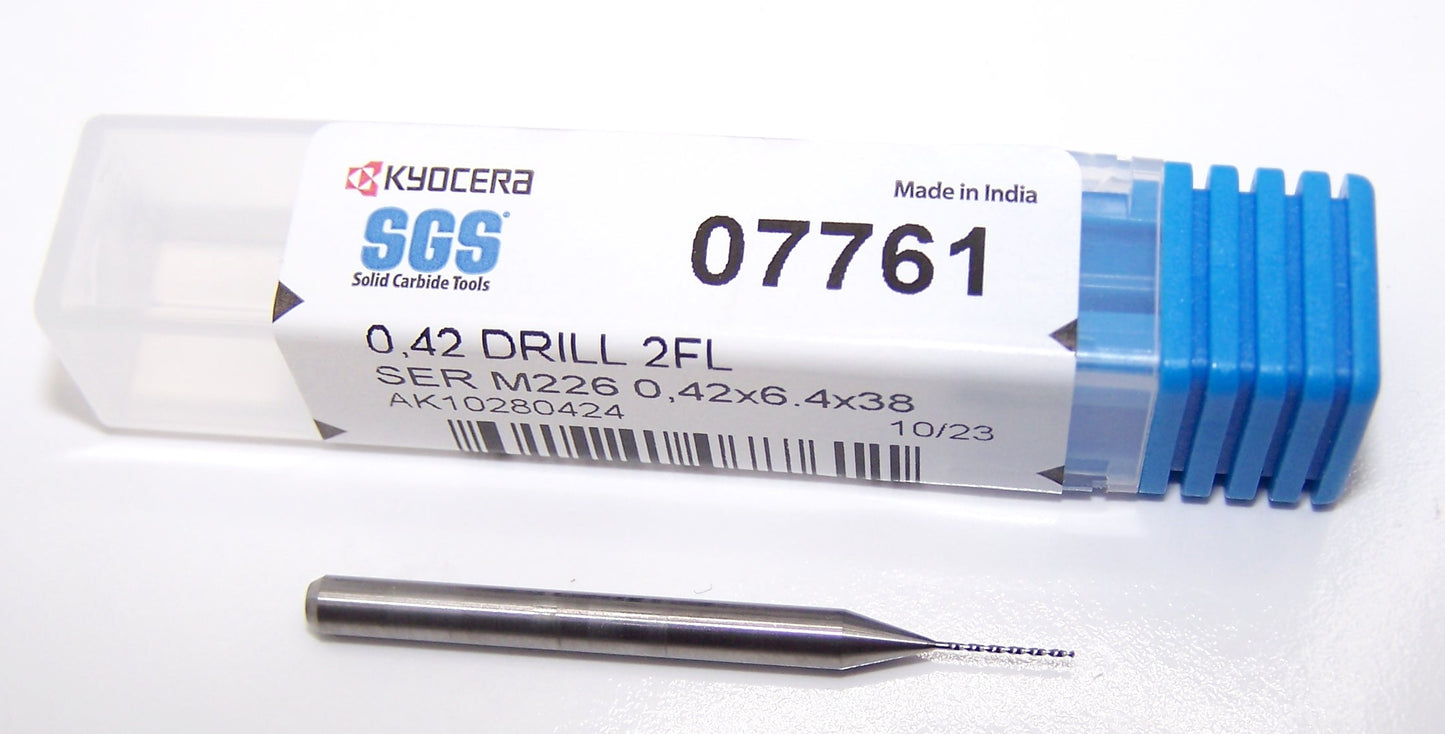

07761 SGS 0.42mm Carbide Drill 2 Flute 0.0165" Diameter .250" Flute 1.50" Length .118 Shank 130° Point M226
07761 SGS 0.42mm Carbide Drill 2 Flute 0.0165" Diameter .250" Flute 1.50" Length .118 Shank 130° Point M226
Part Number: 07761
SKU: 387862275260
Manufacturer: Kyocera SGS
Low stock: 3 left
Couldn't load pickup availability
PRODUCT STATS
| DIAMETER | 0.0165" |
| FLUTE NUMBER | 2 |
| LENGTH OF CUT | 0.2500" |
| OVERALL LENGTH | 1.5" |
| SHANK SIZE | 0.1181" |
| SIZE | 0.42mm |
| BRAND | Kyocera SGS |
| CUTTING SIZE | 0.42mm |
| CUT DIRECTION | Up Cut |
| ENDS | Single |
| END STYLE | Drill Point |
| FINISH TYPE | Bright |
| FLUTE DIRECTION | Right Hand |
| FLUTE STYLE | Spiral |
| INCLUDED POINT ANGLE | 130.0° |
| MATERIAL | Solid Carbide |
| MATERIALS CUT | Wood, Plastic, Aluminum, Composite Materials, Carbon Fiber, Steel |
| MPN | 07761 |
MADE IN USA
Kyocera SGS Series M226 Micro Drills
The Kyocera SGS Series M226 micro‑drills are engineered for high‑precision machining where accuracy, stability, and tool life are critical. Built from premium sub‑micron carbide and optimized for micro‑scale hole-making, the M226 series delivers consistent performance across demanding applications.
Key Features
• Solid carbide construction for maximum rigidity and long tool life
• 4‑facet or 2‑facet point geometry for excellent centering and reduced walking
• Mirror‑polished flutes to improve chip evacuation in deep‑hole drilling
• Optimized micro‑drill design for tight tolerances and precision hole quality
• Available Ti‑NAMITE‑A coating for enhanced wear resistance and heat control
• Engineered for high‑speed machining in CNC and automated production environments
• Consistent performance at micro diameters where tool failure risk is highest
Best‑Suited Materials
• Carbon steels (low to medium hardness)
• Alloy steels
• Tool steels
• Stainless steels (300 & 400 series)
• Cast iron
• Aluminum alloys
• Copper & brass
• Titanium (with coating recommended)
Applications
• Precision components
• Medical device machining
• Aerospace micro‑features
• Electronics & connector drilling
• Mold & die micro‑details
