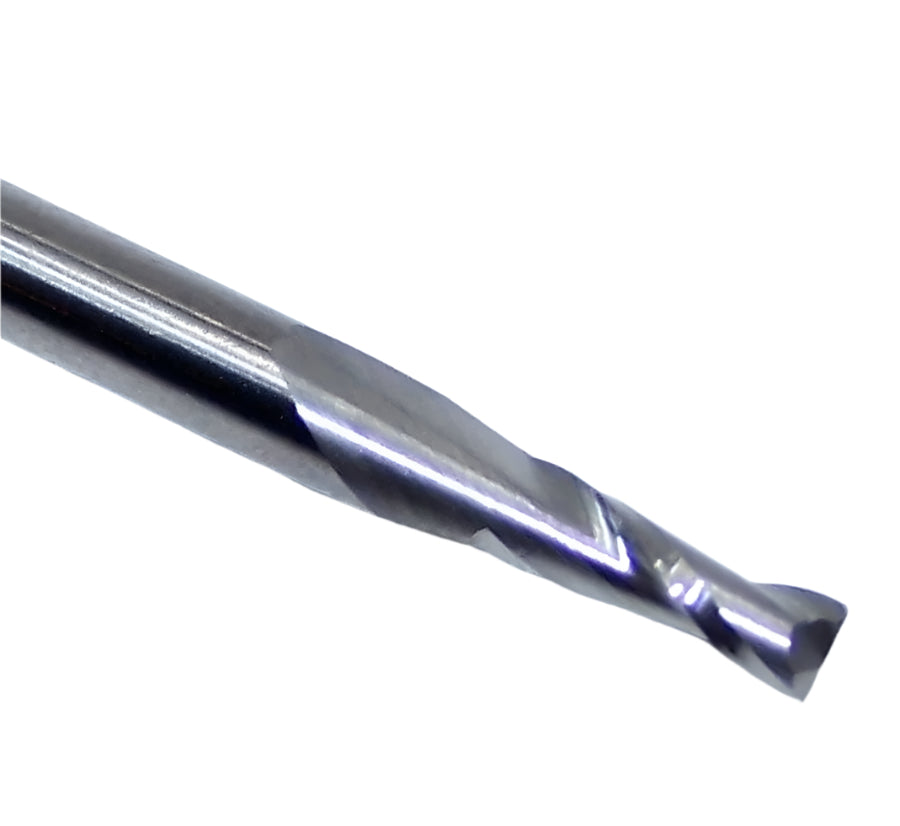

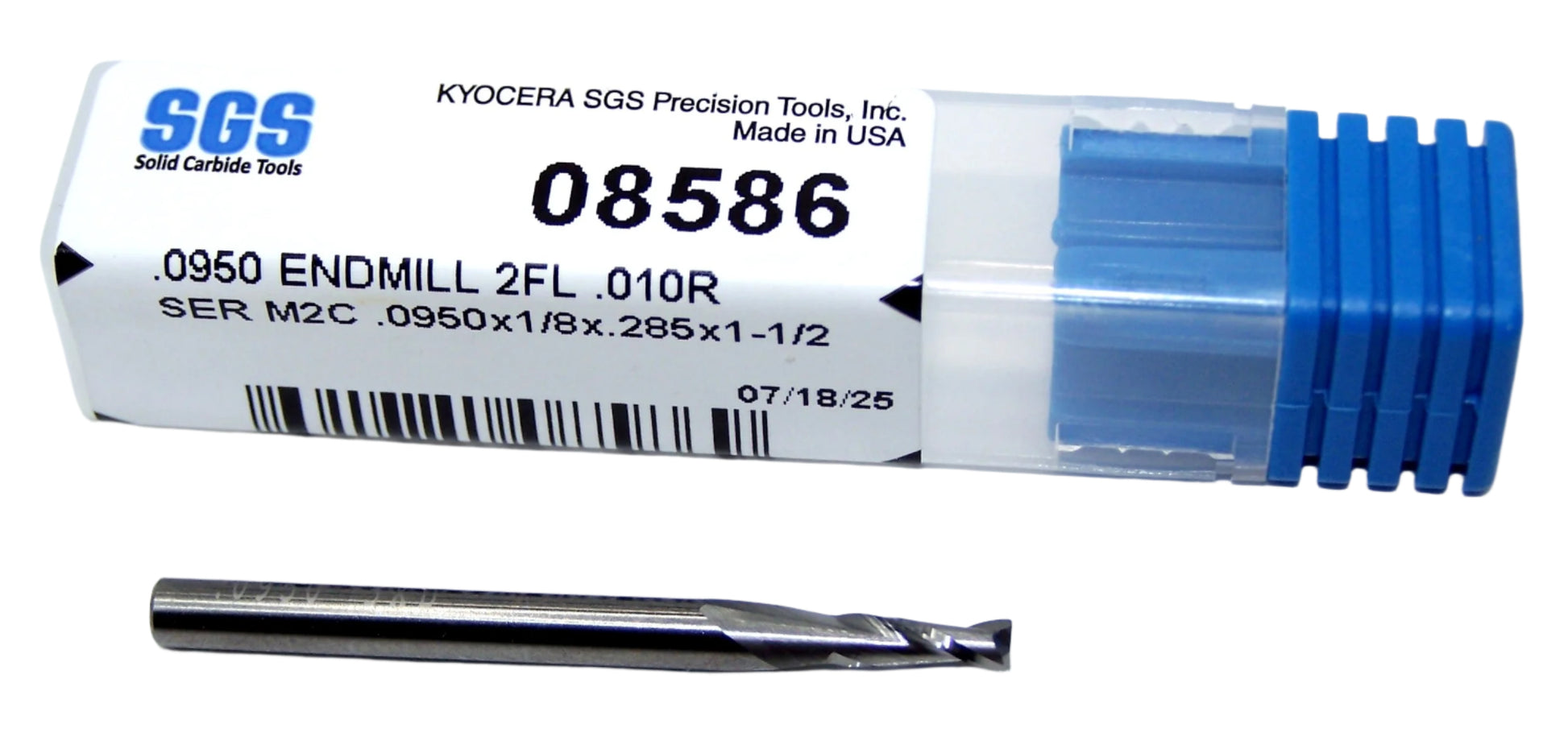

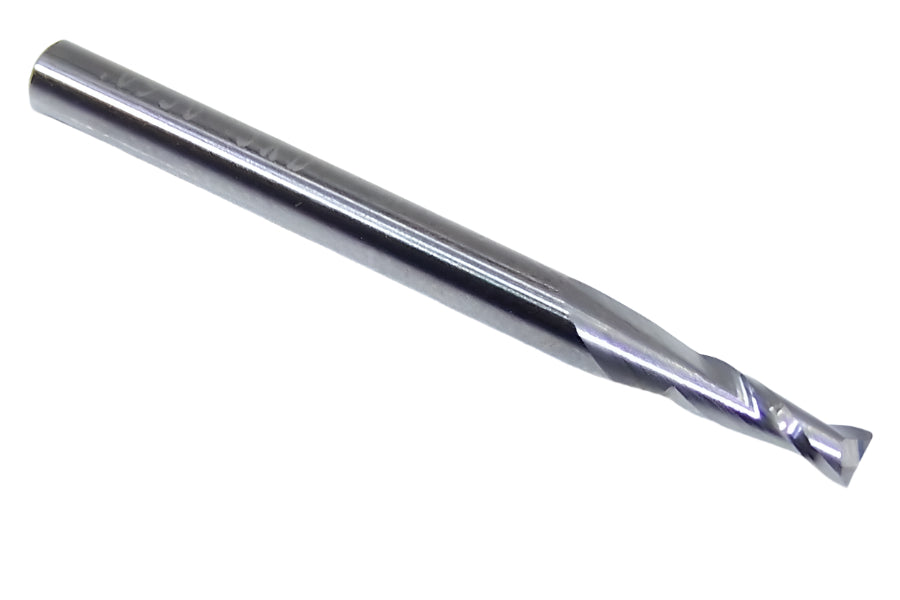

08586 Kyocera SGS .0950" Carbide 2 Flute End Mill .010" Radius .090" Diameter .285" Flute 1.50" Length .125" Shank

08586 Kyocera SGS .0950" Carbide 2 Flute End Mill .010" Radius .090" Diameter .285" Flute 1.50" Length .125" Shank

Part Number: 08586

SKU:

Manufacturer: Kyocera SGS

$13.30 USD
$13.30 USD
Sale Sold out

Low stock: 5 left

PRODUCT STATS

DIAMETER 0.0950"
FLUTE NUMBER 2
LENGTH OF CUT 0.2850"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 2.159mm
BRAND Kyocera SGS
CORNER RADIUS 0.01"
CUTTING SIZE .0950"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Radius
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Cast Iron, Hardened Steel, Aluminum, Copper
MPN 08586
Kyocera SGS Catalogs

Kyocera SGS Micro End Mill with corner radius

  • Small corner end radius for strength and speed when milling
  • 2 flute design ideal for applications that require slotting or heavy chip loads
  • Sub micron grade carbide designed for micro tool applications
  • Mirror finishes
  • 30° flute helix
  • 2 flute design for chip evacuation
  • USA made - KSPT ISO quality procedures

Applications

  • Steel
  • Stainless Steel
  • Cast Iron
  • Non-Ferrous Materials
  • High Temperature Alloys



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
