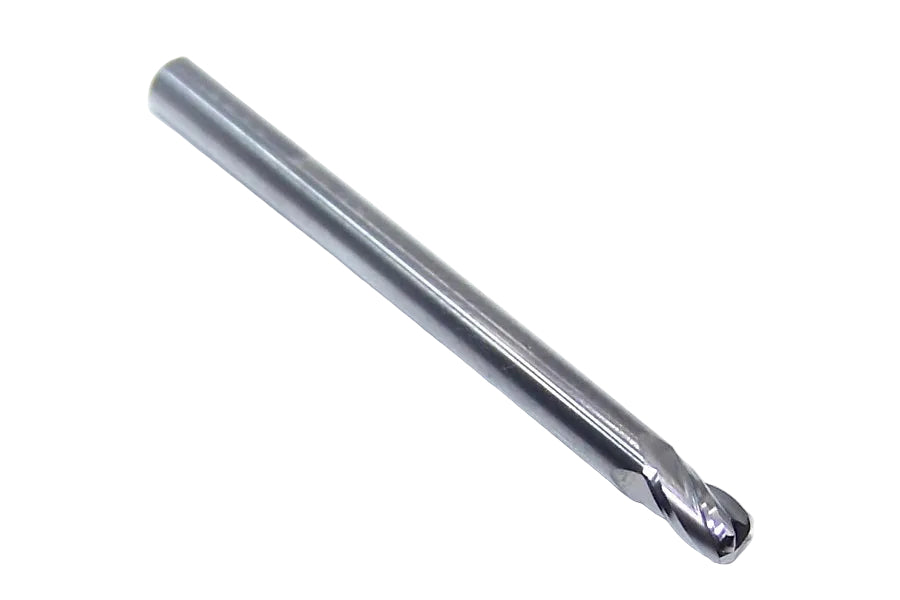

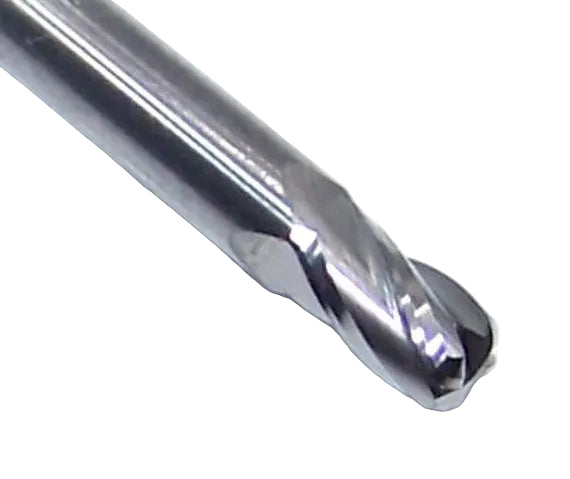

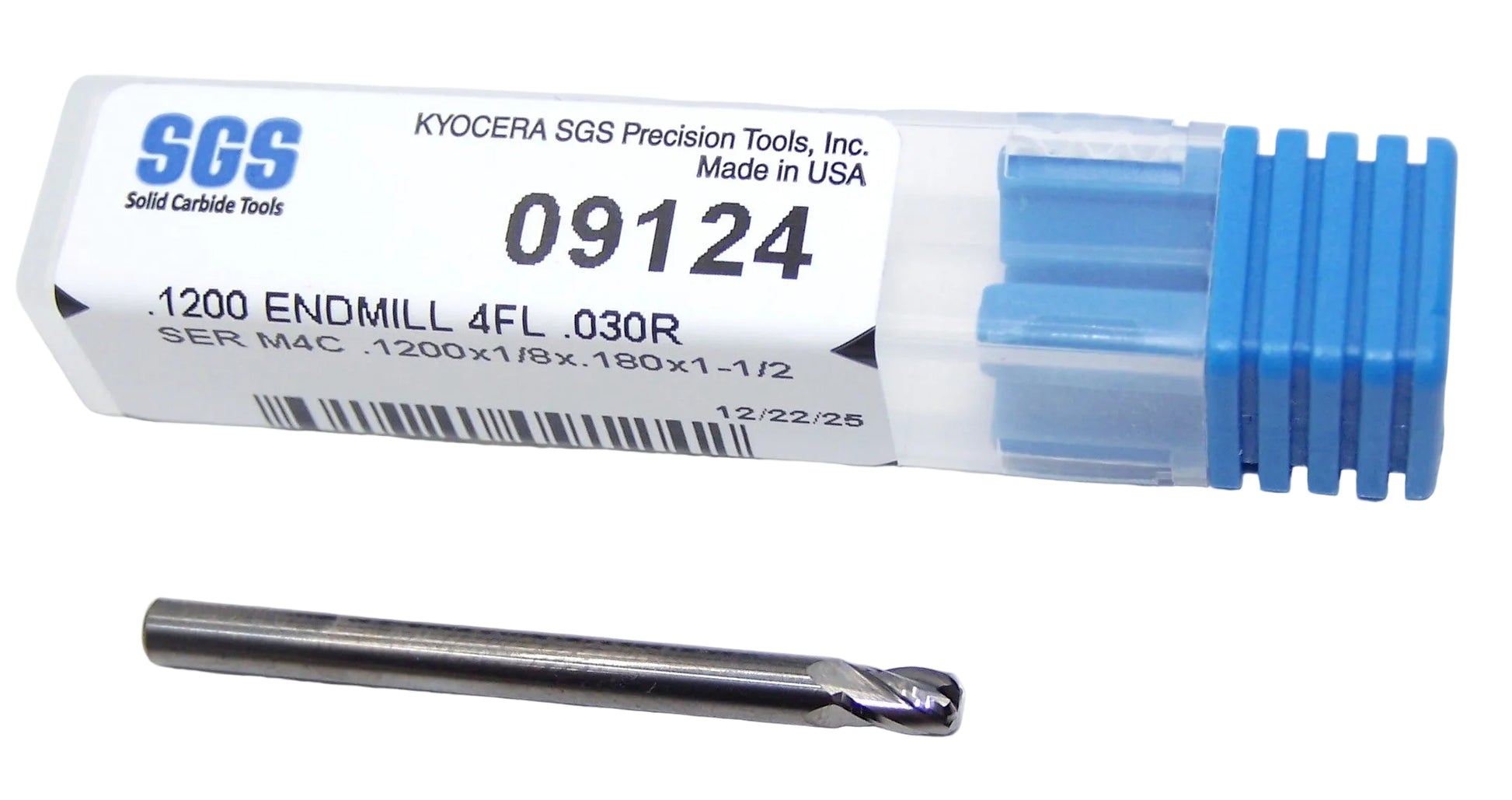

09124 Kyocera SGS .1200" Carbide 4 Flute End Mill .030" Radius 0.1200" Diameter .180" Flute 1.50" Length .125" Shank

09124 Kyocera SGS .1200" Carbide 4 Flute End Mill .030" Radius 0.1200" Diameter .180" Flute 1.50" Length .125" Shank

Part Number: 09124

SKU: 158030541984

Manufacturer: Kyocera SGS

$10.00 USD
$10.00 USD
Sale Sold out

Out of stock? Contact us to see if more are available!

Out of stock

PRODUCT STATS

DIAMETER 0.1200"
FLUTE NUMBER 4
LENGTH OF CUT 0.1800"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 0.1200"
BRAND Kyocera SGS
CORNER RADIUS 0.03"
CUTTING SIZE 0.1200"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Radius
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Copper, Plastic, Titanium, Steel, Stainless Steel
MPN 09124
USABLE LENGTH 0.18"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Authorized Kyocera SGS Distributor - let me know if you need something added to the website.

Specal Make by Kyocera SGS

The Kyocera SGS M4C series is a line of micro carbide end mills with a 4-flute radius end design, optimized for precision machining in small diameters. They balance chip evacuation, strength, and feed capability, making them ideal for micro‑finishing and high‑quality part production.

  • Available in very small sizes
  • 4 flute design
  • Radius end, center cutting
  • 30° flute helix for balanced cutting
  • 1/8" shank diameter across the series
  • Optimized for deep pocket and side milling

Applications

  • Aluminum (primary)
  • Plastic (primary
  • copper (primary)
  • light steel (primary)





The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
