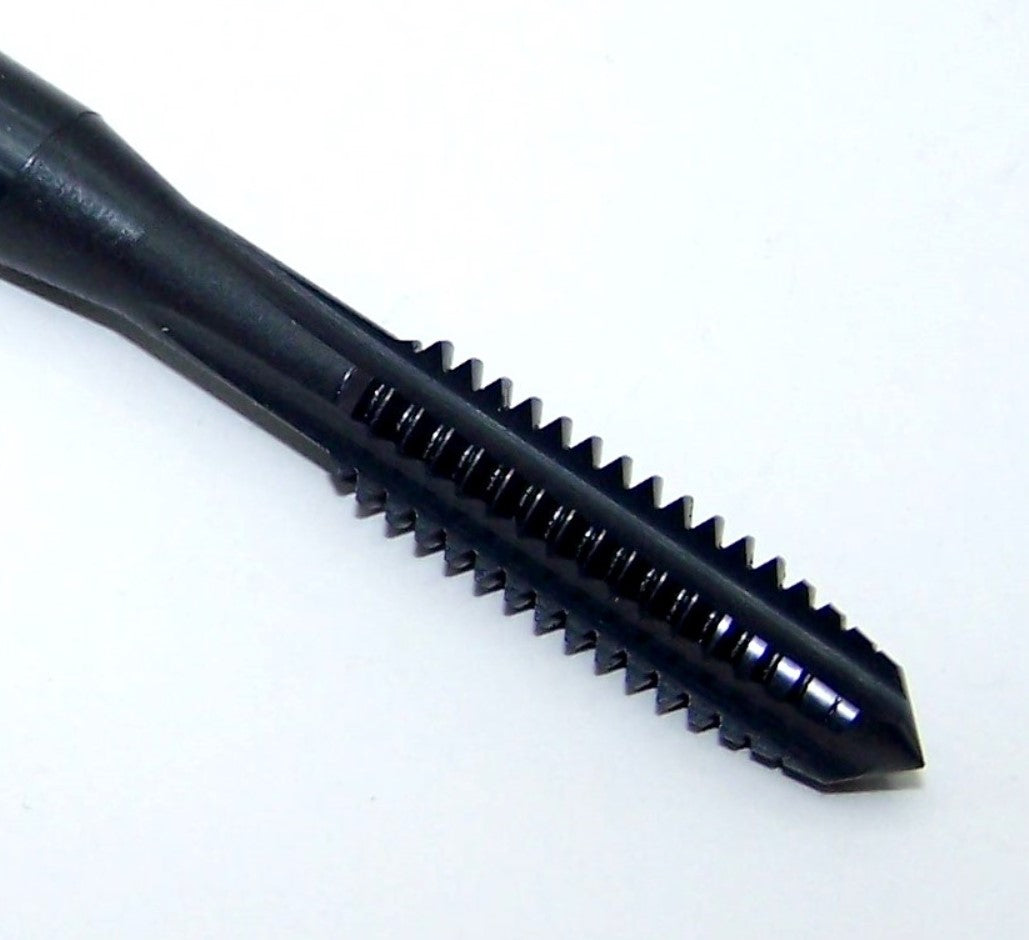

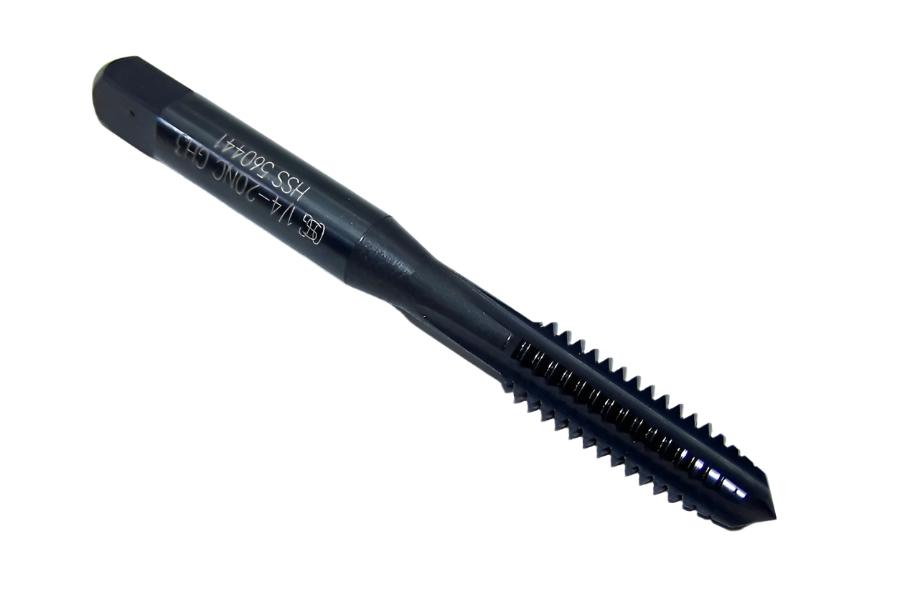

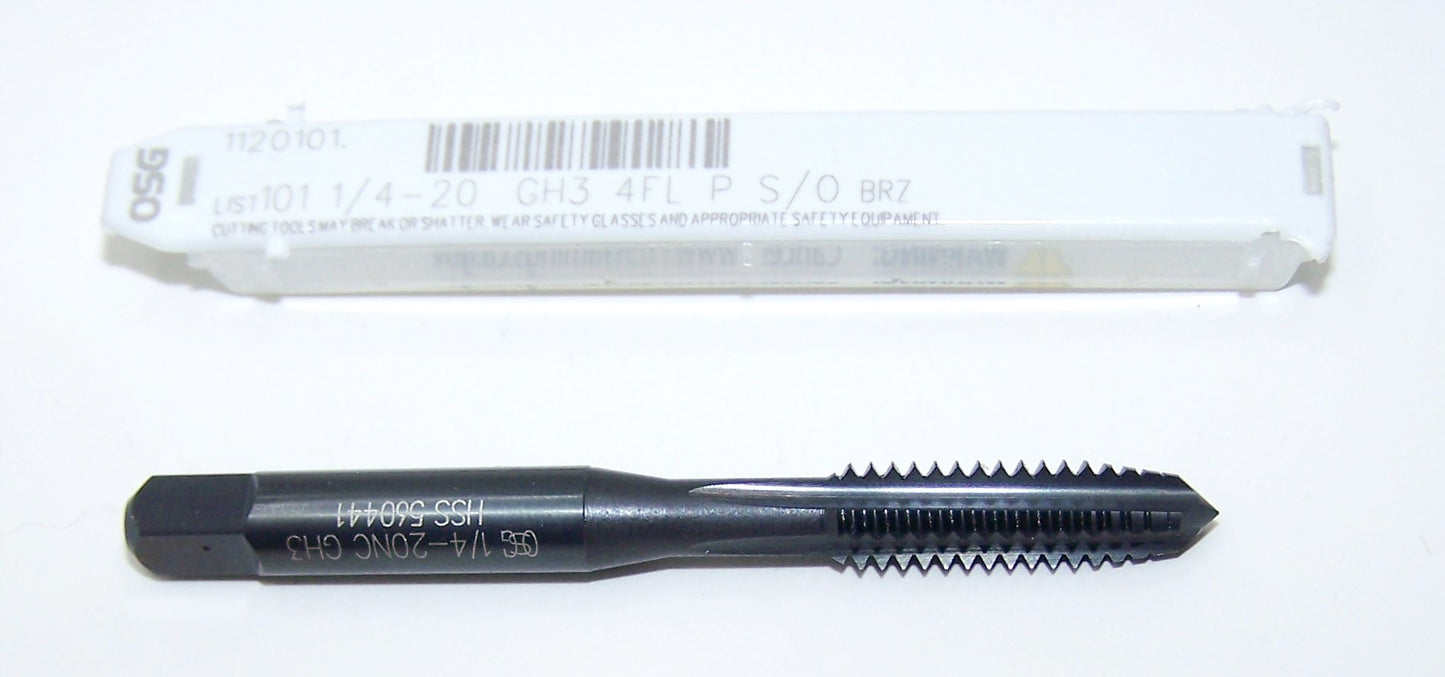

1120101 OSG 1/4-20 Plug Cut Tap 4 Flute H3 4P Steam Oxide General Purpose Tap

1120101 OSG 1/4-20 Plug Cut Tap 4 Flute H3 4P Steam Oxide General Purpose Tap

Part Number: 1120101

SKU: 387671575632

Manufacturer: OSG

Regular price $5.44 USD
Regular price Sale price $5.44 USD
Sale Sold out

Low stock: 7 left

PRODUCT STATS

TAP SIZE 1/4"
THREADS PER INCH 20
THREAD LIMIT H3
STI OR STANDARD Standard
BOTTOM OR PLUG Plug
FORM OR CUT Cutting
BRAND OSG
CHAMFER TYPE 4P
DIAMETER 0.2500"
END STYLE Drill Point
FINISH TYPE Steam Oxide
FLUTE NUMBER 4
LENGTH OF CUT 0.7480"
MATERIAL High Speed Steel
MATERIALS CUT Steel, Plastic, Aluminum, Cast Iron
MPN 1120101
OVERALL LENGTH 2.5"
SHANK SIZE 0.255"
SIZE 1/4"

OSG General Purpose Hand Tap - provides exceptional value for all general threading applications



  • Low cost - exceptional value
  • HSS substrate
  • Steam Oxide Surface for increased lubricity
  • Straight Flute for blind and through hole applications
  • Right Hand cutting direction

Applications

  • Good use for Carbon Steel
  • Good use for Aluminum
  • Good use for Cast Iron
