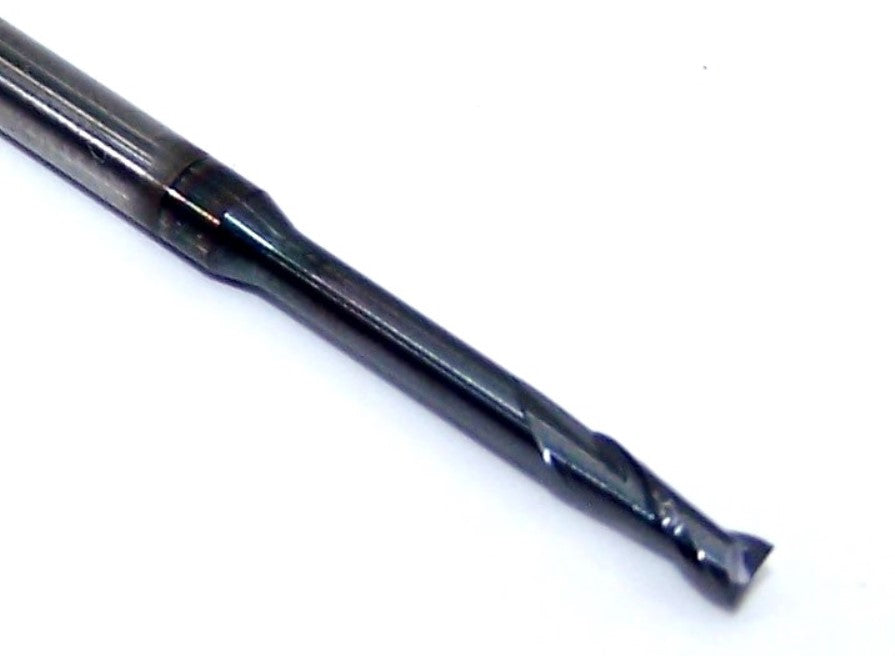

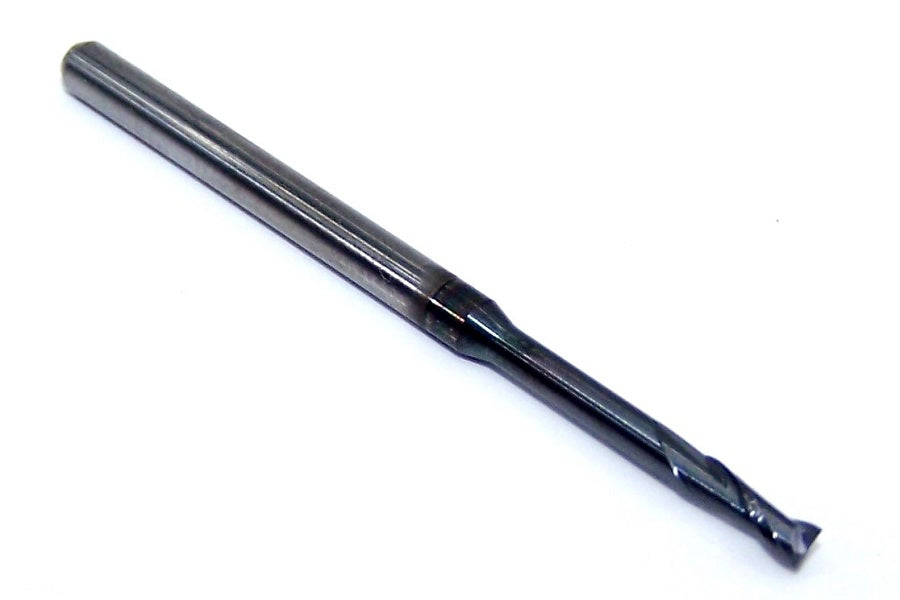

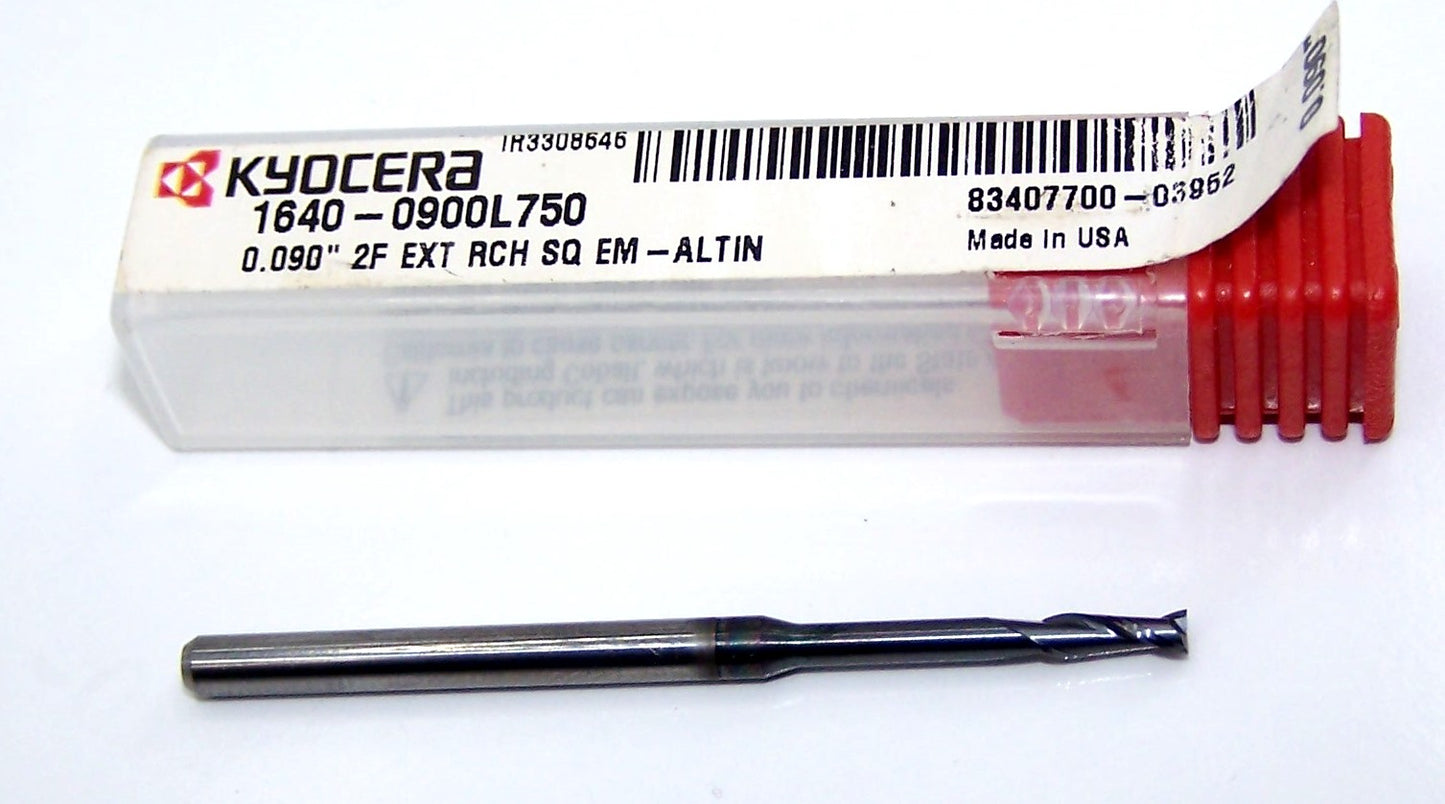

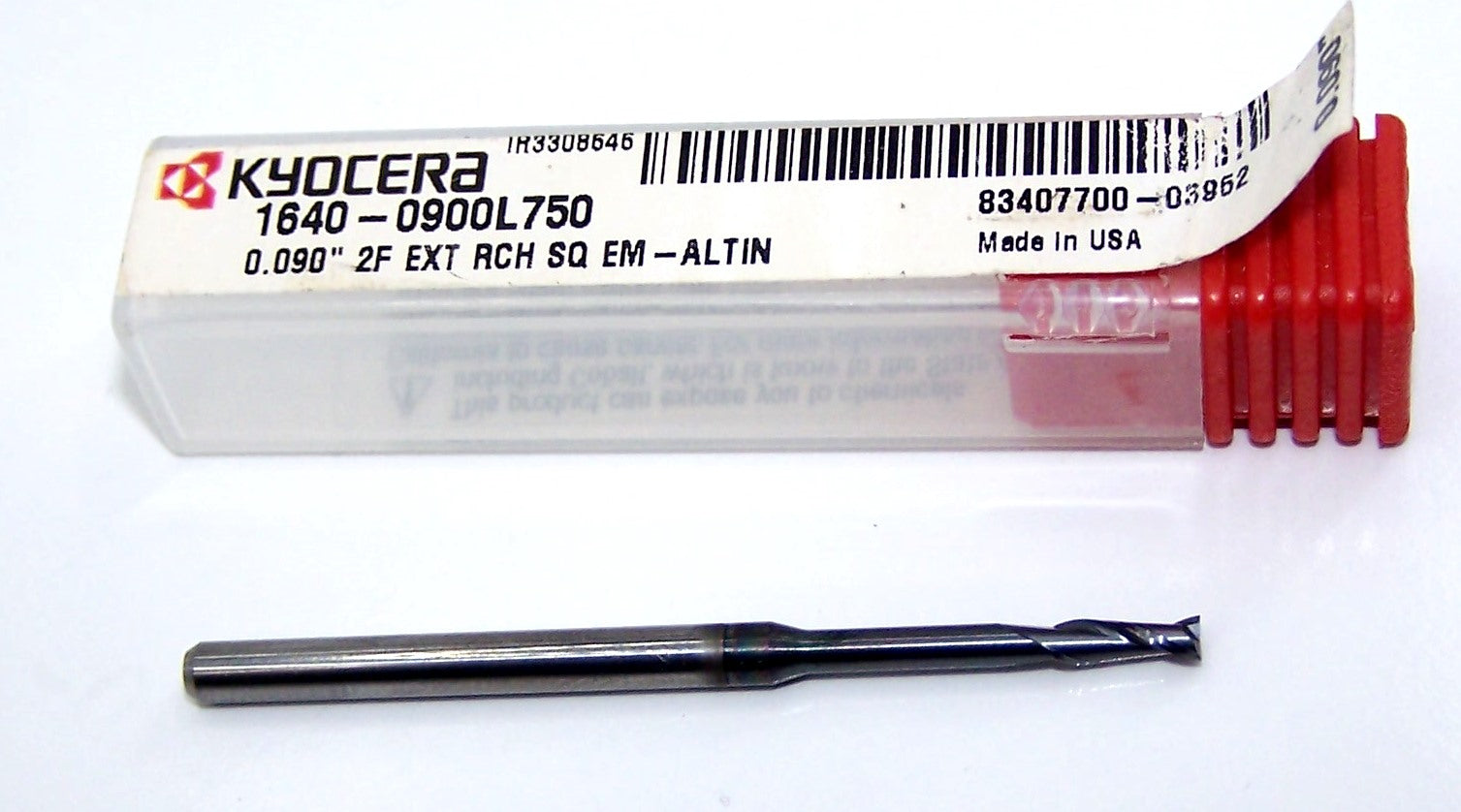

1640-0900L750 Kyocera .0900" Carbide 2 Flute End Mill Extended Reach SQ AlTiN Coated .0900" Diameter .270" Flute 2.00" Length .125" Shank .750" Reach

1640-0900L750 Kyocera .0900" Carbide 2 Flute End Mill Extended Reach SQ AlTiN Coated .0900" Diameter .270" Flute 2.00" Length .125" Shank .750" Reach

Part Number: 1640-9000L750

SKU: 387774857672

Manufacturer: Kyocera Microtools

$17.35 USD
$17.35 USD
Sale Sold out

38 in stock

PRODUCT STATS

DIAMETER 0.0900"
FLUTE NUMBER 2
LENGTH OF CUT 0.2700"
OVERALL LENGTH 2.0"
SHANK SIZE 0.125"
SIZE 2.29mm
BRAND Kyocera Microtools
CUTTING SIZE .0900"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Flat, Square
EXTENDED REACH 0.75"
FINISH TYPE ALTiN
FLUTE DIRECTION Right Hand
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Copper, Steel, Titanium, Stainless Steel
MPN 1640-9000L750
Click to download Speeds and Feeds PDF

Kyocera Microtools Extended Reach Solid Carbide 2 Flute End Mills

  • 2 Flute design for higher chip loads
  • Tool "necked back" behind the flute to provide a deeper reach, but with added strength over a full fluted tool
  • 30° Helix
  • Sub Micron Grain Carbide
  • Mirror Surface Finishes
  • Square end

Applications

  • Priority for steel when coated
  • Priority for hardened steel when coated
  • Priority for copper
  • Priority for Plastic
  • Applicable for stainless steel when coated
  • Applicable for cast iron when coated
  • Applicable for aluminum
  • Applicable for graphite
  • Applicable for titanium

The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
