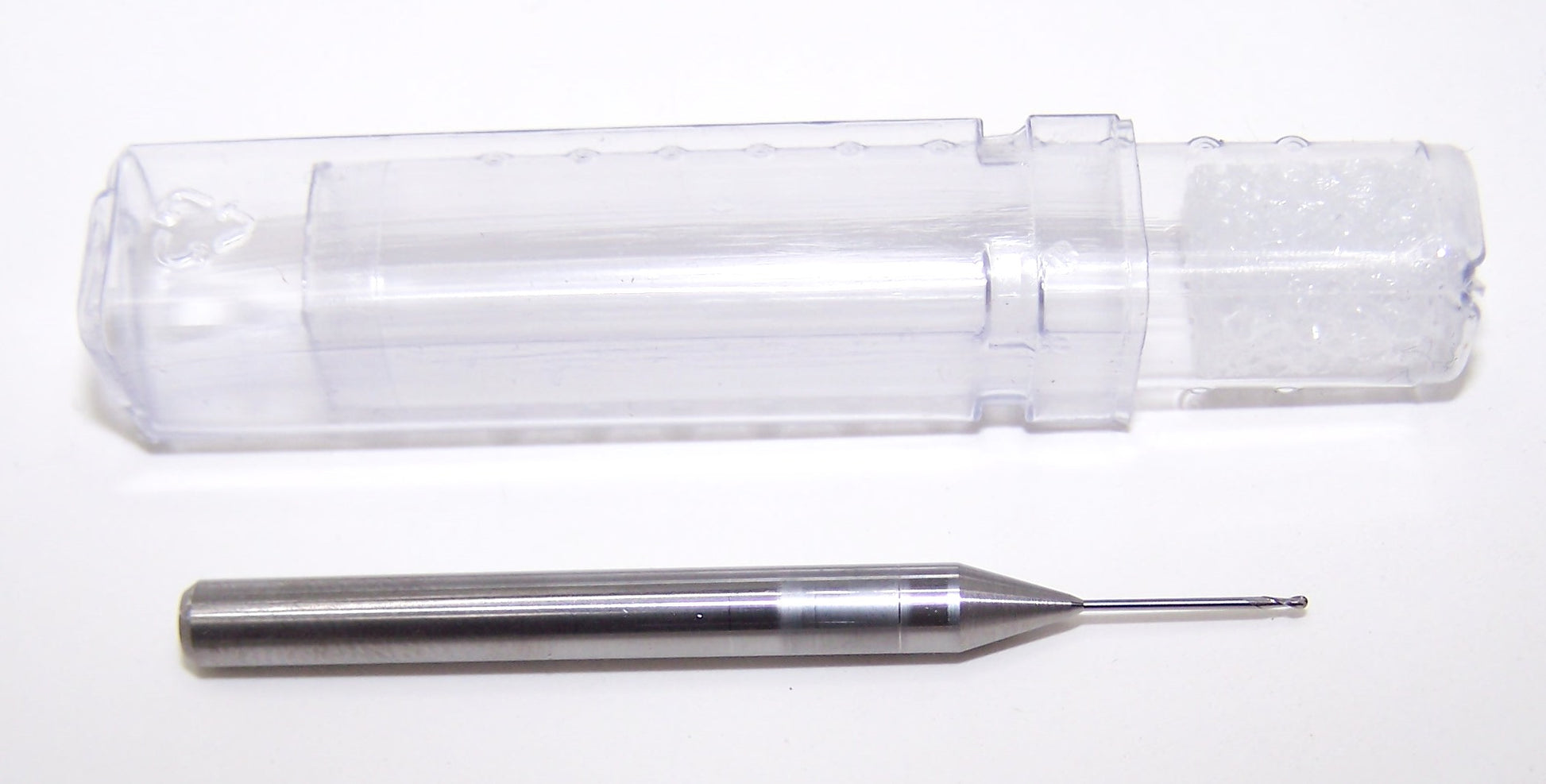

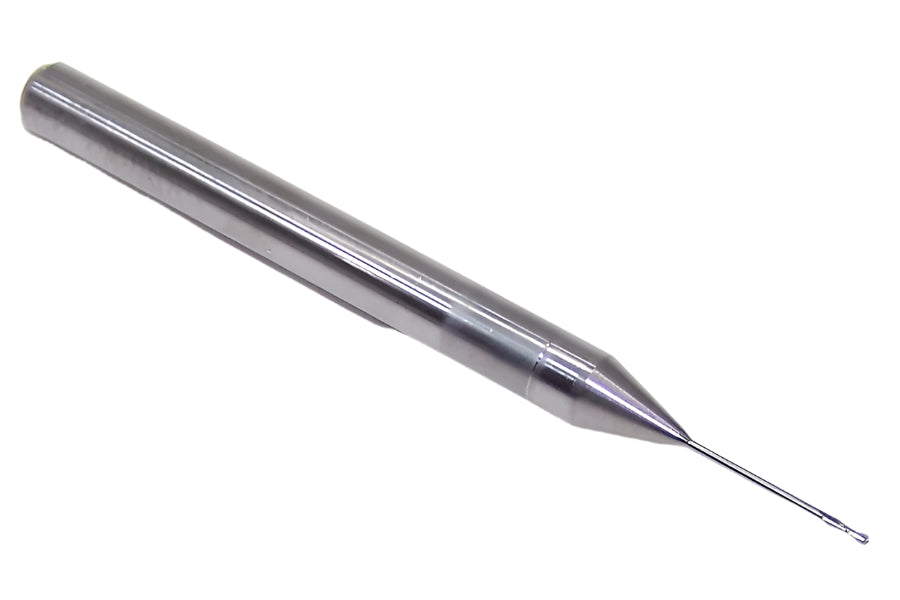

1645-0236.394BP Kyocera 0.60mm Carbide 2 Flute End Mill .590" Extend Reach Ball End .0236" Diameter .0590" Flute 2.00" Length .157" Shank

1645-0236.394BP Kyocera 0.60mm Carbide 2 Flute End Mill .590" Extend Reach Ball End .0236" Diameter .0590" Flute 2.00" Length .157" Shank

Part Number: 1645-0236.394BP

SKU: 387839757985

Manufacturer: Kyocera Microtools

$7.50 USD
$7.50 USD
Sale Sold out

200 in stock

PRODUCT STATS

DIAMETER 0.0236"
FLUTE NUMBER 2
LENGTH OF CUT 0.0591"
OVERALL LENGTH 2.0"
SHANK SIZE 0.157"
SIZE 0.60mm
BRAND Kyocera Microtools
CUT DIRECTION Up Cut
ENDS Single
END STYLE Ball Nose
EXTENDED REACH 0.590"
FINISH TYPE Special
FLUTE DIRECTION Right Hand
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Copper, Thermoset Plastic, High Density Plastic
MPN 1645-0236.394BP
Click to download Speeds and Feeds PDF

Extend Reach Carbide 2 Flute End Mill Ball End from Kyocera Microtools

  • Extended reach (LBS) for deep pocket milling
  • 2 Flute design for high chip loads
  • standard 30° flute helix

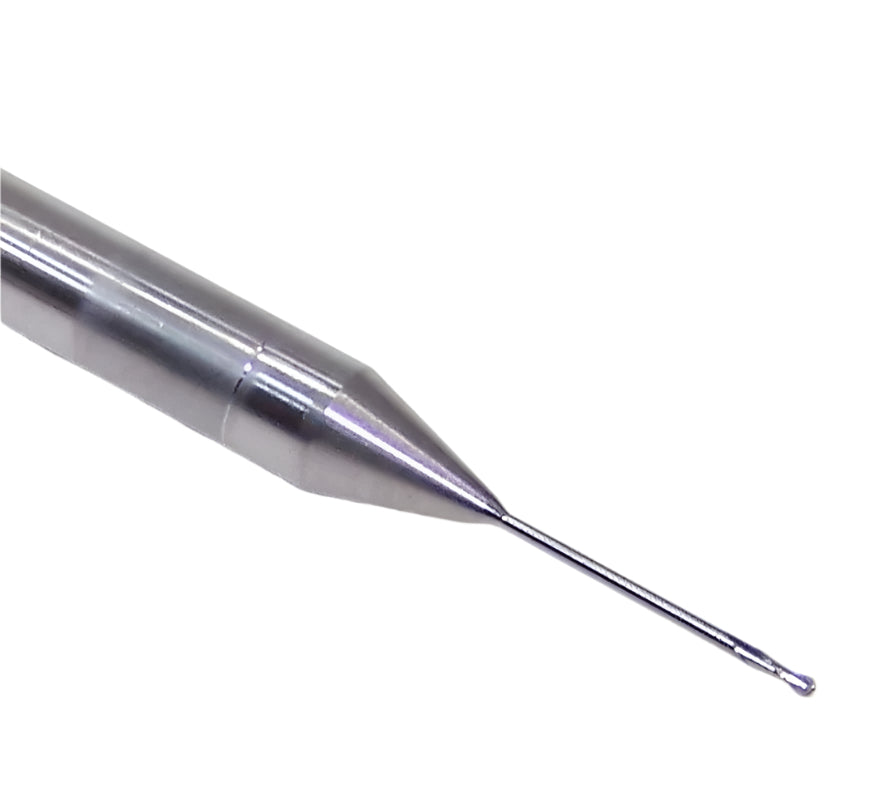

  • Ball end for surfacing and blending
  • Sub micron grain carbide
  • Mirror surface finished

Applications

  • Priority for steel when coated
  • Priority for hardened steel when coated
  • Priority for copper
  • Priority for plastic
  • Applicable for stainless steel  when coated
  • Applicable for cast iron when coated
  • Applicable for aluminum
  • Applicable for graphite
