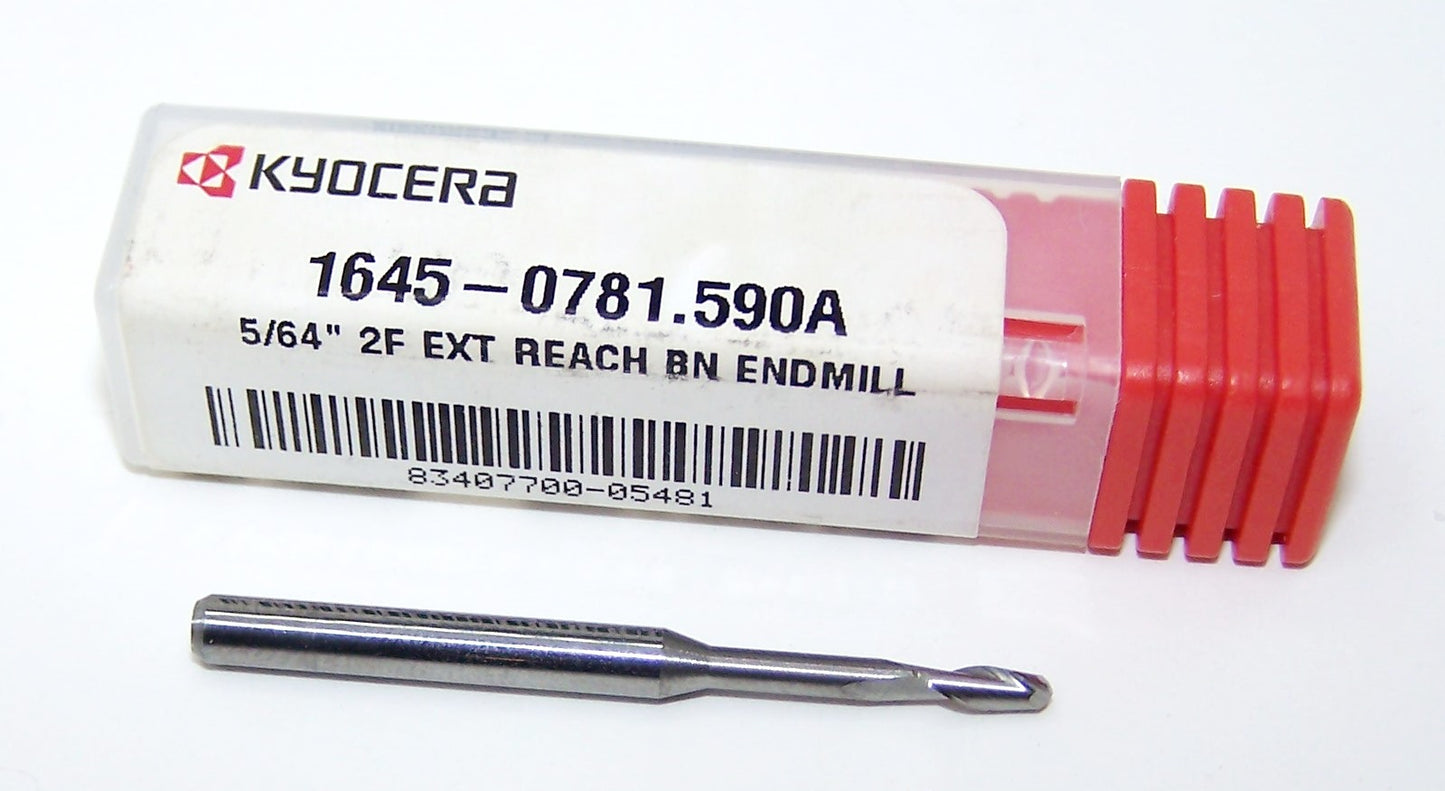

1645-0781.590A Kyocera 5/64" Carbide 2 Flute End Mill .590" Extend Reach Ball End .0938" Diameter .234" Flute 1.50" Length .125" Shank

1645-0781.590A Kyocera 5/64" Carbide 2 Flute End Mill .590" Extend Reach Ball End .0938" Diameter .234" Flute 1.50" Length .125" Shank

Part Number: 1645-0781.590

SKU: 156487714247

Manufacturer: Kyocera Microtools

$12.00 USD
$23.00 USD $12.00 USD
Sale Sold out

50 in stock

PRODUCT STATS

DIAMETER 0.0781"
FLUTE NUMBER 2
LENGTH OF CUT 0.2340"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 5/64"
BRAND Kyocera Microtools
CUTTING SIZE 5/64"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Ball Nose
EXTENDED REACH 0.59"
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Copper, Steel
MPN 1645-0781.590
Click to download Speeds and Feeds PDF

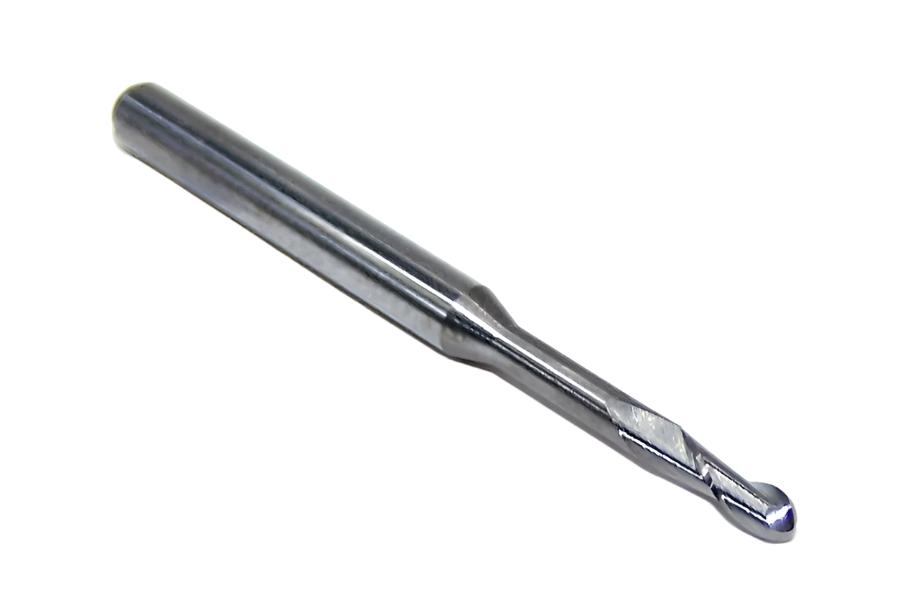

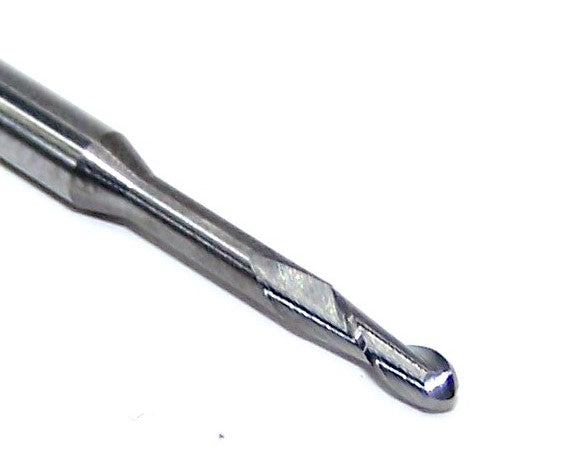

Extend Reach Carbide 2 Flute End Mill Ball End from Kyocera Microtools

  • Extended reach (LBS) for deep pocket milling
  • 2 Flute design for high chip loads
  • standard 30° flute helix
  • Ball end for surfacing and blending
  • Sub micron grain carbide
  • Mirror surface finished

Applications

  • Priority for steel when coated
  • Priority for hardened steel when coated
  • Priority for copper
  • Priority for plastic
  • Applicable for stainless steel  when coated
  • Applicable for cast iron when coated
  • Applicable for aluminum
  • Applicable for graphite



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
