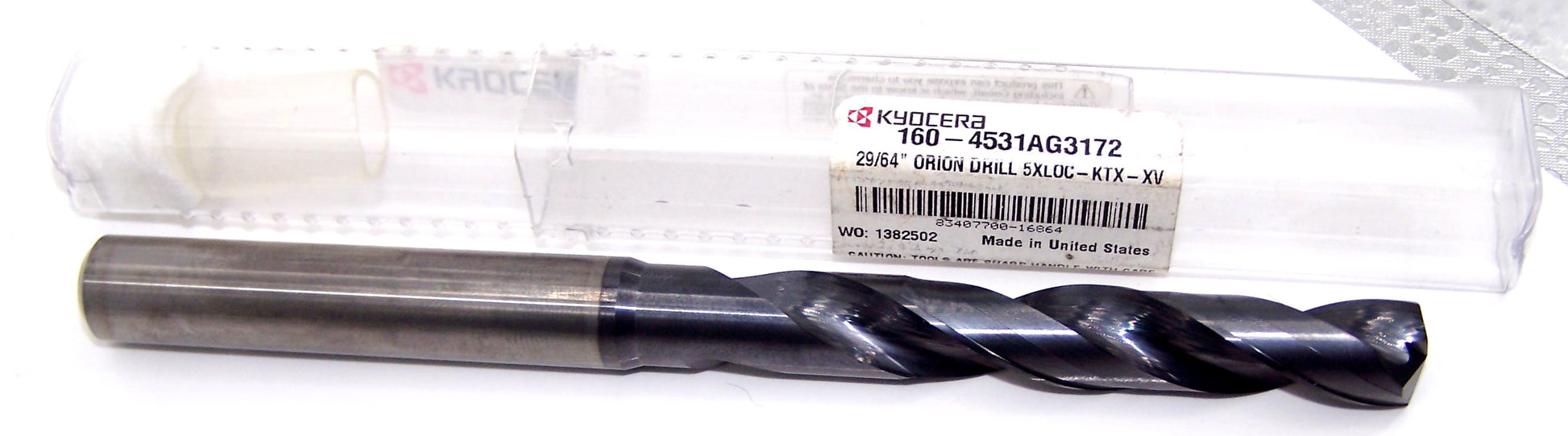

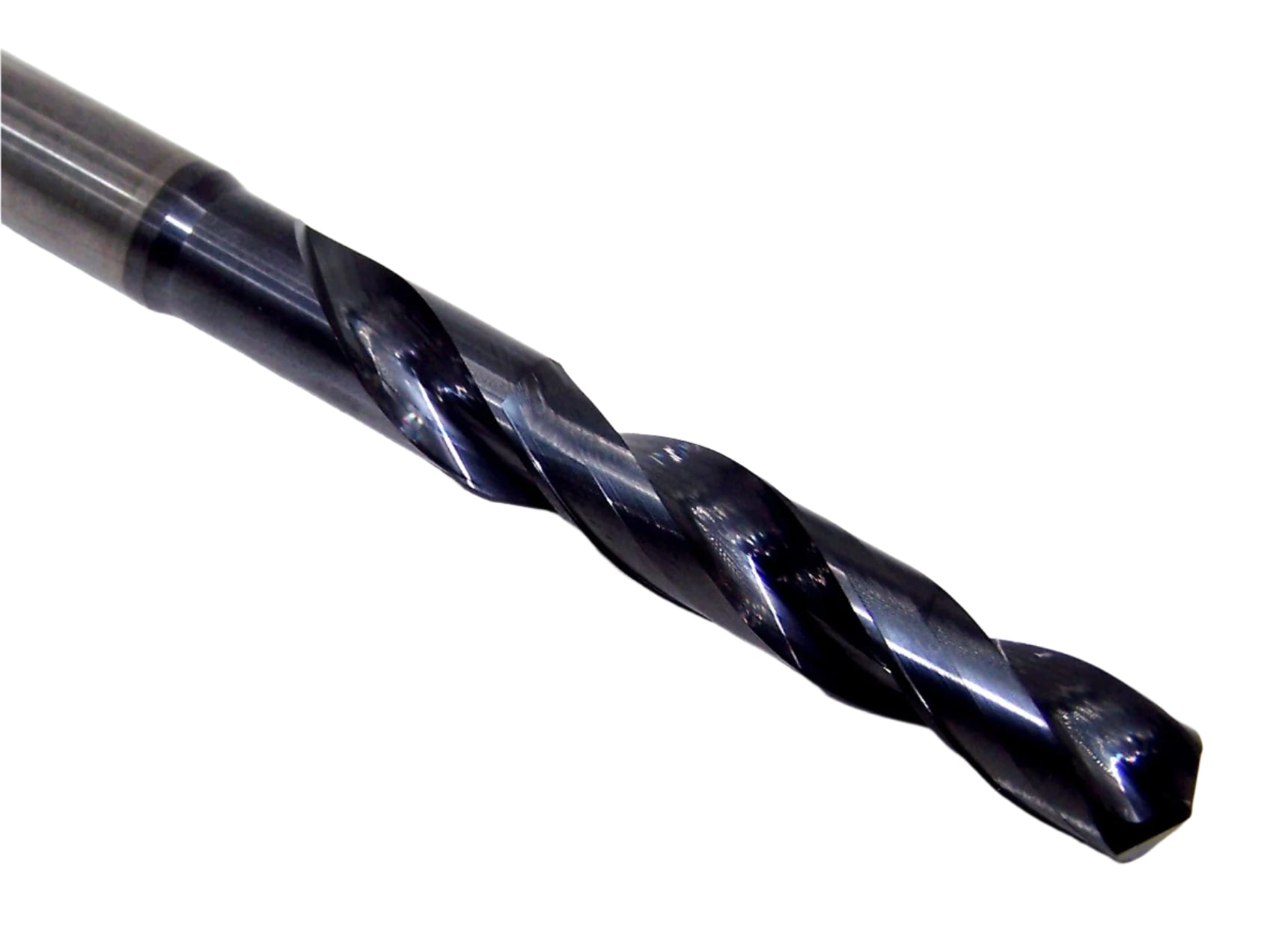

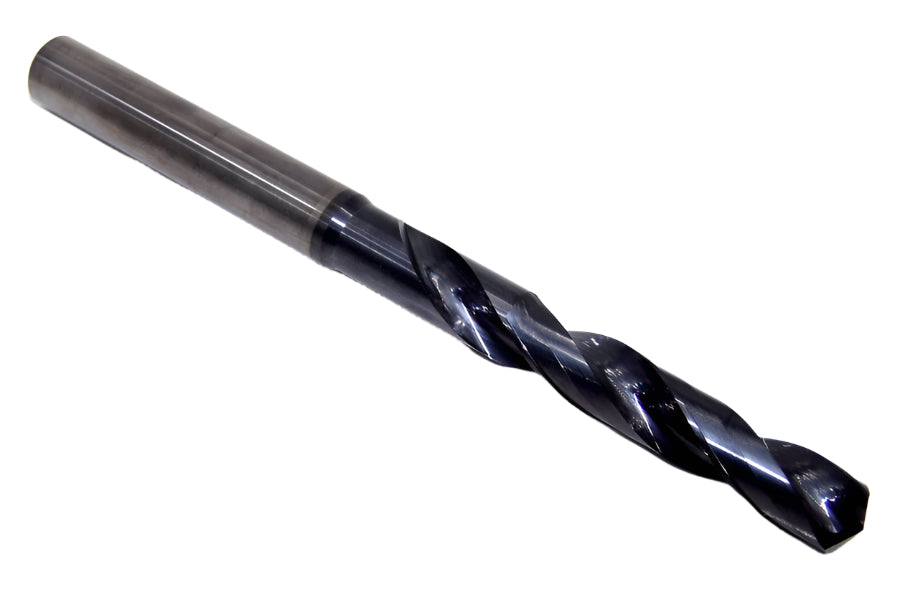

160-4531AG3172 Kyocera 29/64" Carbide 2 Flute Drill High Performance .4531" Diameter 3.172" Flute 6.00" Length .500" Shank 142° Point Coated External Coolant
160-4531AG3172 Kyocera 29/64" Carbide 2 Flute Drill High Performance .4531" Diameter 3.172" Flute 6.00" Length .500" Shank 142° Point Coated External Coolant
Part Number: 160-4531AG3172
SKU: 388435146097
Manufacturer: Kyocera Microtools
Regular price
$68.00 USD
Regular price
$104.80 USD
Sale price
$68.00 USD
Unit price
per
Low stock: 7 left
Couldn't load pickup availability
PRODUCT STATS
| DIAMETER | 0.4531" |
| FLUTE NUMBER | 2 |
| LENGTH OF CUT | 3.1720" |
| OVERALL LENGTH | 6.0" |
| SHANK SIZE | 0.5" |
| SIZE | 29/64" |
| BRAND | Kyocera Microtools |
| CUT DIRECTION | Up Cut |
| ENDS | Single |
| END STYLE | Drill Point |
| FINISH TYPE | ALTiN |
| FLUTE DIRECTION | Right Hand |
| INCLUDED POINT ANGLE | 142.0° |
| MATERIAL | Solid Carbide |
| MATERIALS CUT | Steel, Stainless Steel, Cast Iron, Aluminum, Copper, Hardened Steel, Titanium |
| MPN | 160-4531AG3172 |
| USABLE LENGTH | 2.266" |
MADE IN THE USA
Kyocera Orion High Performance Carbide Drills
- Solid Carbide High Performance Drills 3xD and 5xD
- Increased Positional Accuracy
- Less Heat Build Up
- External Coolant
- Micrograin Carbide
- 142° Point Angle
- Coated
Applications
- Primary for Steel
- Primary for Hardened Steel - UP to 68HRC
Primary for Stainless Steel
- Primary for Nickel Cobalt
- Primary for Titanium
- Secondary for Cast Iron
- Secondary for Graphite
- Secondary for Copper
- Secondary for Brass
- Secondary for Plastic
