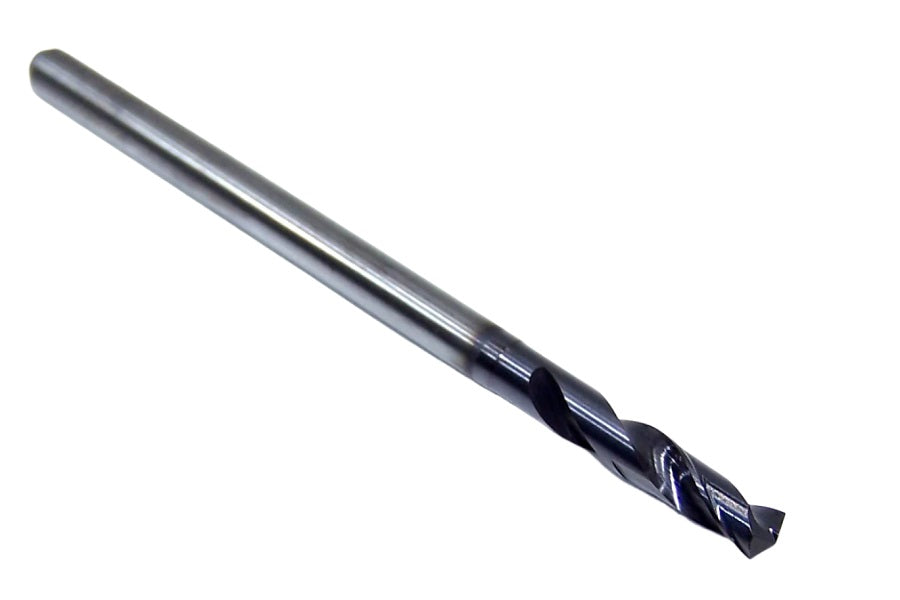

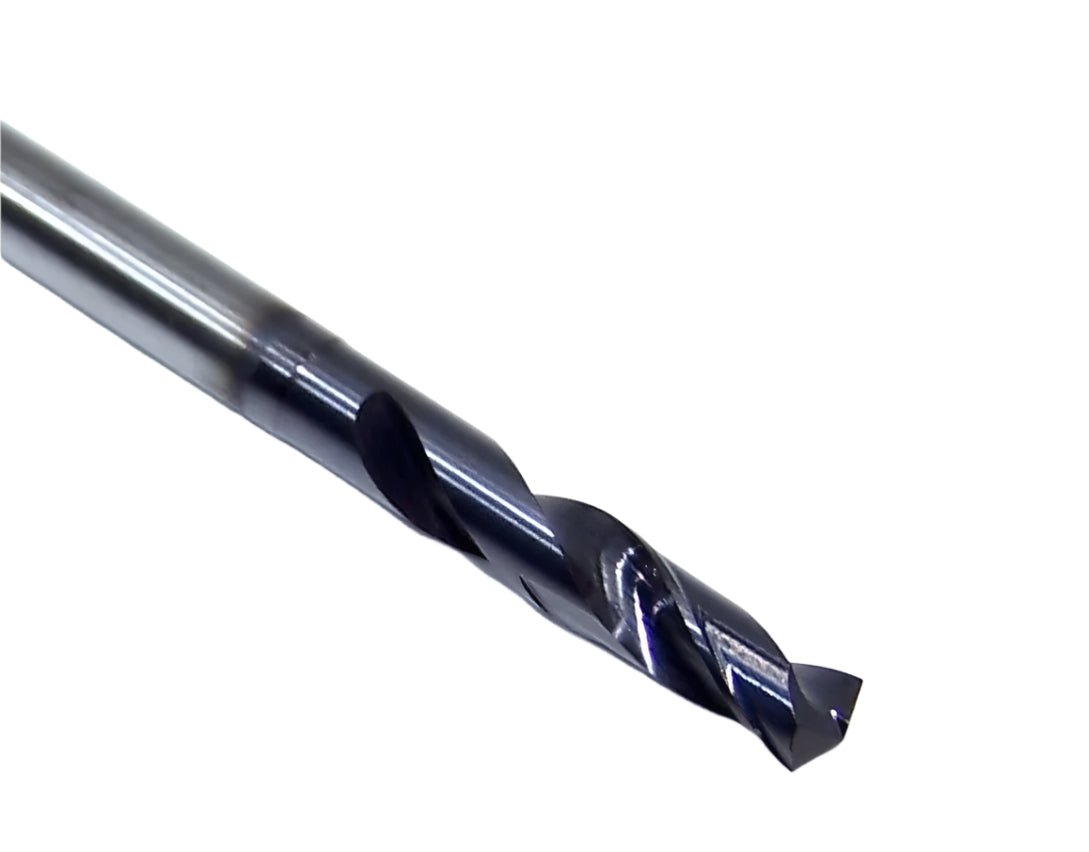

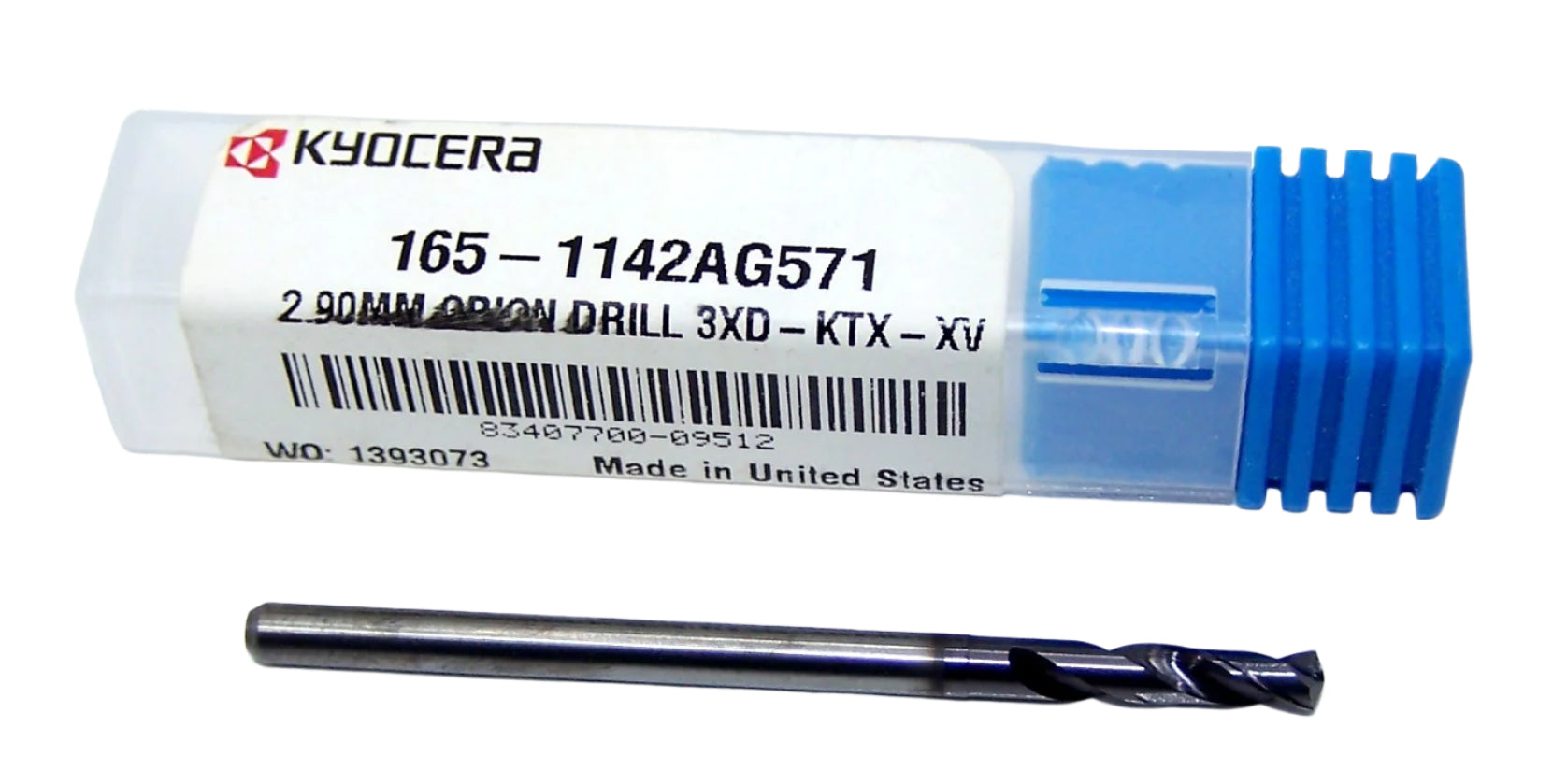

165-1142AG571 Kyocera 2.90mm Carbide 2F Drill High Performance .1142" Diameter .571" Flute 1.97" Length .1181" Shank Coated

165-1142AG571 Kyocera 2.90mm Carbide 2F Drill High Performance .1142" Diameter .571" Flute 1.97" Length .1181" Shank Coated

Part Number: 165-1142AG571

SKU: 388728170741

Manufacturer: Kyocera Microtools

$23.36 USD
$0.00 USD $23.36 USD
Sale Sold out

Low stock: 3 left

PRODUCT STATS

DIAMETER 0.1142"
FLUTE NUMBER 2
LENGTH OF CUT 0.5710"
OVERALL LENGTH 1.97"
SHANK SIZE 0.1181"
SIZE 2.90mm
BRAND Kyocera Microtools
CUT DIRECTION Up Cut
ENDS Single
END STYLE Drill Point
FLUTE DIRECTION Right Hand
FLUTE STYLE Spiral
INCLUDED POINT ANGLE 142.0°
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Cast Iron, Aluminum, Copper, Hardened Steel, Titanium
MPN 165-1142AG571
Click to download Speeds and Feeds PDF

Kyocera Orion High Performance Carbide Drills

  • Solid Carbide High Performance Drills 3xD and 5xD
  • Increased Positional Accuracy
  • Less Heat Build Up
  • External Coolant
  • Micrograin Carbide
  • 142° Point Angle
  • Coated

Applications

  • Primary for Steel
  • Primary for Hardened Steel - UP to 68HRC
  • Primary for Stainless Steel
  • Primary for Nickel Cobalt
  • Primary for Titanium
  • Secondary for Cast Iron
  • Secondary for Graphite
  • Secondary for Copper
  • Secondary for Brass
  • Secondary for Plastic
