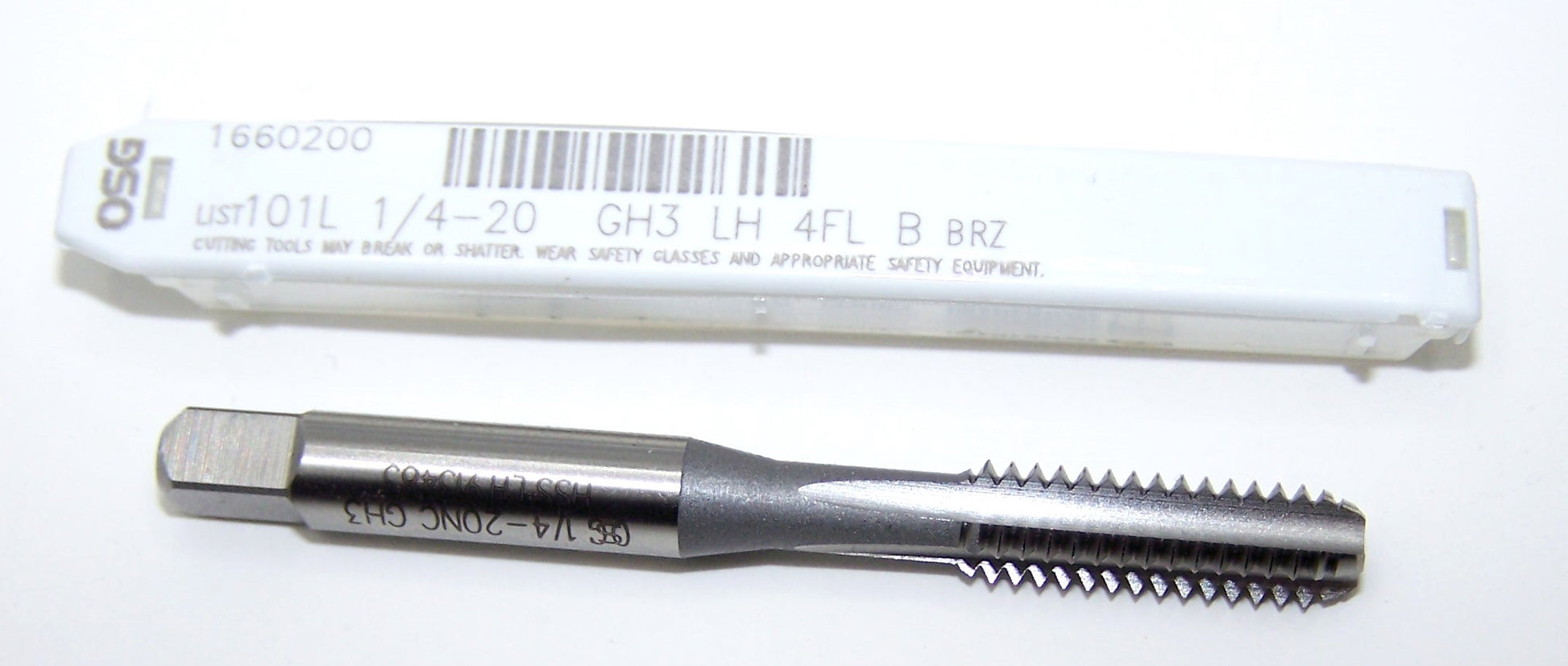

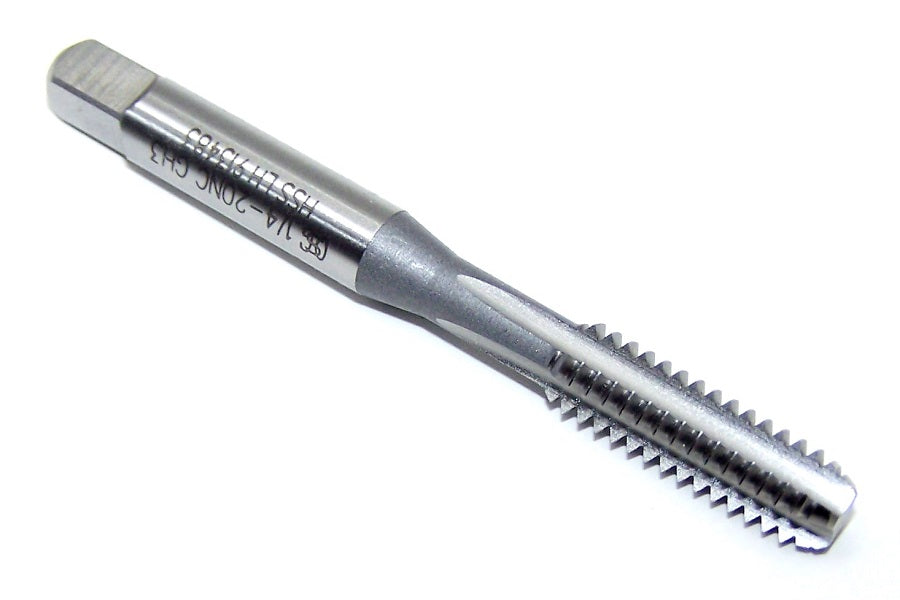

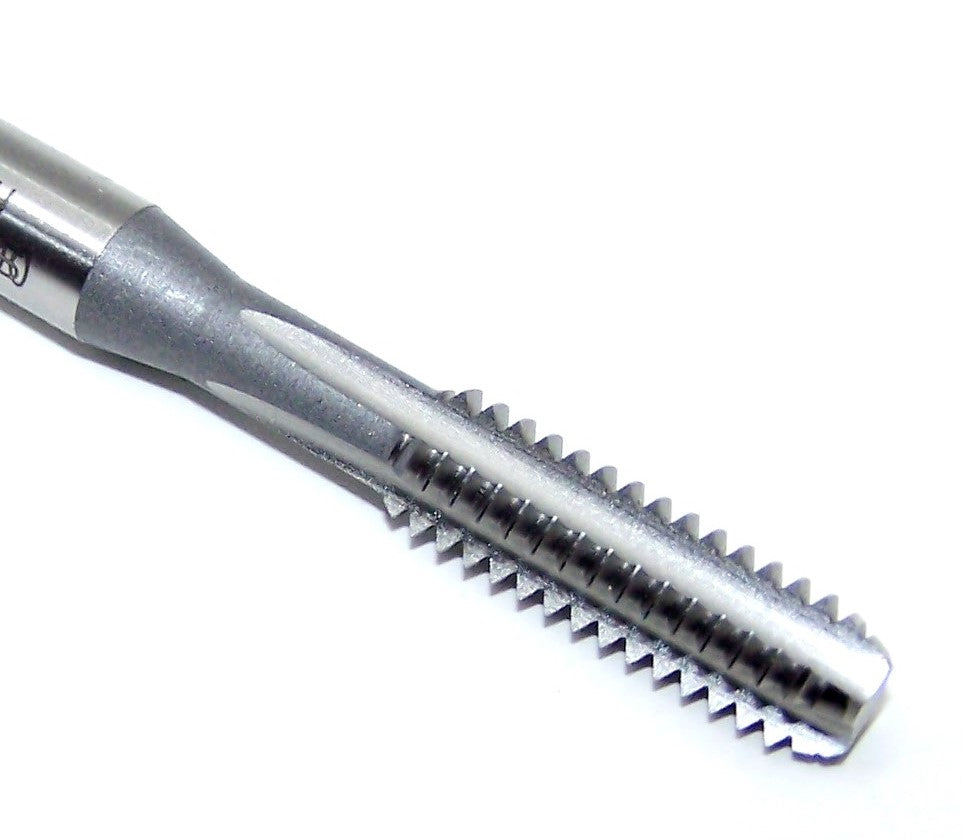

1660200 OSG 1/4-20 Left Hand Bottom Cut Tap 4 Flute H3 1.5P Bright General Purpose Tap

1660200 OSG 1/4-20 Left Hand Bottom Cut Tap 4 Flute H3 1.5P Bright General Purpose Tap

Part Number: 1660200

SKU: 384574198544

Manufacturer: OSG

$7.25 USD
$7.25 USD
Sale Sold out

Low stock: 2 left

PRODUCT STATS

TAP SIZE 1/4"
THREADS PER INCH 20
THREAD LIMIT H3
STI OR STANDARD Standard
BOTTOM OR PLUG Bottoming
FORM OR CUT Cutting
BRAND OSG
CHAMFER TYPE 1.5P"
DIAMETER 0.2500"
END STYLE Flat
FINISH TYPE Bright
FLUTE DIRECTION Left Hand
FLUTE NUMBER 4
LENGTH OF CUT 0.8540"
MATERIAL High Speed Steel
MATERIALS CUT Steel, Plastic, Aluminum, Cast Iron
MPN 1660200
OVERALL LENGTH 2.5"
SHANK SIZE 0.255"
SIZE 1/4"

OSG General Purpose Straight Flute Tap - Left Hand Cut - provides exceptional value for all general threading applications



  • Low cost - exceptional value
  • HSS substrate
  • Steam Oxide Surface for increased lubricity
  • Straight Flute for blind and through hole applications
  • Right Hand cutting direction

Applications

  • Good use for Carbon Steel
  • Good use for Aluminum
  • Good use for Cast Iron
