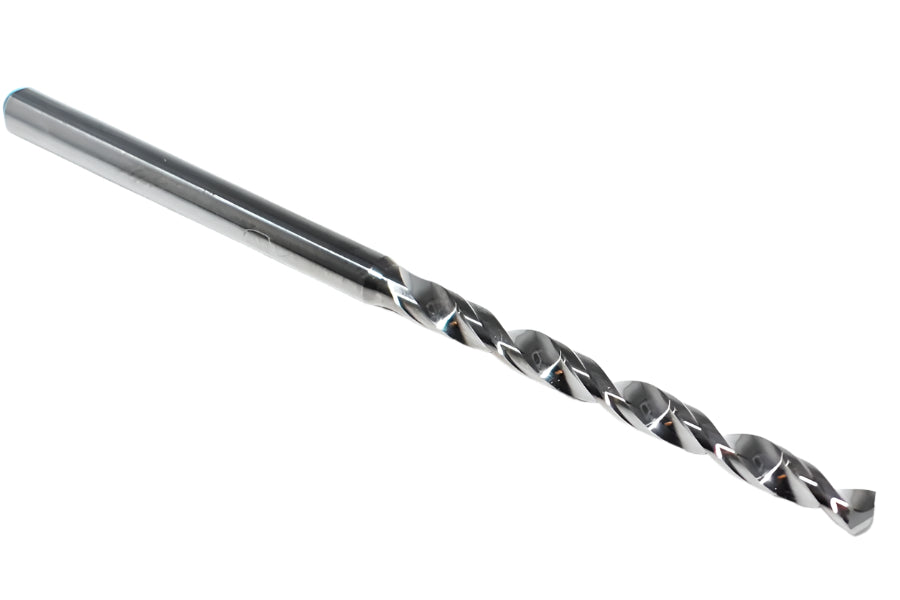

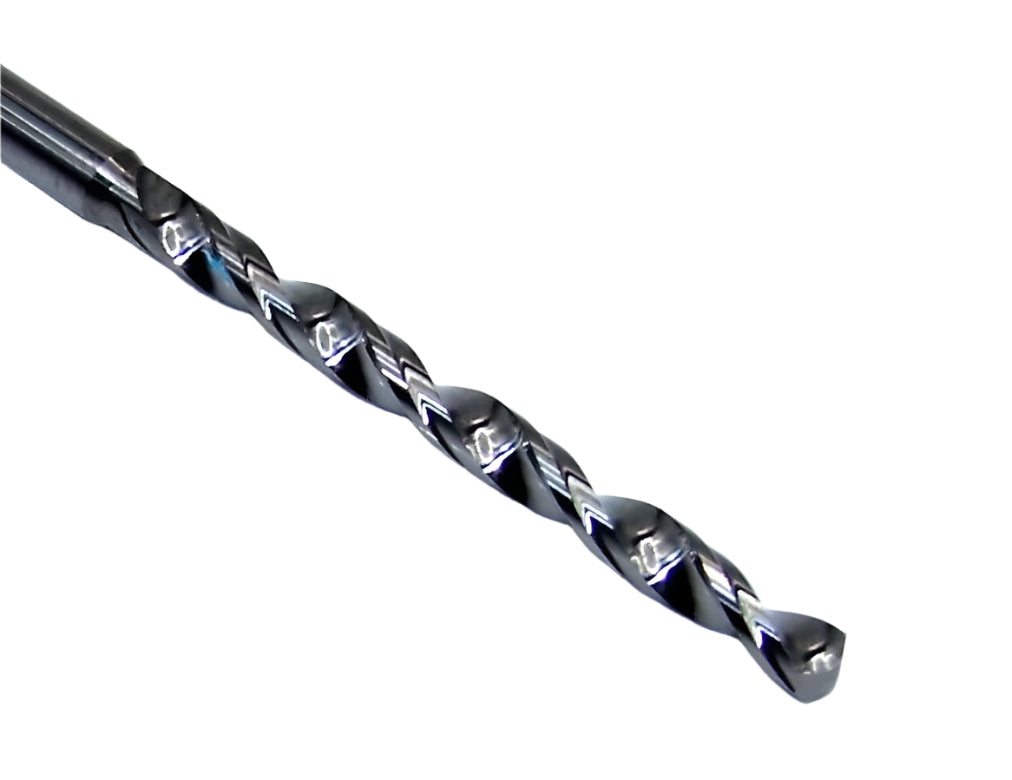

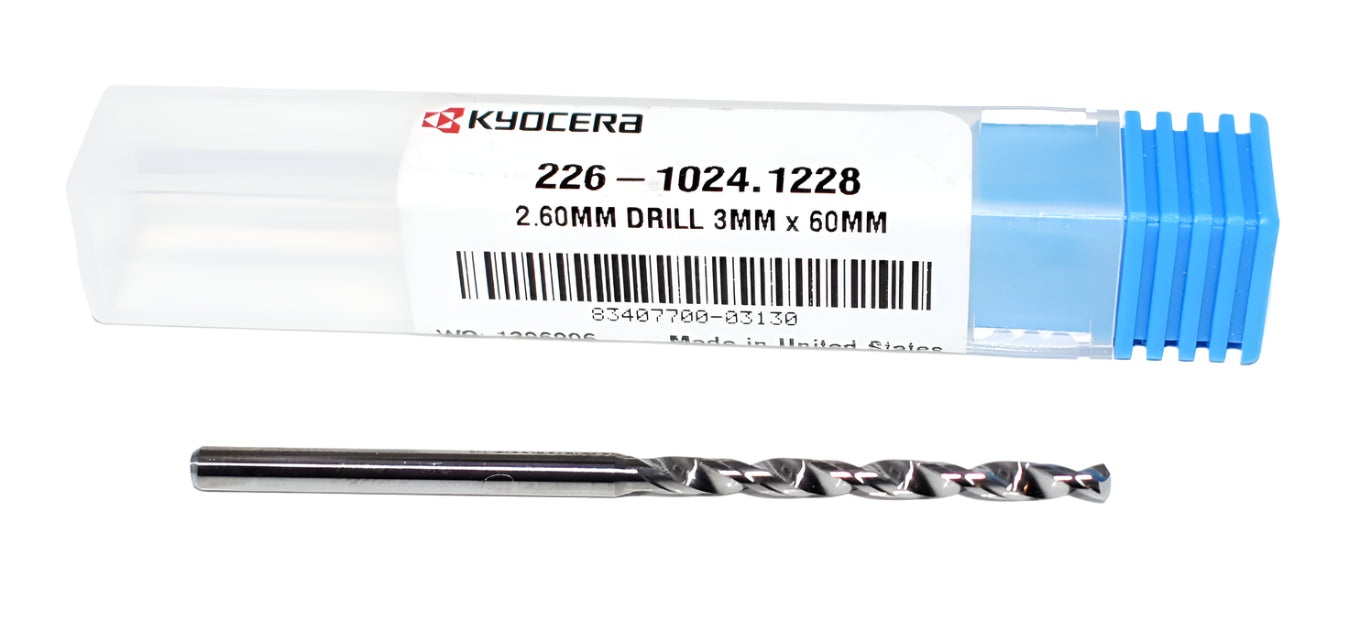

226-1024.1228 Kyocera 2.6mm Carbide Drill 2 FLUTE 0.1024" Diameter 1.228" Flute 2.362" Length 0.1181" Shank 130° Point

226-1024.1228 Kyocera 2.6mm Carbide Drill 2 FLUTE 0.1024" Diameter 1.228" Flute 2.362" Length 0.1181" Shank 130° Point

Part Number: 226-1024.1228

SKU: 386252025267

Manufacturer: Kyocera Microtools

$10.92 USD
$10.92 USD
Sale Sold out

49 in stock

PRODUCT STATS

DIAMETER 0.1024"
FLUTE NUMBER 2
LENGTH OF CUT 1.2280"
OVERALL LENGTH 2.3622"
SHANK SIZE 0.1181"
SIZE 2.6mm
BRAND Kyocera Microtools
CUT DIRECTION Up Cut
ENDS Single
END STYLE Drill Point
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
FLUTE STYLE Spiral
INCLUDED POINT ANGLE 130.0°
MATERIAL Solid Carbide
MATERIALS CUT Cast Iron, Graphite, Copper, Carbon Fiber Reinforced Polymer, Plastic, Thermoset Plastic, High Density Plastic, Titanium, Aluminum, Wood
MPN 226-1024.1228
WORK DIRECTION Right Hand
Click to download Speeds and Feeds PDF

Kyocera Microtools Carbide drills - 3.00mm shank - Micro Drills

  • Sub Micron Grain Carbide
  • Mirror Surface Finishes
  • 130° included point angle
  • 2 Flute design
  • 4 facet point geometry

Applications

  • Priority application for steel when coated
  • Priority application for hardened steel when coated
  • Priority application for copper
  • Priority application for plastic
  • Applicable for Cast Iron
  • Applicable for Aluminum
  • Applicable for Graphite
  • Applicable for Nickel Cobalt when coated
  • Applicable for titanium
