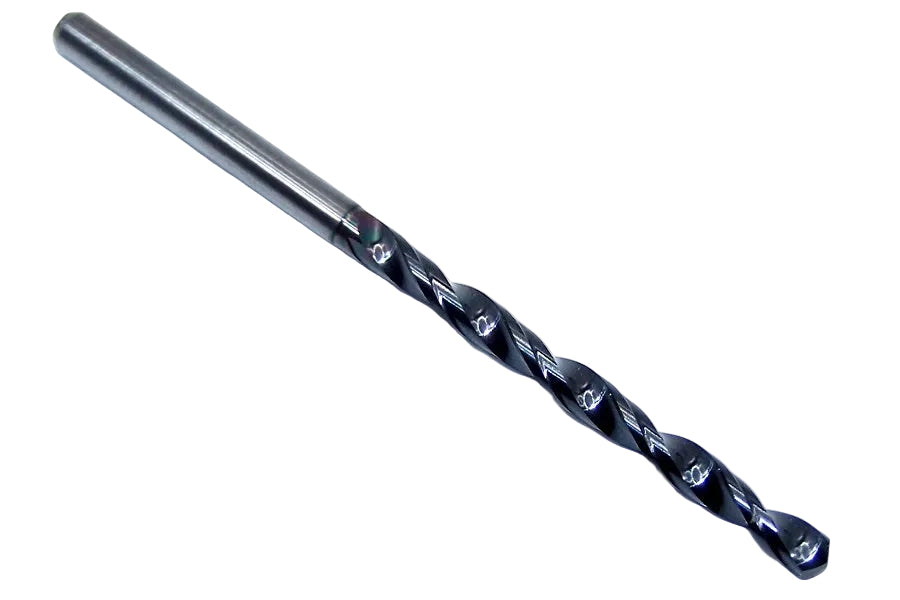

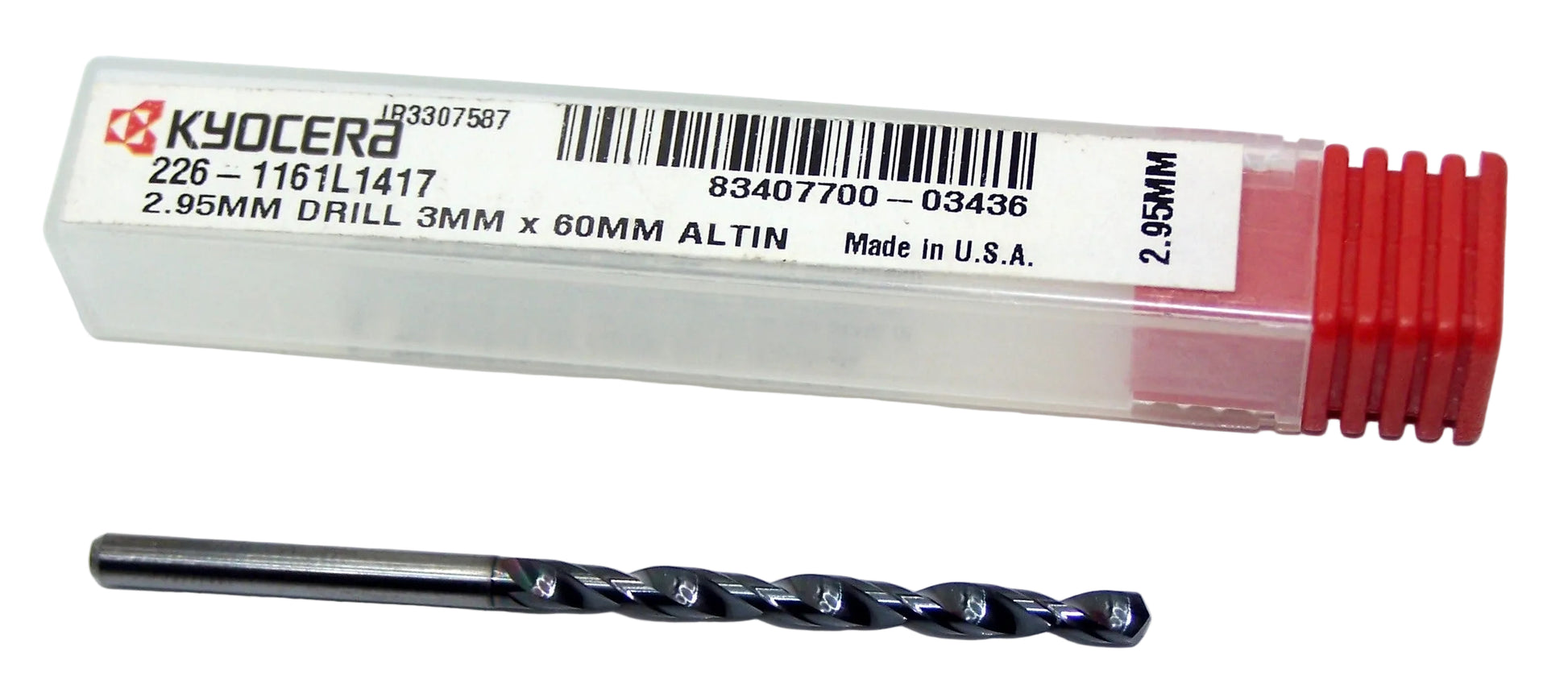

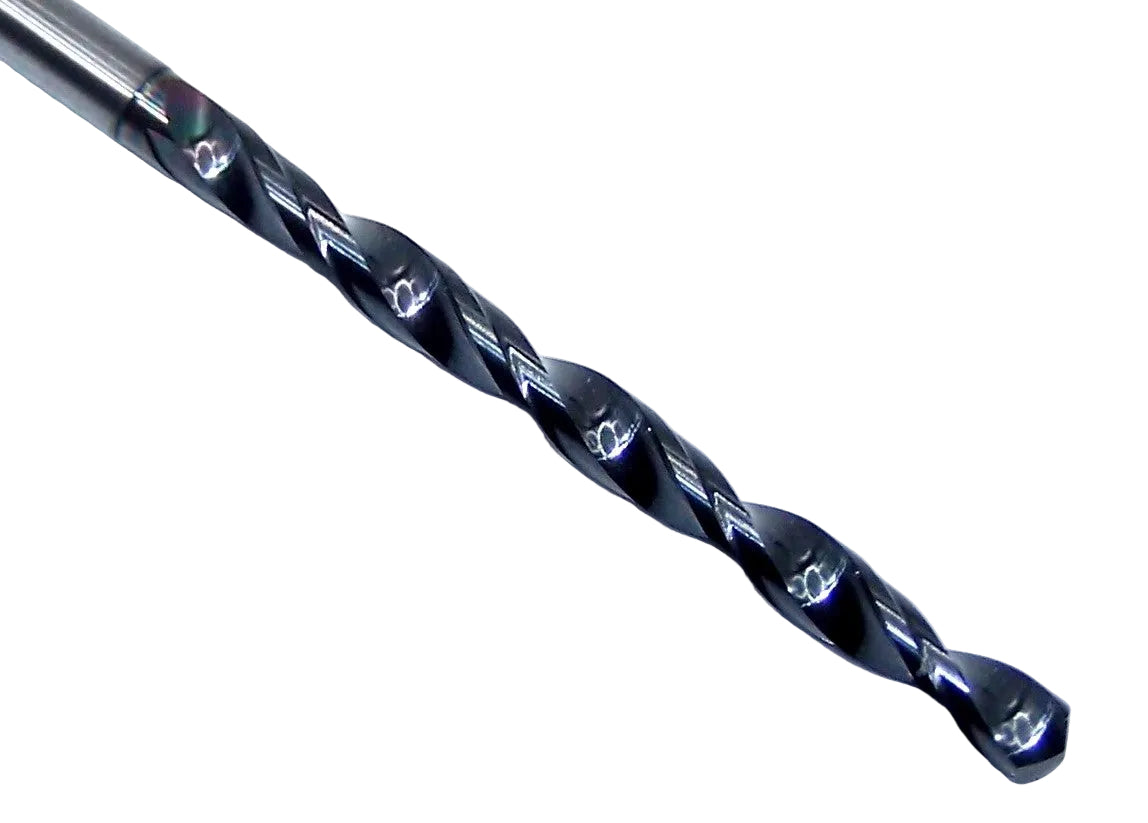

226-1161L1417 Kyocera 2.95mm Carbide Drill 2 FLUTE ALTiN Coated 0.1161" Diameter 0.1417" Flute 2.3622" Length 0.1181" Shank 130° Point

226-1161L1417 Kyocera 2.95mm Carbide Drill 2 FLUTE ALTiN Coated 0.1161" Diameter 0.1417" Flute 2.3622" Length 0.1181" Shank 130° Point

Part Number: 226-1161L1417

SKU: 800514737490

Manufacturer: Kyocera Microtools

$13.15 USD
$13.15 USD
Sale Sold out

Out of stock? Contact us to see if more are available!

Out of stock

PRODUCT STATS

DIAMETER 0.1161"
FLUTE NUMBER 2
LENGTH OF CUT 0.1417"
OVERALL LENGTH 2.3622"
SHANK SIZE 0.1181"
SIZE 2.95mm
BRAND Kyocera Microtools
CUTTING SIZE 2.95mm
CUT DIRECTION Up Cut
ENDS Single
END STYLE Drill Point
FINISH TYPE ALTiN
FLUTE DIRECTION Right Hand
FLUTE STYLE Spiral
INCLUDED POINT ANGLE 130.0°
MATERIAL Solid Carbide
MATERIALS CUT Steel, Hardened Steel, Stainless Steel, Cast Iron, Graphite, Copper, Carbon Fiber Reinforced Polymer, Plastic, Thermoset Plastic, High Density Plastic, Cobalt, Nickel, Titanium
MPN 226-1161L1417
USABLE LENGTH 0.1417"
WORK DIRECTION Right Hand
Click to download Speeds and Feeds PDF

Kyocera Microtools Carbide drills - 3.00mm shank - Micro Drills

  • Sub Micron Grain Carbide
  • Mirror Surface Finishes
  • 130° included point angle
  • 2 Flute design
  • 4 facet point geometry

Applications

  • Priority application for steel when coated
  • Priority application for hardened steel when coated
  • Priority application for copper
  • Priority application for plastic
  • Applicable for Cast Iron
  • Applicable for Aluminum
  • Applicable for Graphite
  • Applicable for Nickel Cobalt when coated
  • Applicable for titanium
