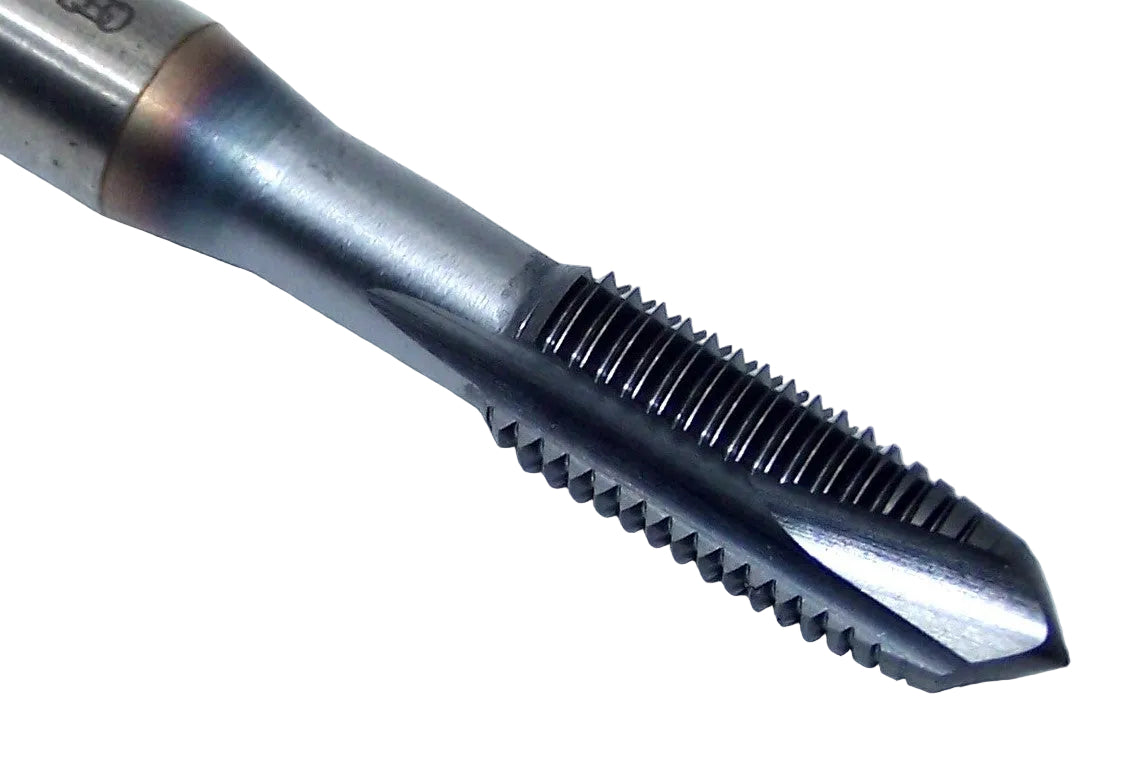

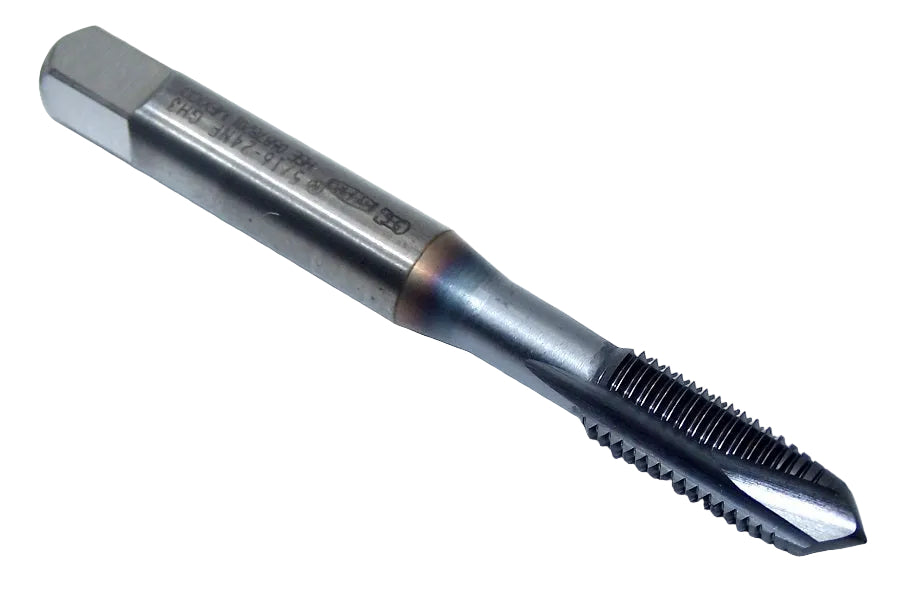

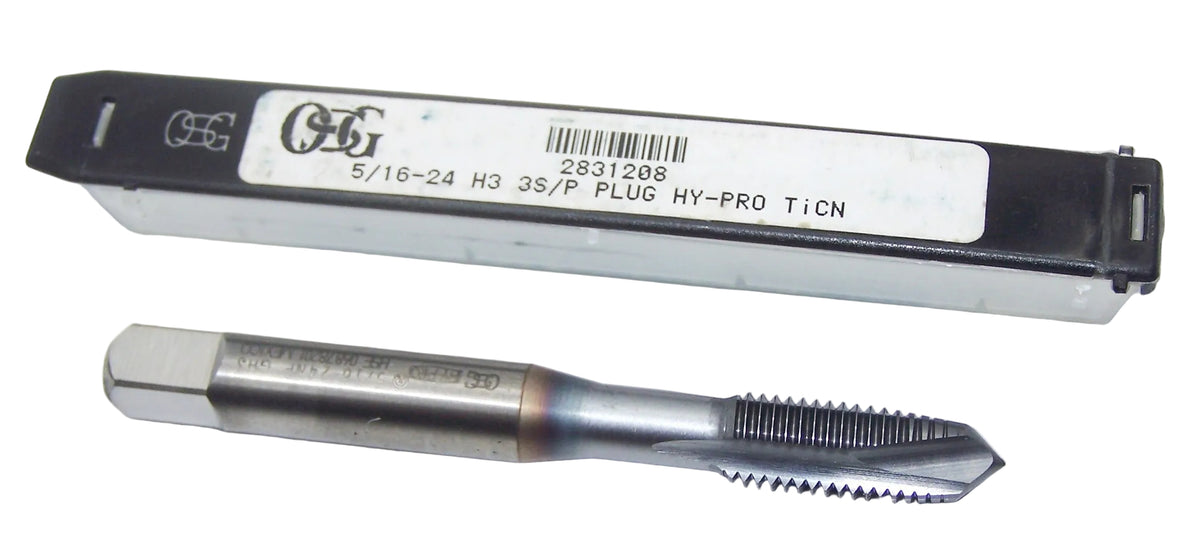

2831208 OSG 5/16-24 Plug Cut Tap 3 Flute H3 4P TiCN Coated HY-PRO Spiral Point
2831208 OSG 5/16-24 Plug Cut Tap 3 Flute H3 4P TiCN Coated HY-PRO Spiral Point
Part Number: 2831208
SKU: 960080921882
Manufacturer: OSG
Out of stock? Contact us to see if more are available!
Out of stock
Couldn't load pickup availability
PRODUCT STATS
| TAP SIZE | 5/16" |
| THREADS PER INCH | 24 |
| THREAD LIMIT | H3 |
| STI OR STANDARD | Standard |
| BOTTOM OR PLUG | Plug |
| FORM OR CUT | Cutting |
| BRAND | OSG |
| CHAMFER TYPE | 4P |
| DIAMETER | 0.3125" |
| END STYLE | Drill Point |
| FINISH TYPE | TiCN |
| FLUTE NUMBER | 3 |
| LENGTH OF CUT | 0.6570" |
| MATERIAL | High Speed Steel |
| MATERIALS CUT | Steel, Stainless Steel, Hardened Steel |
| MPN | 2831208 |
| OVERALL LENGTH | 2.719" |
| SHANK SIZE | 0.318" |
| SIZE | 5/16" |
| USABLE LENGTH | 0.657" |
OSG List 280 – HY-PRO® Spiral Point (POT) Taps
OSG List 280 HY-PRO® POT taps are high-performance, general-purpose spiral point taps designed for tapping through-hole applications across a broad range of materials. Built with premium HSSE (Vanadium High-Speed Steel), these taps drive chips ahead of the cutting action to prevent clogging and tool breakage, delivering excellent wear resistance and clean, accurate threads.
Key Features & Benefits
- Spiral Point (POT) Design: Pushes chips forward through the hole during tapping, minimizing chip packing and reducing torque requirements.
- Premium HSSE Substrate: High-vanadium high-speed steel construction offers superior toughness, heat resistance, and long tool life in tough machining environments.
- Versatile "Do-It-All" Performance: Excels in carbon steel, alloy steel, stainless steel, cast iron, non-ferrous metals, and general engineering materials.
- Through-Hole Optimization: Designed specifically for efficient high-speed threading in through-hole setups.
Available Finishes: Offered in Bright/Uncoated, Steam Oxide (S/O) for improved lubricity, and TiCN coated options for extended wear life.
Specifications
| Feature | Specification |
| Brand / Manufacturer | OSG |
| Series / List Number | List 280 (HY-PRO® POT) |
| Tap Style | Spiral Point (POT) |
| Substrate | Premium HSSE (Vanadium High-Speed Steel) |
| Hole Type | Through-Hole |
| Chamfer Type | Plug Chamfer (3.5P - 4.5P) |
| Cutting Direction | Right Hand |
| Applicable Materials | Carbon & Alloy Steels, Stainless Steel, Cast Iron, Non-Ferrous Metals |
Why Choose OSG HY-PRO® 280 Taps?
Known as the original "Do-It-All" spiral point tap, the OSG List 280 line brings reliable tool life, consistent thread pitch diameter control, and versatility to short runs, production work, and CNC machining setups
