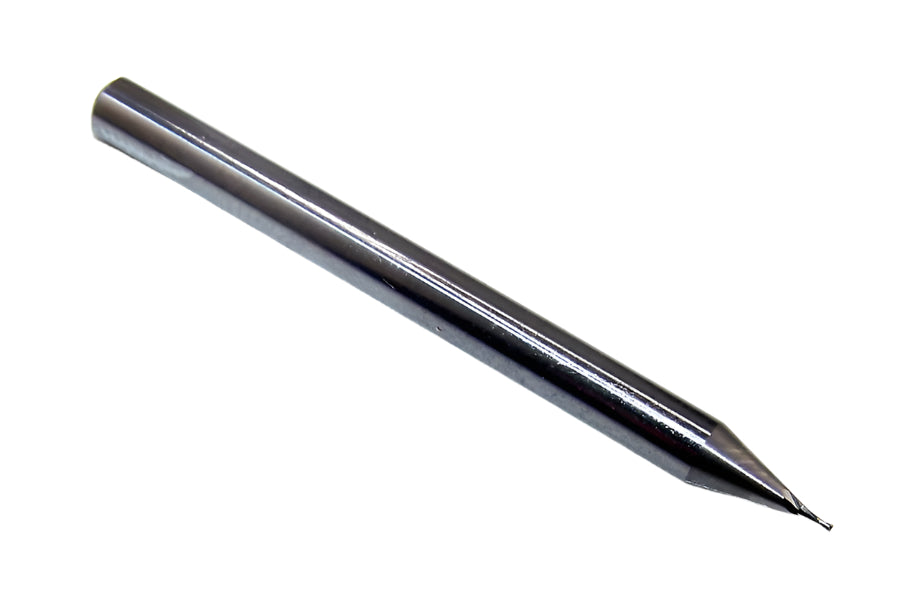

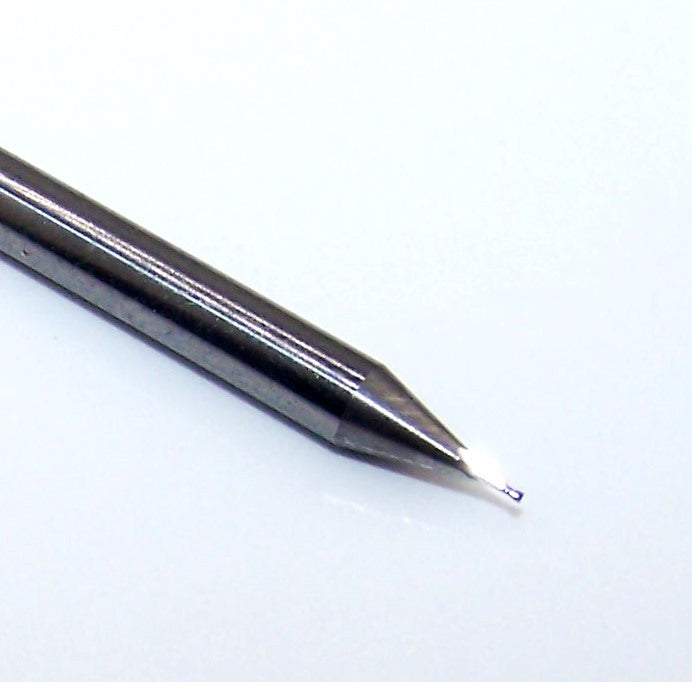

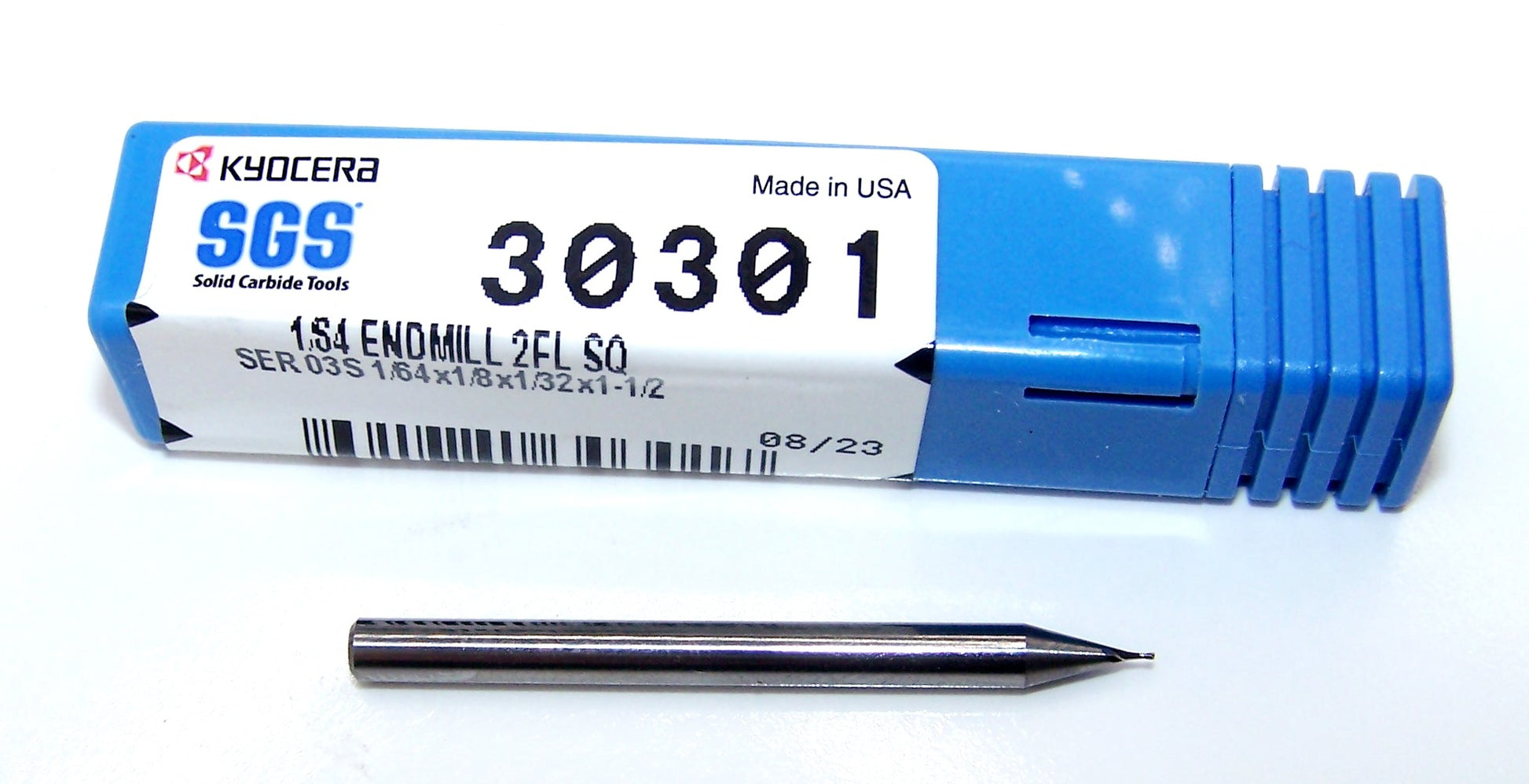

30301 Kyocera SGS 1/64" Carbide End Mill 2 Flute SQ .0156" DIA .031" Flute 1.50 Length .125" Shank

30301 Kyocera SGS 1/64" Carbide End Mill 2 Flute SQ .0156" DIA .031" Flute 1.50 Length .125" Shank

Part Number: 30301

SKU: 156190445124

Manufacturer: Kyocera SGS

$19.40 USD
$19.40 USD
Sale Sold out

Low stock: 8 left

PRODUCT STATS

DIAMETER 0.0156"
FLUTE NUMBER 2
LENGTH OF CUT 0.0310"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 1/64"
BRAND Kyocera SGS
CUTTING SIZE 1/64"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Flat, Square
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Copper, Titanium, Thermoset Plastic
MPN 30301
USABLE LENGTH 0.031"
Kyocera SGS Catalogs

Made in the USA.



Kyocera SGS Carbide End Mill - Micro

  • Two flute design ideal for softer alloyed and non-ferrous material applications
  • Stub flute for added strength
  • Positive flute rake angle for cutting softer materials
  • 30° Flute Helix
  • High performance carbide substrate designed specifically for micro tool applications
  • Manufactured in accordance with ISO certified quality procedures

Applications

  • Plastics
  • Non-Ferrous Materials
  • Cast Iron
  • Steel
  • Wood
  • Copper
  • Titanium



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
