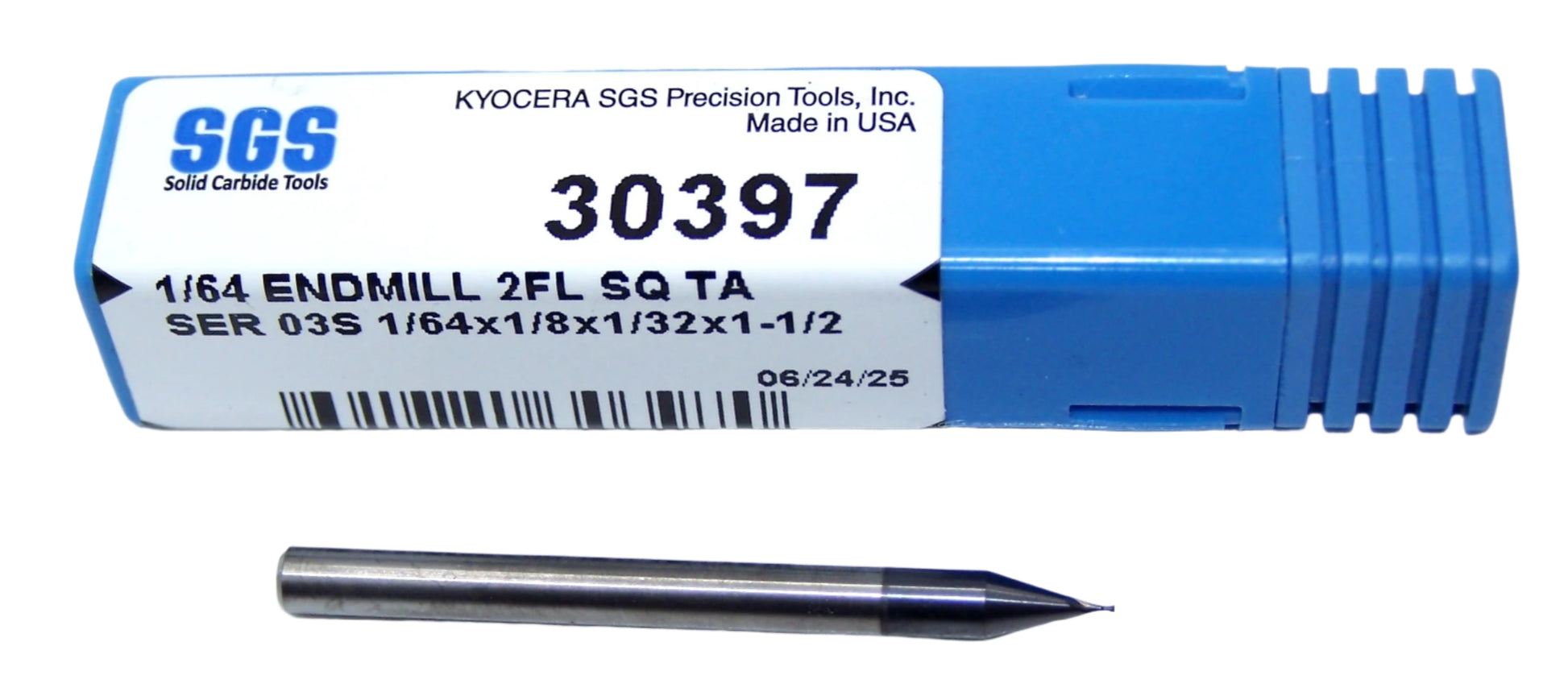

30397 Kyocera SGS 1/64" Carbide End Mill 2 Flute SQ AlTiN Coated .0156" DIA .031" Flute 1.50 Length .125" Shank

30397 Kyocera SGS 1/64" Carbide End Mill 2 Flute SQ AlTiN Coated .0156" DIA .031" Flute 1.50 Length .125" Shank

Part Number: 30397

SKU: 157147182092

Manufacturer: Kyocera SGS

$21.72 USD
$21.72 USD
Sale Sold out

Low stock: 8 left

PRODUCT STATS

DIAMETER 0.0156"
FLUTE NUMBER 2
LENGTH OF CUT 0.0310"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 1/64"
BRAND Kyocera SGS
CUTTING SIZE 1/64"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Flat, Square
FINISH TYPE ALTiN
FLUTE DIRECTION Right Hand
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Copper, Titanium, Thermoset Plastic, Steel, Stainless Steel
MPN 30397
USABLE LENGTH 0.031"
Kyocera SGS Catalogs

Made in the USA.

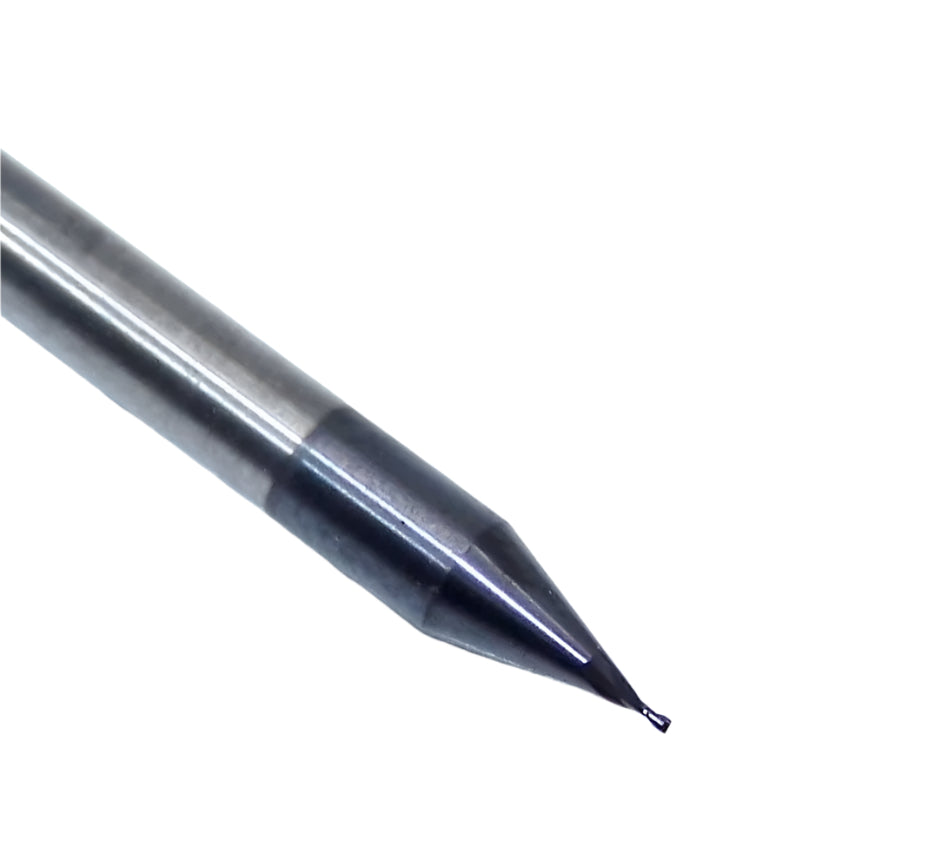

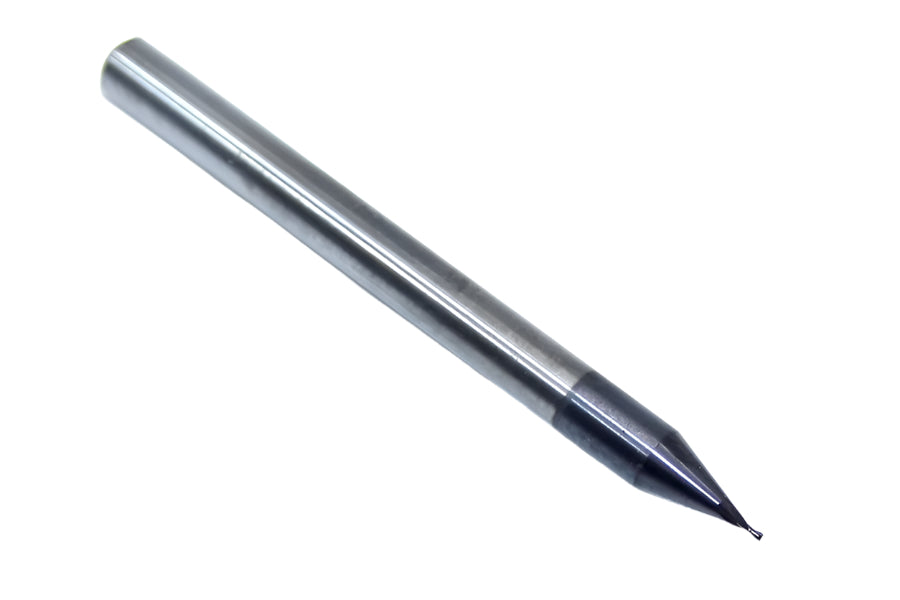

Kyocera SGS Carbide End Mill - Micro

  • Two flute design ideal for softer alloyed and non-ferrous material applications
  • Stub flute for added strength
  • Positive flute rake angle for cutting softer materials
  • 30° Flute Helix
  • High performance carbide substrate designed specifically for micro tool applications
  • Manufactured in accordance with ISO certified quality procedures

Applications

  • Plastics
  • Non-Ferrous Materials
  • Cast Iron
  • Steel
  • Wood
  • Copper
  • Titanium
