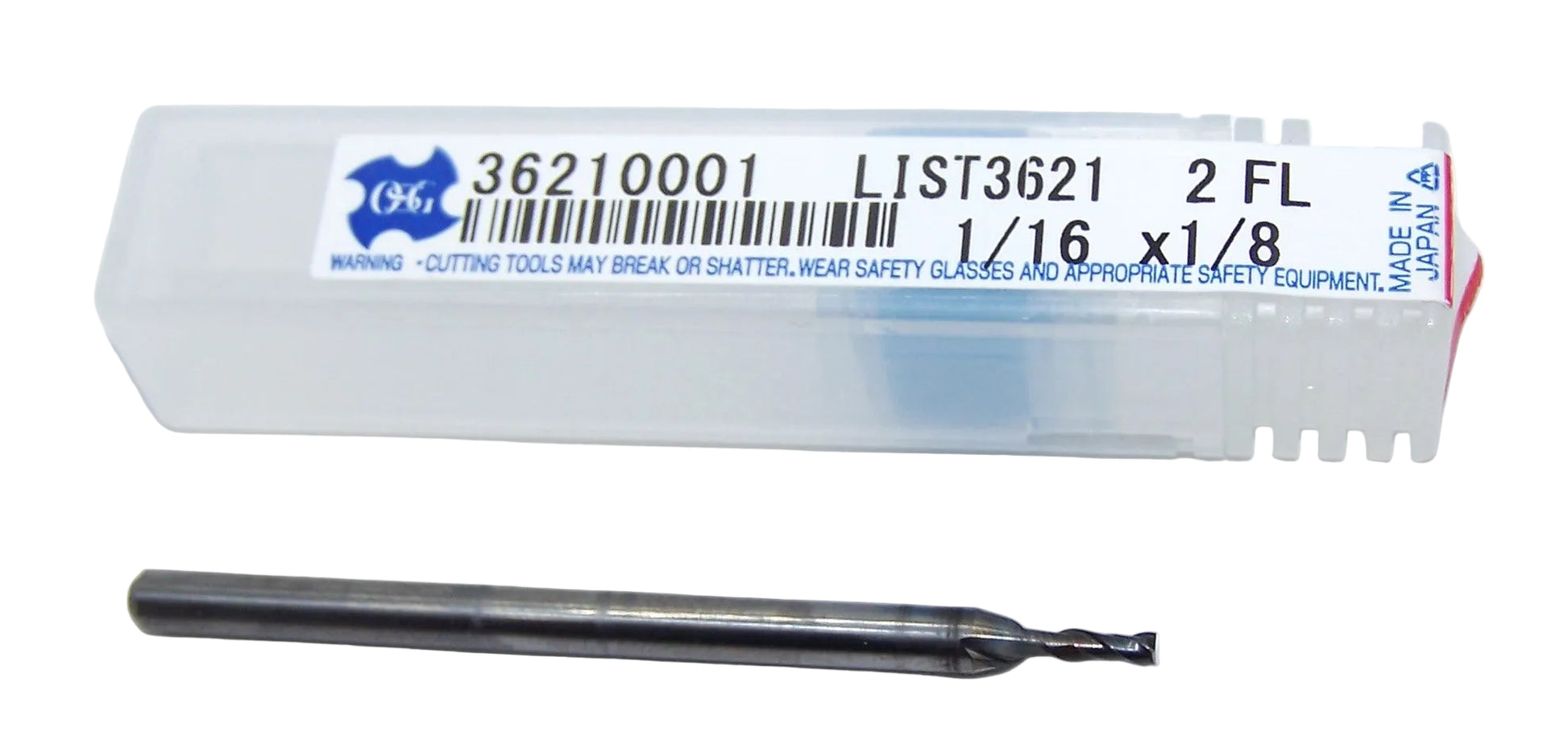

36210001 1/16" Carbide 2 Flute End Mill Square End SQ WXL Coating 0.0625" Diameter 0.1875" Flute 2.00" Length .125" Shank for Hard Metal

36210001 1/16" Carbide 2 Flute End Mill Square End SQ WXL Coating 0.0625" Diameter 0.1875" Flute 2.00" Length .125" Shank for Hard Metal

Part Number: 36210001

SKU: 800309921457

Manufacturer: OSG

$25.05 USD
$25.05 USD
Sale Sold out

Out of stock? Contact us to see if more are available!

Out of stock

PRODUCT STATS

DIAMETER 0.0625"
FLUTE NUMBER 2
LENGTH OF CUT 0.1875"
OVERALL LENGTH 2.0"
SHANK SIZE 0.125"
SIZE 1/16"
BRAND OSG
CUTTING SIZE 1/16"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Square
FINISH TYPE WXL
FLUTE DIRECTION Right Hand
HELIX ANGLE 35.0°
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Hardened Steel, Cast Iron, High Temp Alloy
MPN 36210001
USABLE LENGTH 0.1875"
WORK DIRECTION Right Hand

Made in the USA

Authorized OSG Distributor - let me know if there are other items you need added to the store

OSG EXOCARB WXL-3D-DE End Mill

This is a High Performance Carbide End Mill for Pre-hardened and Hardened Steels

  • 2 flute design
  • Center cutting - square end
  • High precision geometry for benching and rework for mold makers
  • High strength thicker core the ultimate in strength and rigidity
  • Ultra-fine micrograin carbide for incredible wear resistance
  • WXL coating +1000 Celsius Oxidation Temperature and 31000Hv Hardness

Applications

  • Steel (1st choice)
  • Stainless Steel (1st choice)
  • Hardened Steel (1st choice)
  • Cask Iron (1st choice)
  • Aluminum (2nd choice)
  • Nickel Alloy (2nd choice)
  • Titanium (2nd choice)
