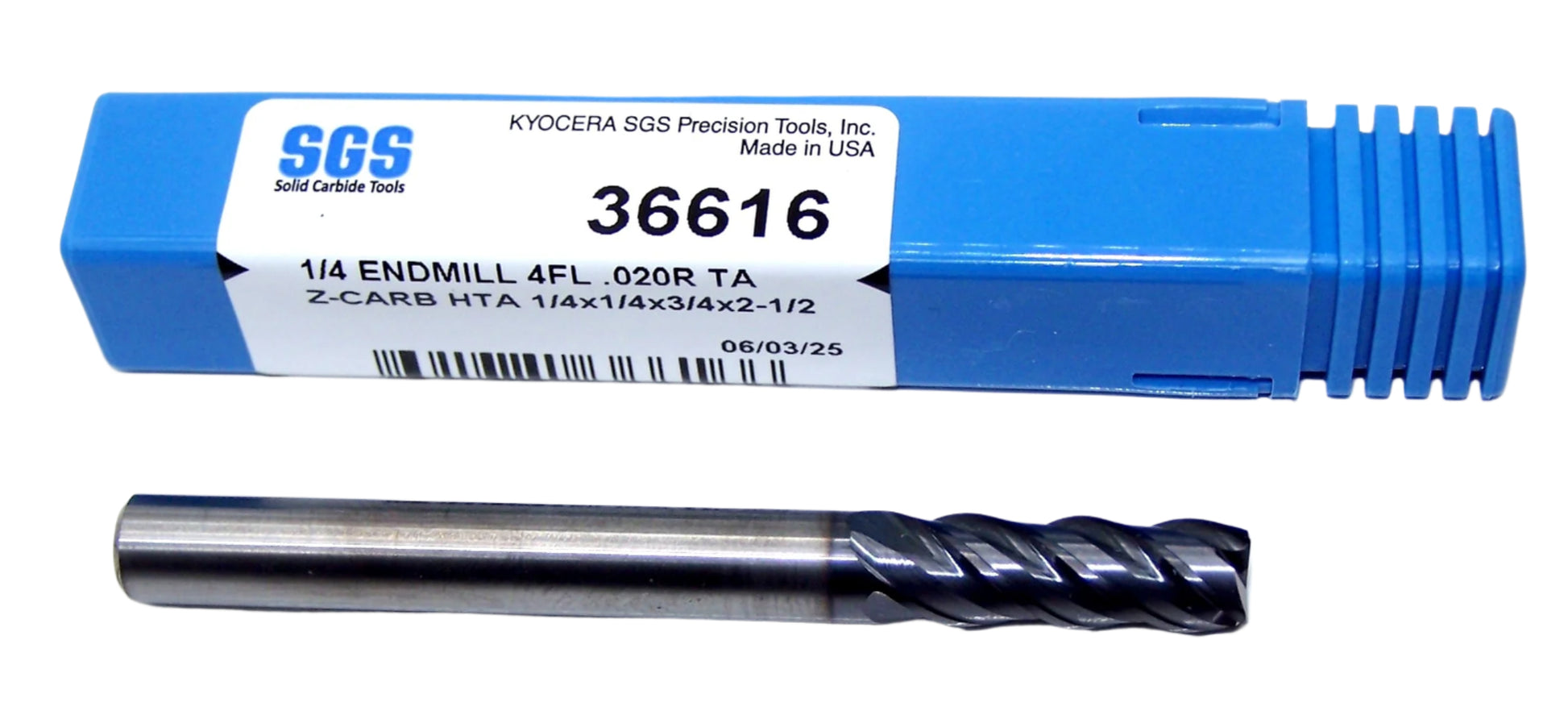

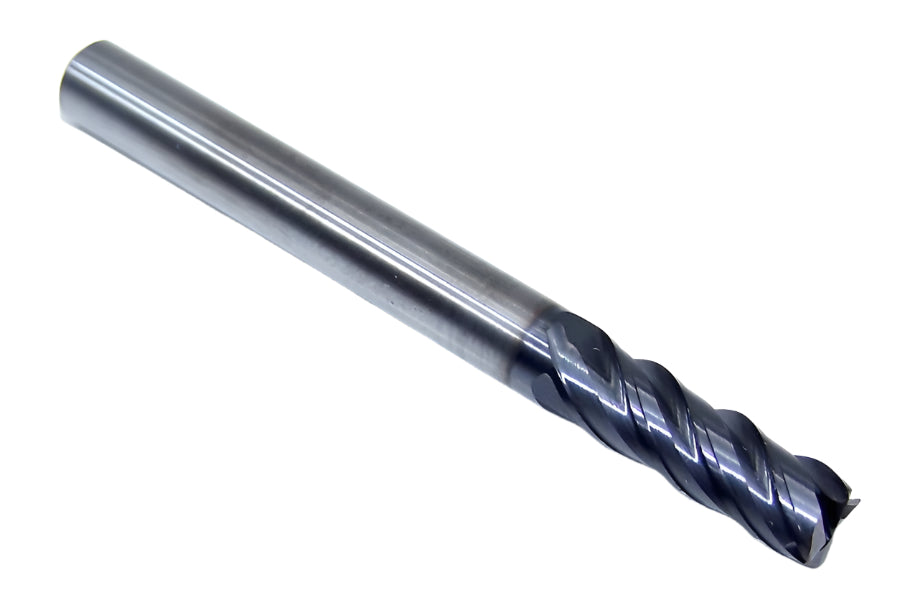

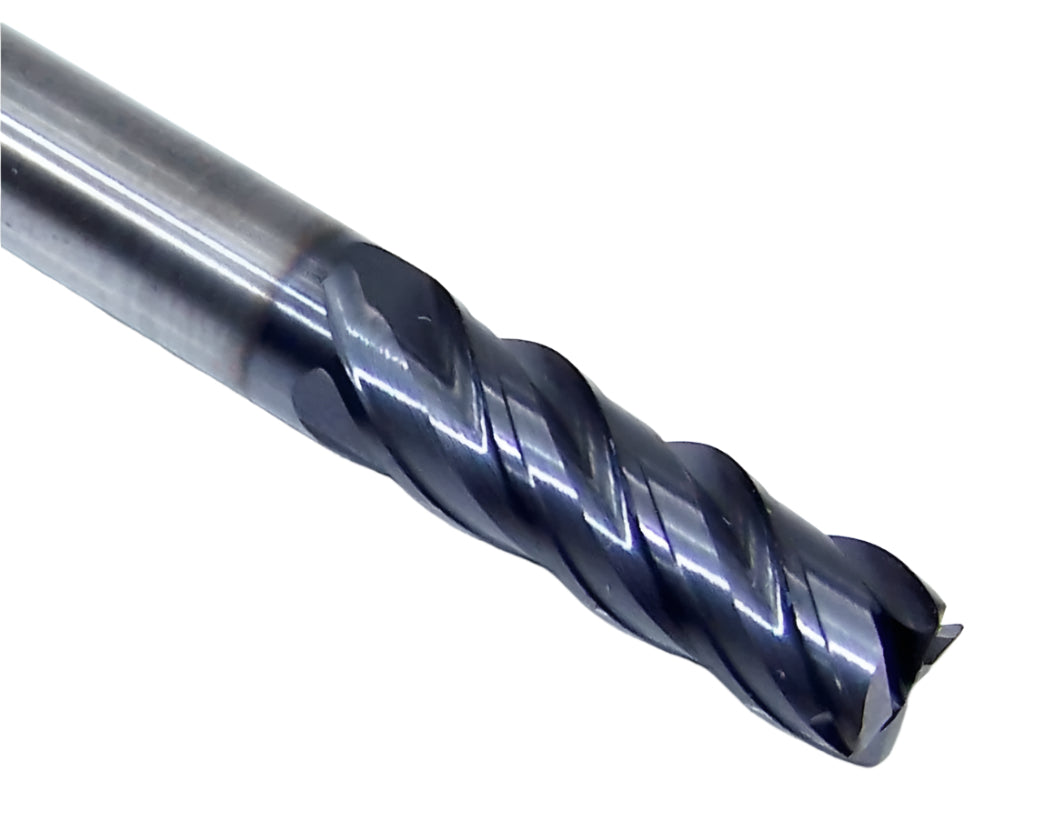

36616 Kyocera SGS 1/4" Carbide 4 Flute End Mill .020" Radius .250" Diameter 0.750" Flute 2.50" Length .250" Shank Z-Carb HTA

36616 Kyocera SGS 1/4" Carbide 4 Flute End Mill .020" Radius .250" Diameter 0.750" Flute 2.50" Length .250" Shank Z-Carb HTA

Part Number: 36616

SKU: 157151821832

Manufacturer: Kyocera SGS

$28.50 USD
$28.50 USD
Sale Sold out

Low stock: 4 left

PRODUCT STATS

DIAMETER 0.2500"
FLUTE NUMBER 4
LENGTH OF CUT 0.7500"
OVERALL LENGTH 2.5"
SHANK SIZE 0.25"
SIZE 1/4"
ADAPTER STYLE MACHINE SIDE Straight-Cylindrical
BRAND Kyocera SGS
CORNER RADIUS 0.02"
CUTTING SIZE 1/4"
CUT DIRECTION Up Cut
END STYLE Radius
FINISH TYPE ALTiN
HELIX ANGLE 38.0°
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Cast Iron, Hardened Steel
MPN 36616
USABLE LENGTH 0.75"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

MADE IN USA!

Kyocera SGS Carbide End Mill - High Performance Z-Carb

  • The original Z-Carb design with an enhanced core and higher helix suited for the demands of high temperature alloys
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Optimal material removal rates through increased feed and depths o cut for difficult to machine materials
  • Enhanced corner geometry with tight tolerance corner radii
  • Helix Angle 38° - 41°
  • Variable Rake
  • Center Cutting
  • AlTiN (TI-NAMITE-A) Coating
  • ISO certified manufacturing

Applications

  • Steel - primary
  • Stainless Steel - primary
  • Cast Iron - primary
  • High Temp Alloy - primary
  • Hardened Materials - secondary
