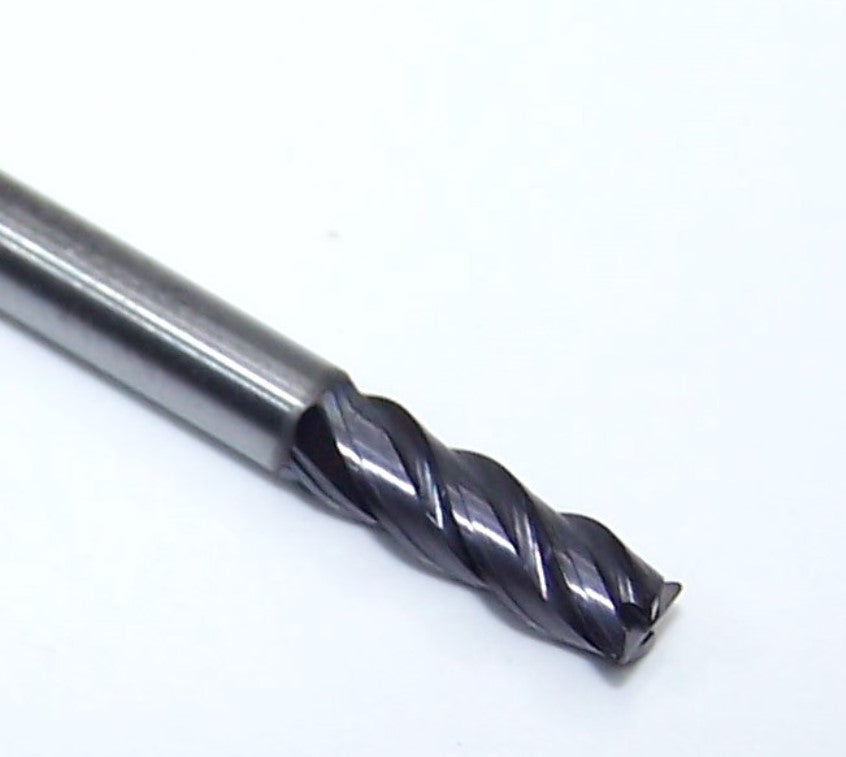

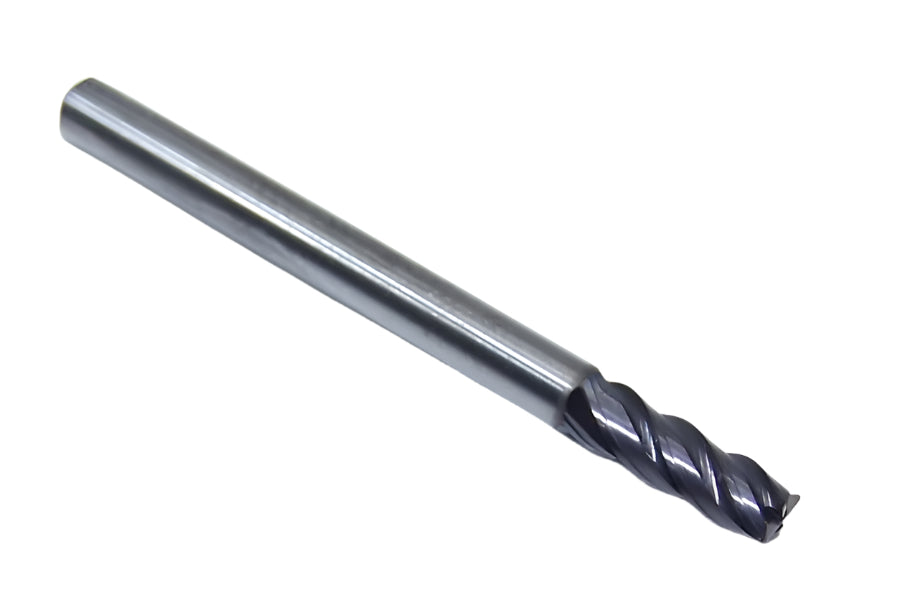

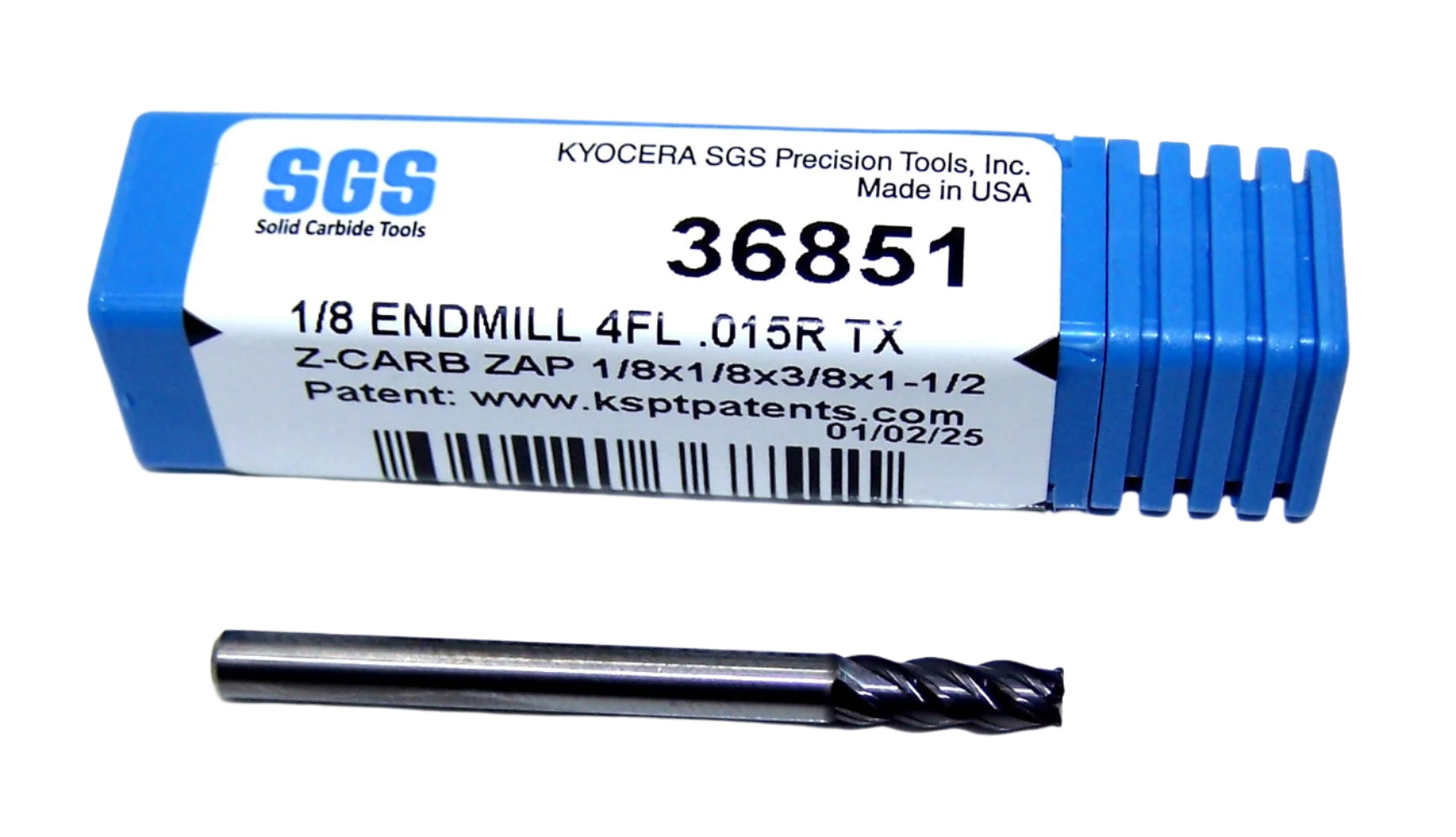

36851 Kyocera SGS 1/8" Carbide 4 Flute End Mill .015" Radius .125" Diameter .375" Flute1.50" Length .125" Shank Z-Carb AP
36851 Kyocera SGS 1/8" Carbide 4 Flute End Mill .015" Radius .125" Diameter .375" Flute1.50" Length .125" Shank Z-Carb AP
Part Number: 36851
SKU: 157206953486
Manufacturer: Kyocera SGS
Regular price
$17.15 USD
Regular price
Sale price
$17.15 USD
Unit price
/
per
Low stock: 2 left
Couldn't load pickup availability
PRODUCT STATS
DIAMETER | 0.1250" |
FLUTE NUMBER | 4 |
LENGTH OF CUT | 0.3750" |
OVERALL LENGTH | 1.5" |
SHANK SIZE | 0.125" |
SIZE | 1/8" |
ADAPTER STYLE MACHINE SIDE | Straight-Cylindrical |
BRAND | Kyocera SGS |
CORNER RADIUS | 0.015" |
CUTTING SIZE | 1/8" |
CUT DIRECTION | Up Cut |
END STYLE | Radius |
FINISH TYPE | ALTiN |
MATERIAL | Solid Carbide |
MATERIALS CUT | Steel, Stainless Steel, Cast Iron, Hardened Steel, High Temp Alloy |
MPN | 36851 |
USABLE LENGTH | 0.375" |
MADE IN USA!
Kyocera SGS Carbide End Mill - High Performance Z-Carb
- Variable Rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
- Unequal helix design change the cutting angle to improve harmonics
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the
- cutting edge helping to suppress damaging harmonics
- Enhanced corner geometry with tight tolerance corner radii
- Helix Angle 35° - 38°
- Variable Rake
- Center Cutting
- TX (TI-NAMITE-X) Coating
- ISO certified manufacturing
Applications
- Steel - primary
- Stainless Steel - primary
- Cast Iron - primary
- High Temp Alloy - primary
- Hardened Materials - secondary
The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
