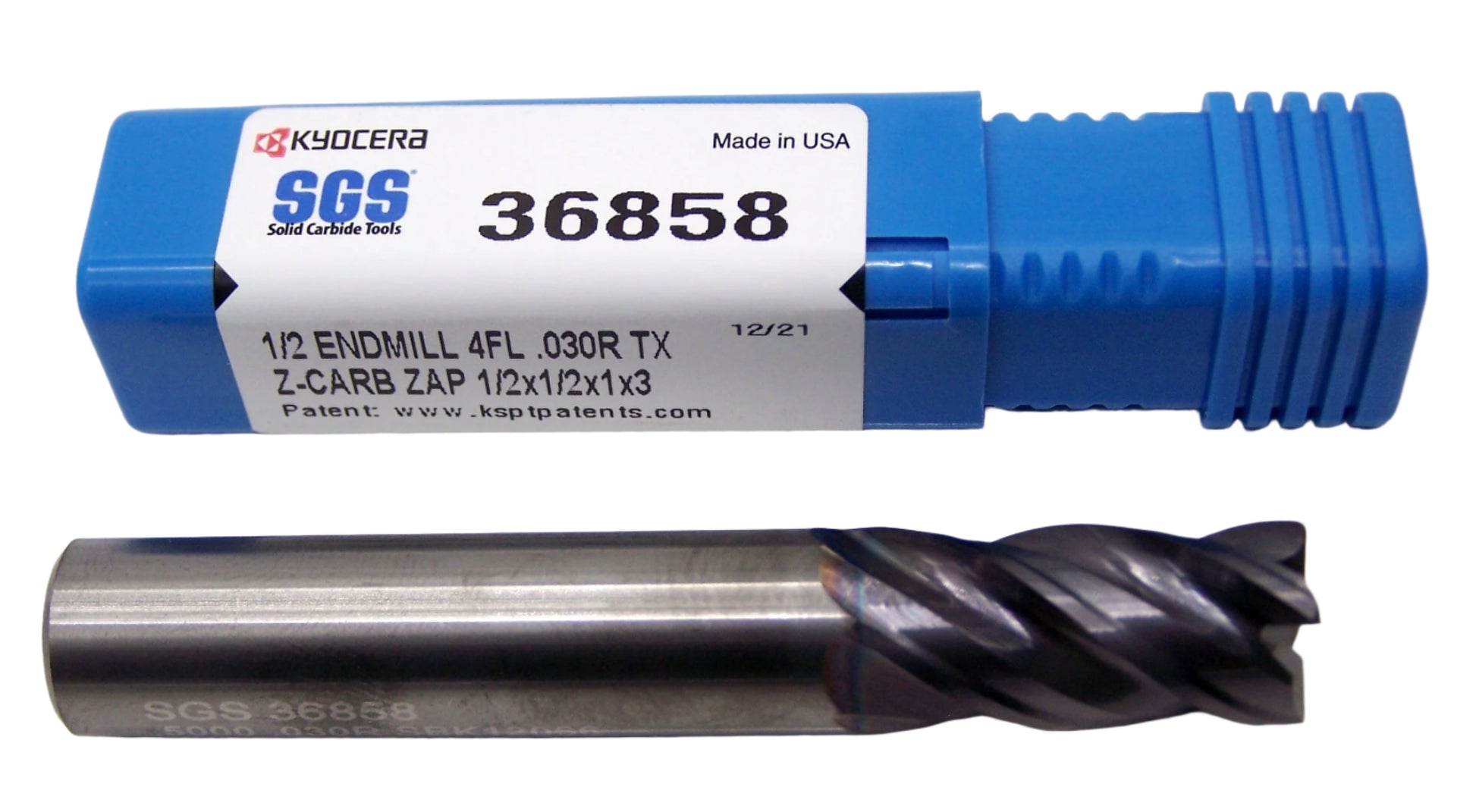

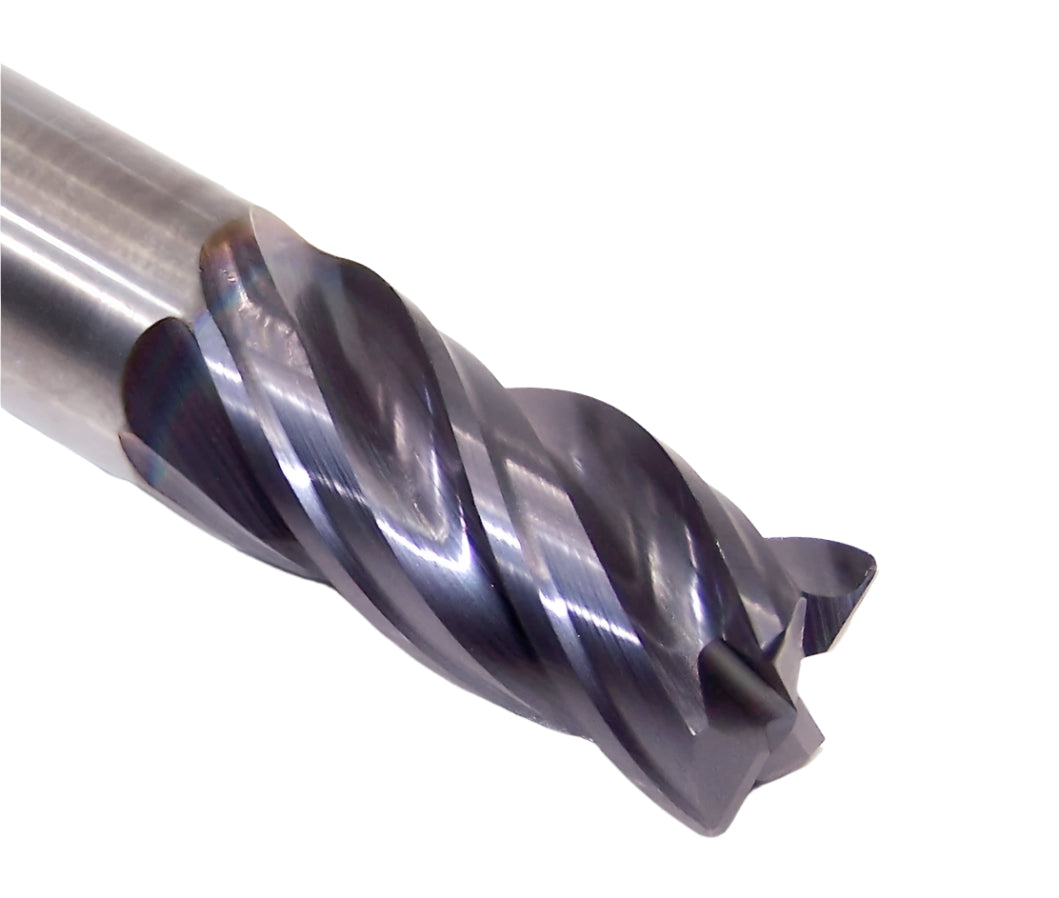

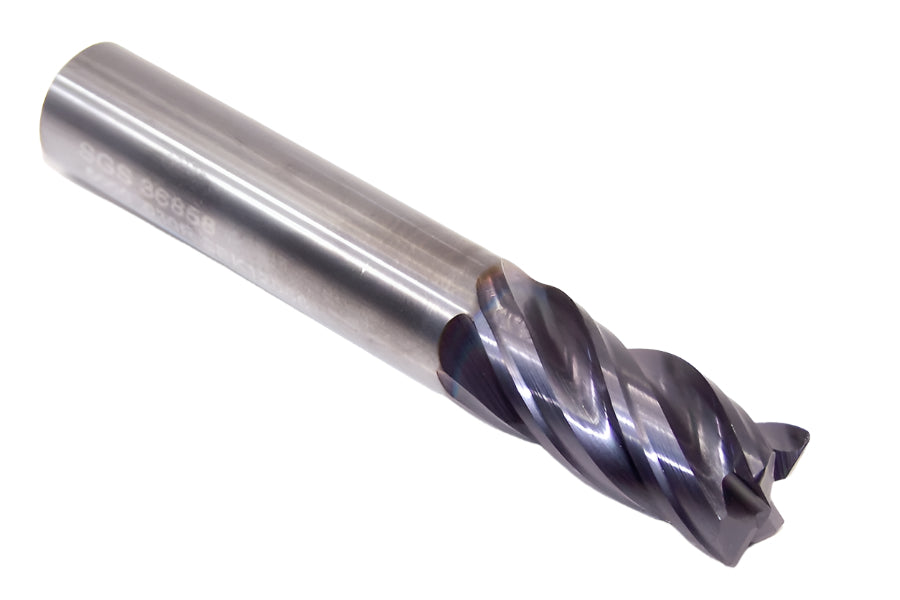

36858 Kyocera SGS 1/2" Carbide 4 Flute End Mill .030" Radius .500" Diameter 1.00" Flute 3.00" Length .500" Shank Z-Carb AP

36858 Kyocera SGS 1/2" Carbide 4 Flute End Mill .030" Radius .500" Diameter 1.00" Flute 3.00" Length .500" Shank Z-Carb AP

Part Number: 36858

SKU: 153000450342

Manufacturer: Kyocera SGS

$69.28 USD
$69.28 USD
Sale Sold out

Low stock: 5 left

PRODUCT STATS

DIAMETER 0.5000"
FLUTE NUMBER 4
LENGTH OF CUT 1.0000"
OVERALL LENGTH 3.0"
SHANK SIZE 0.5"
SIZE 1/2"
ADAPTER STYLE MACHINE SIDE Straight-Cylindrical
BRAND Kyocera SGS
CORNER RADIUS 0.03"
CUTTING SIZE 1/2"
CUT DIRECTION Up Cut
END STYLE Radius
FINISH TYPE Special
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Cast Iron, Hardened Steel
MPN 36858
USABLE LENGTH 1.0"
Kyocera SGS Catalogs

MADE IN USA!

Kyocera SGS Carbide End Mill - High Performance Z-Carb

  • Variable Rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
  • Unequal helix design change the cutting angle to improve harmonics
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the
  •  cutting edge helping to suppress damaging harmonics
  • Enhanced corner geometry with tight tolerance corner radii
  • Helix Angle 35° - 38°
  • Variable Rake
  • Center Cutting
  • TX (TI-NAMITE-X) Coating
  • ISO certified manufacturing

Applications

  • Steel - primary
  • Stainless Steel - primary
  • Cast Iron - primary
  • High Temp Alloy - primary
  • Hardened Materials - secondary



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
