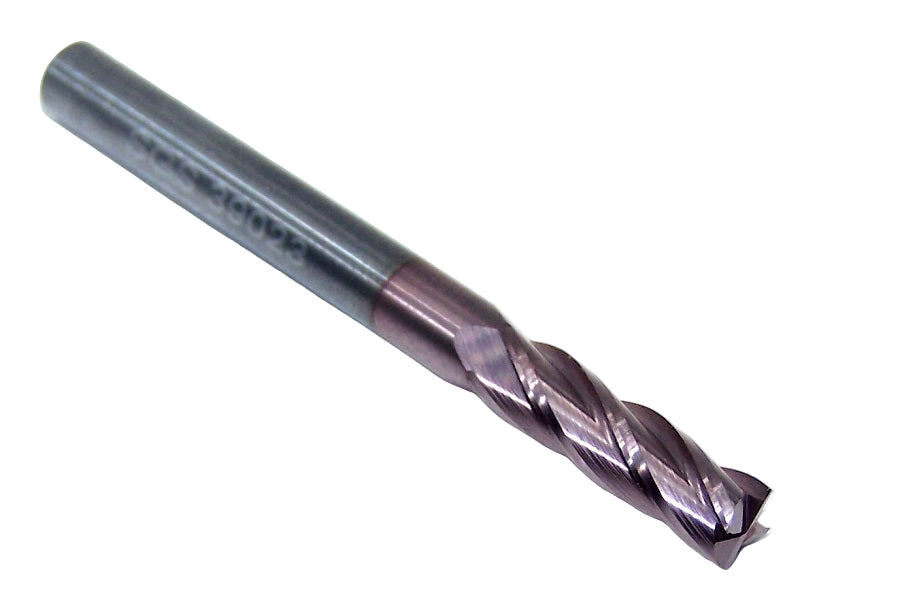

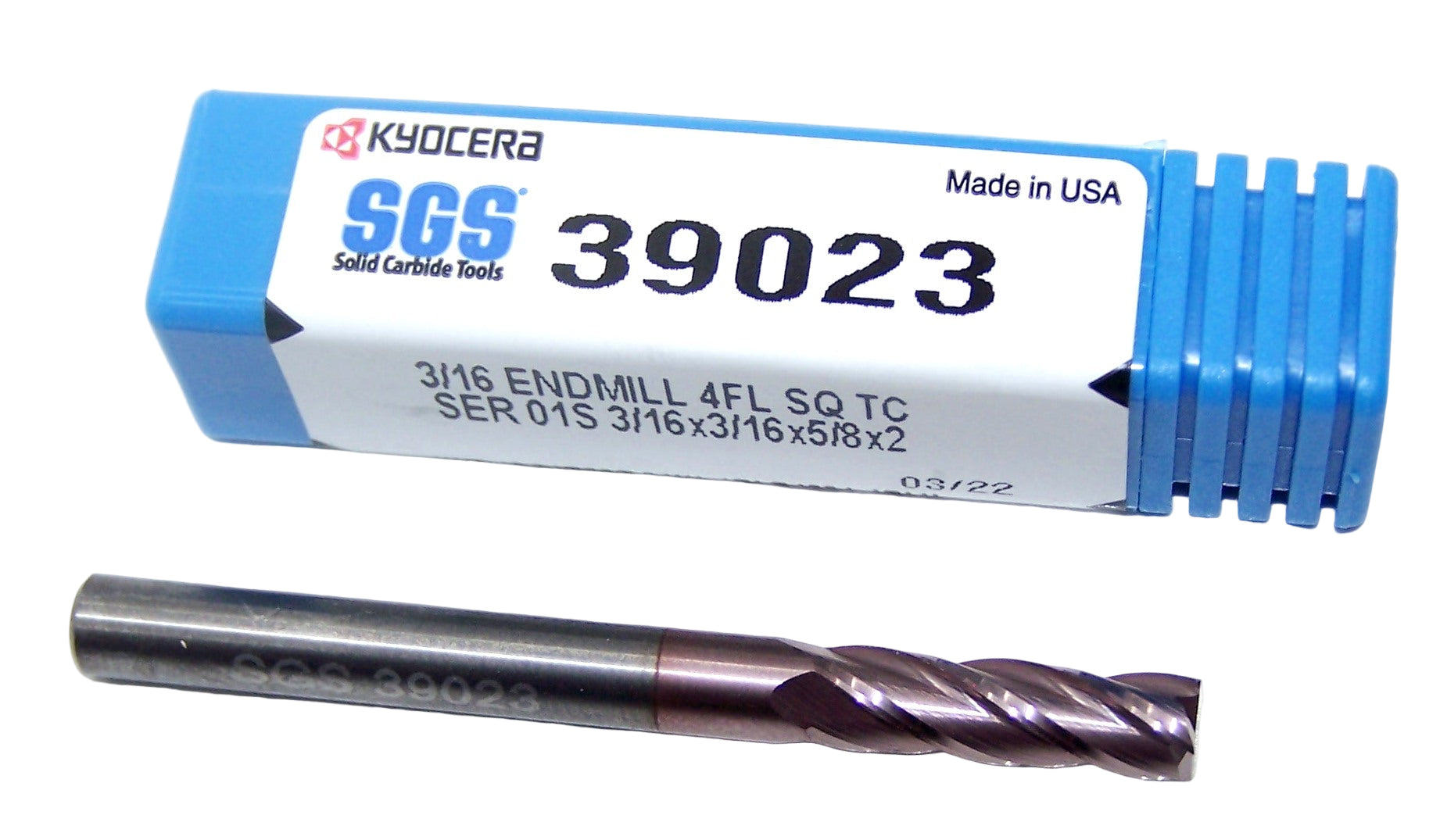

39023 Kyocera SGS 3/16" Carbide End Mill 4 Flute SQ TiCN Coated .1875" Diameter .625" Flute 2.00" Length .188" Shank

Made in the USA

The Kyocera SGS Series 01S is a versatile, general‑purpose solid carbide end mill line engineered for reliable performance across a wide range of materials. The 01S series delivers smooth cutting action, excellent chip control, and long tool life. Ideal for everyday milling tasks, these tools provide consistent accuracy and dependable results in both CNC and manual machining environments.

Key Features
•     General‑purpose solid carbide design for broad application versatility

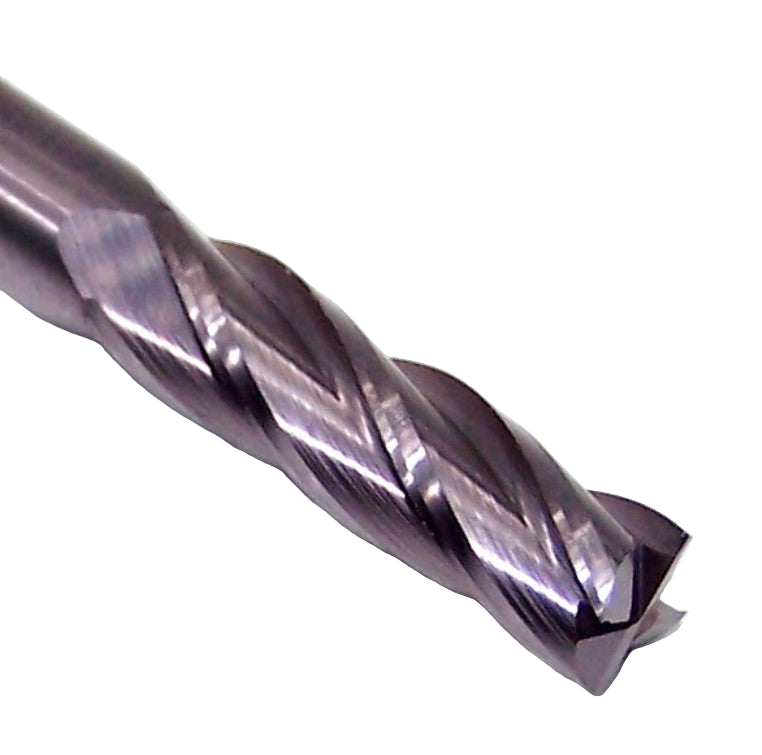

•     4‑flute, 30° helix geometry for smooth cutting and efficient chip evacuation
•     Square‑end configuration ideal for slotting, profiling, and finishing operations
•     Available Ti‑NAMITE‑A (AlTiN) coating for improved heat resistance and tool life
•     Right‑hand cutting spiral flutes for stable, predictable machining performance
•     Multiple diameters and lengths to support a wide range of machining setups

Primary Workpiece Materials
•     Steel (P) – low, medium, and alloy steels
•     Stainless steel (M) – 300 & 400 series
•     Cast iron (K) – gray, ductile, and compacted graphite irons
•     Non‑ferrous materials (N) – aluminum, brass, copper
•     High‑temperature alloys (S) – nickel‑based and cobalt‑based alloys

Secondary Workpiece Materials
•     Hardened materials (H) – up to moderate hardness ranges
