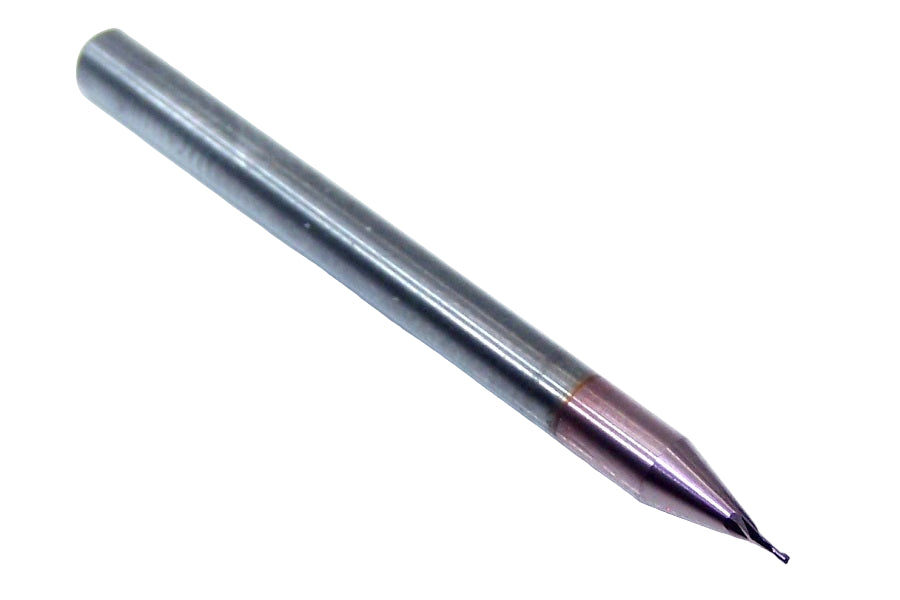

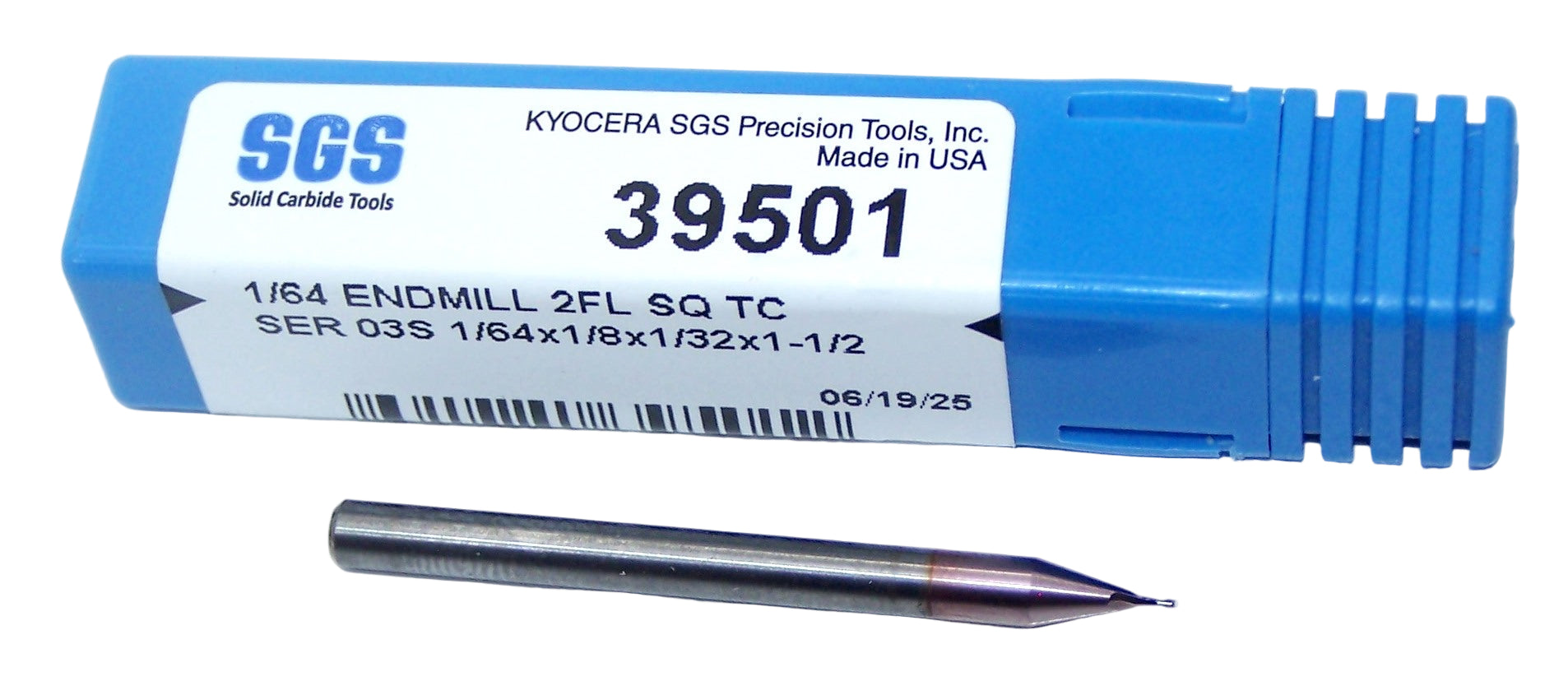

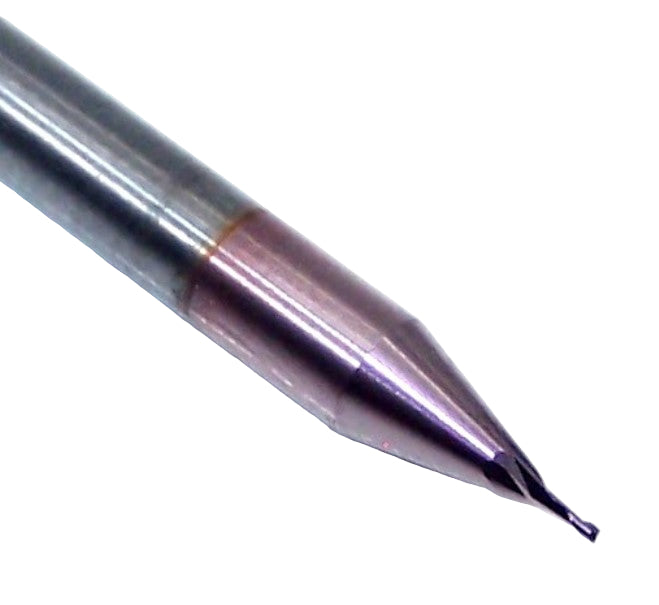

39501 Kyocera SGS 1/64" Carbide End Mill 2 Flute SQ TiCN Coated .0156" Diameter .031" Flute 1.50 Length .125" Shank

39501 Kyocera SGS 1/64" Carbide End Mill 2 Flute SQ TiCN Coated .0156" Diameter .031" Flute 1.50 Length .125" Shank

Part Number: 39501

SKU: 388968199562

Manufacturer: Kyocera SGS

Regular price $22.60 USD
Regular price Sale price $22.60 USD
Sale Sold out

Low stock: 5 left

PRODUCT STATS

DIAMETER 0.0156"
FLUTE NUMBER 2
LENGTH OF CUT 0.0310"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 1/64"
BRAND Kyocera SGS
CUTTING SIZE 1/64"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Flat, Square
FINISH TYPE TiCN
FLUTE DIRECTION Right Hand
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Copper, Titanium, Thermoset Plastic
MPN 39501
USABLE LENGTH 0.031"
Kyocera SGS Catalogs

Made in the USA.



Kyocera SGS Carbide End Mill - Micro

  • Two flute design ideal for softer alloyed and non-ferrous material applications
  • Stub flute for added strength
  • Positive flute rake angle for cutting softer materials
  • 30° Flute Helix
  • High performance carbide substrate designed specifically for micro tool applications
  • Manufactured in accordance with ISO certified quality procedures

Applications

  • Plastics
  • Non-Ferrous Materials
  • Cast Iron
  • Steel
  • Wood
  • Copper
  • Titanium
