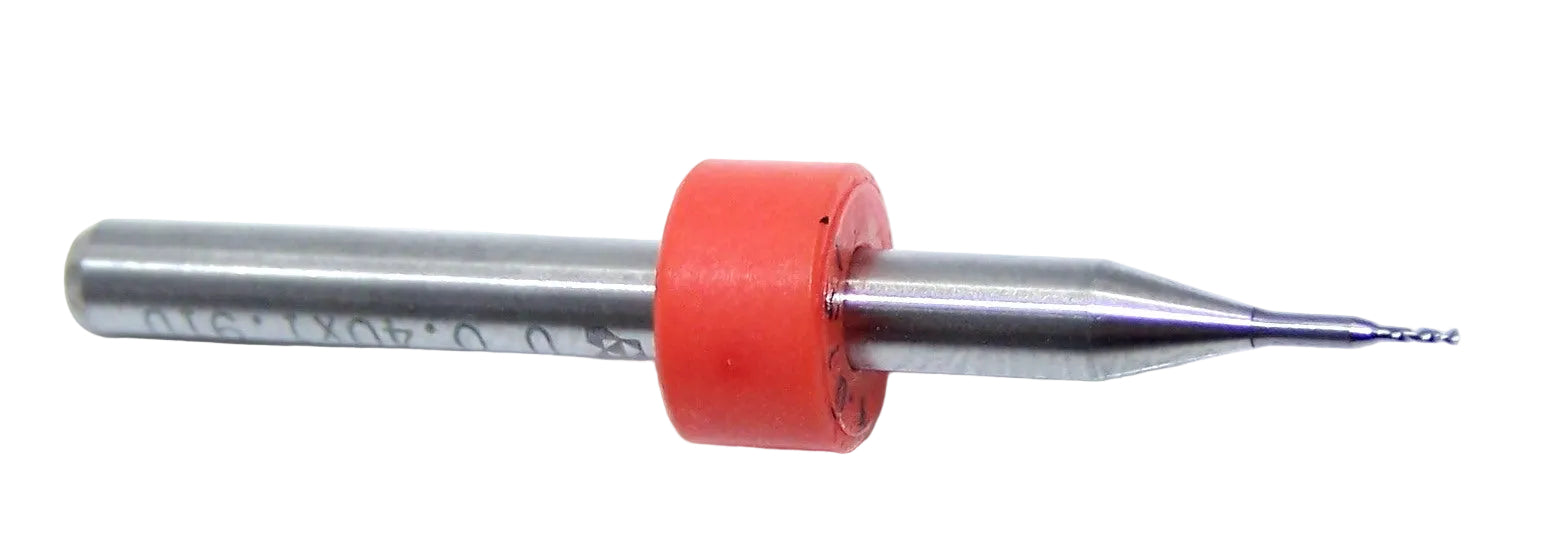

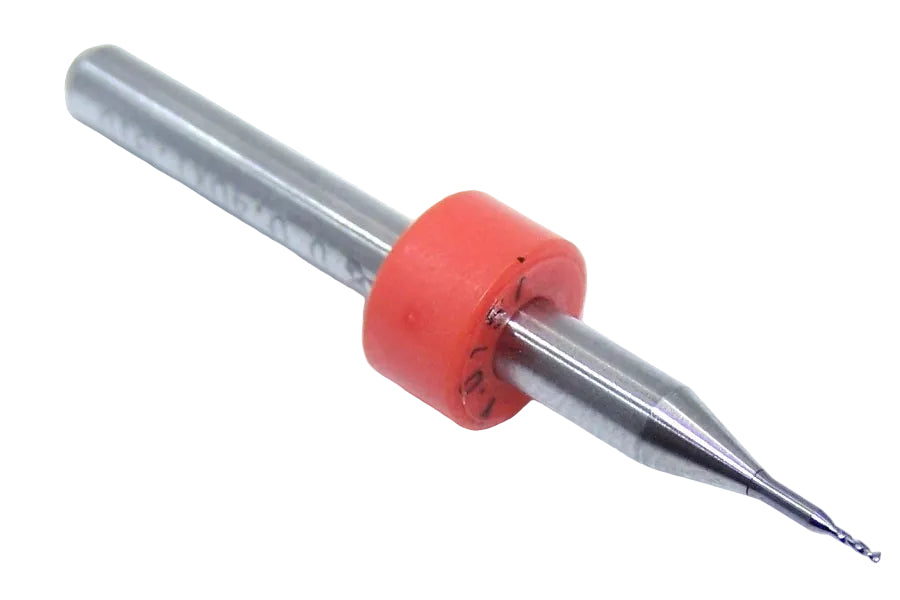

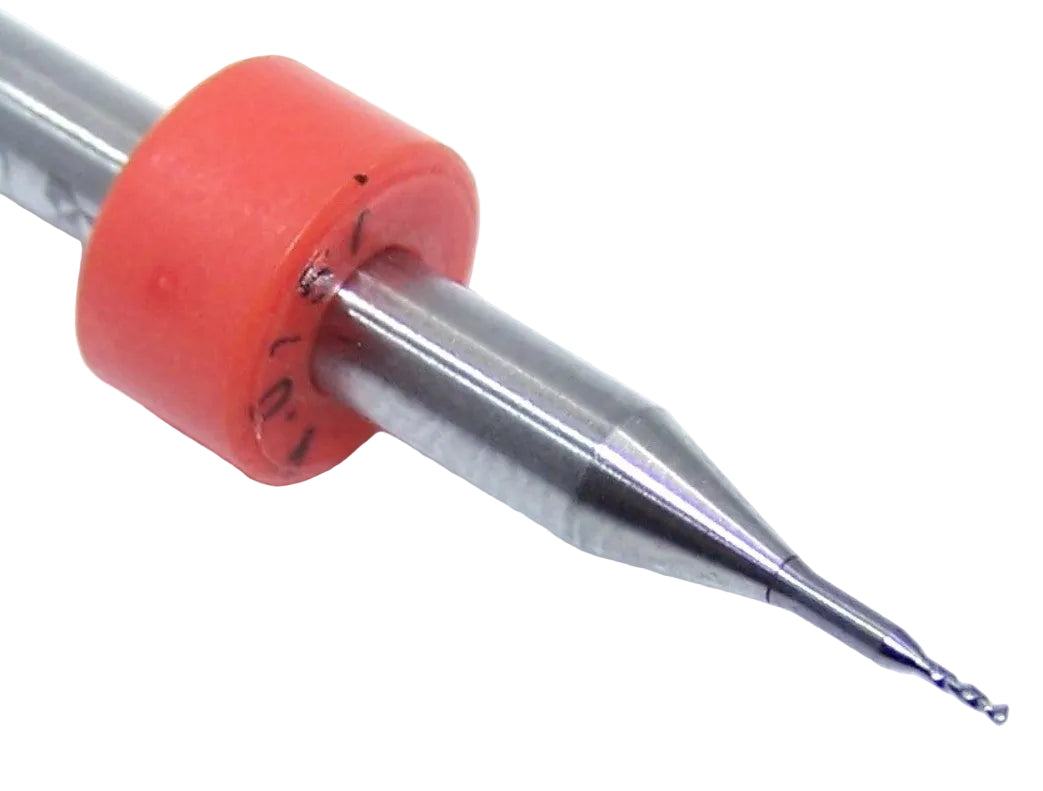

405.0157.075 Kyocera 0.40mm Carbide 2 Flute Pilot Drill PCB Typce .0145" Diameter .075" Flute 1.50" Length .125" Shank

405.0157.075 Kyocera 0.40mm Carbide 2 Flute Pilot Drill PCB Typce .0145" Diameter .075" Flute 1.50" Length .125" Shank

Part Number: 405.0157.075

SKU: 800038115560

Manufacturer: Kyocera PCB

$1.60 USD
$1.60 USD
Sale Sold out

50 in stock

PRODUCT STATS

DIAMETER 0.0157"
FLUTE NUMBER 2
LENGTH OF CUT 0.0750"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 0.40mm
BRAND Kyocera PCB
CUTTING SIZE 0.40mm
CUT DIRECTION Up Cut
ENDS Single
END STYLE Drill Point
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
FLUTE STYLE Spiral
INCLUDED POINT ANGLE 130.0°
MATERIAL Carbide Tip
MATERIALS CUT Plastic, Fiberglass, Aluminum, Copper, Carbon Fiber, Abrasive Material
MPN 405.0157.075
USABLE LENGTH 0.75"
WORK DIRECTION Right Hand
Speeds and Feeds

Kyocera Micro Pilot Drills

  • Short drill flute used in piloting holes exceeding 15:1 aspect ratio
  • Promotes precision hole location
  • 130° drill point angle

Applicaitons

  • Glass supported materials
  • Plactics
  • Aluminum
  • Copper
