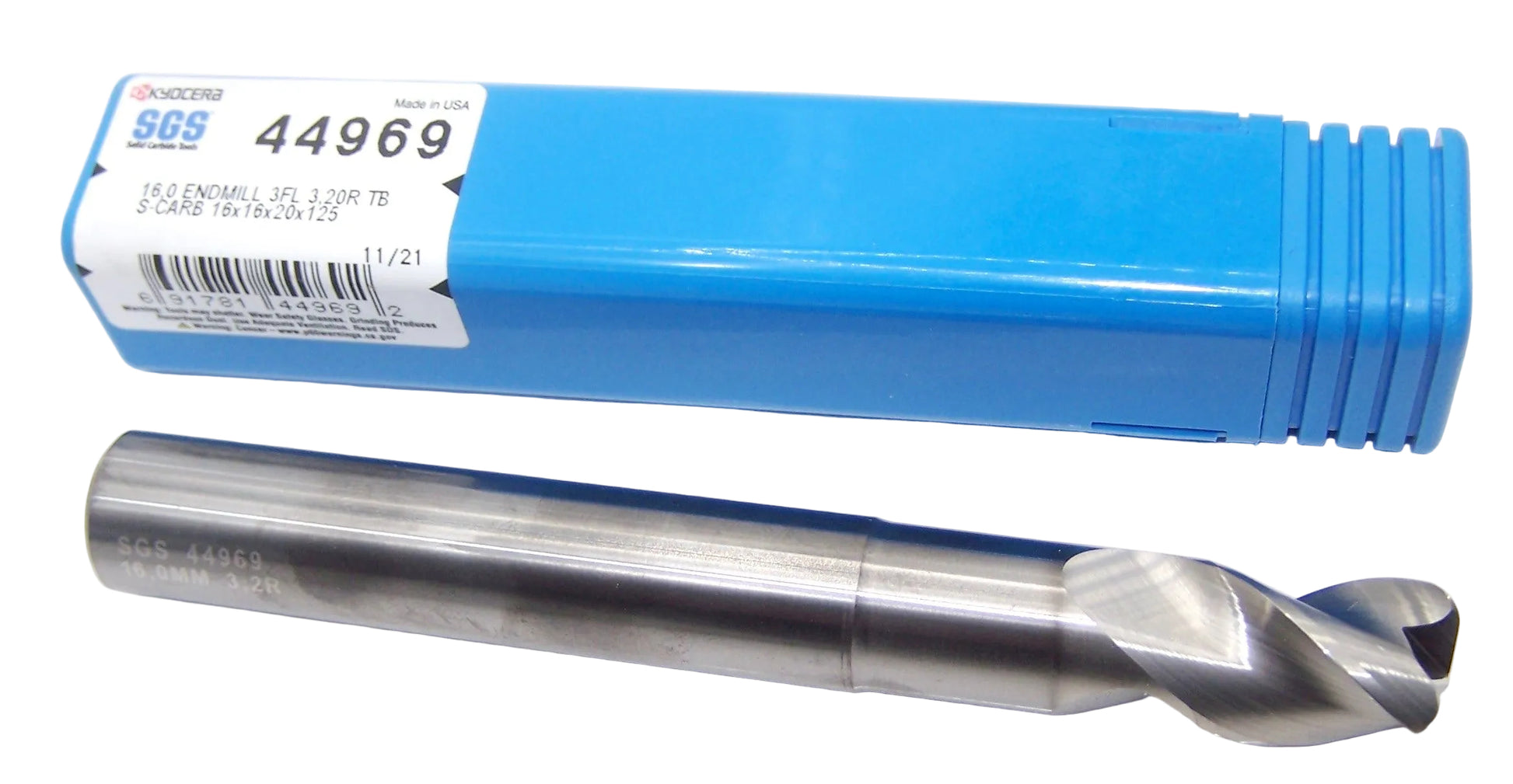

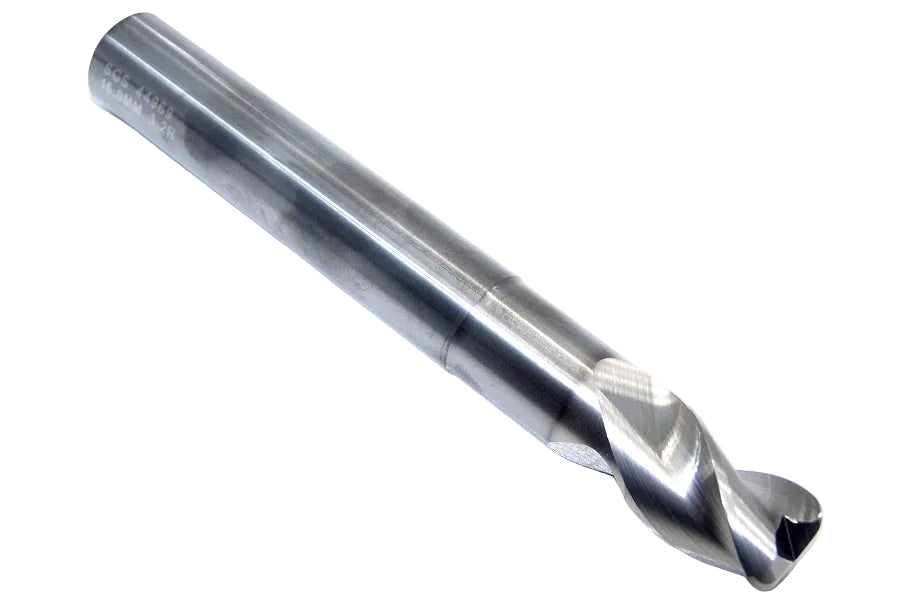

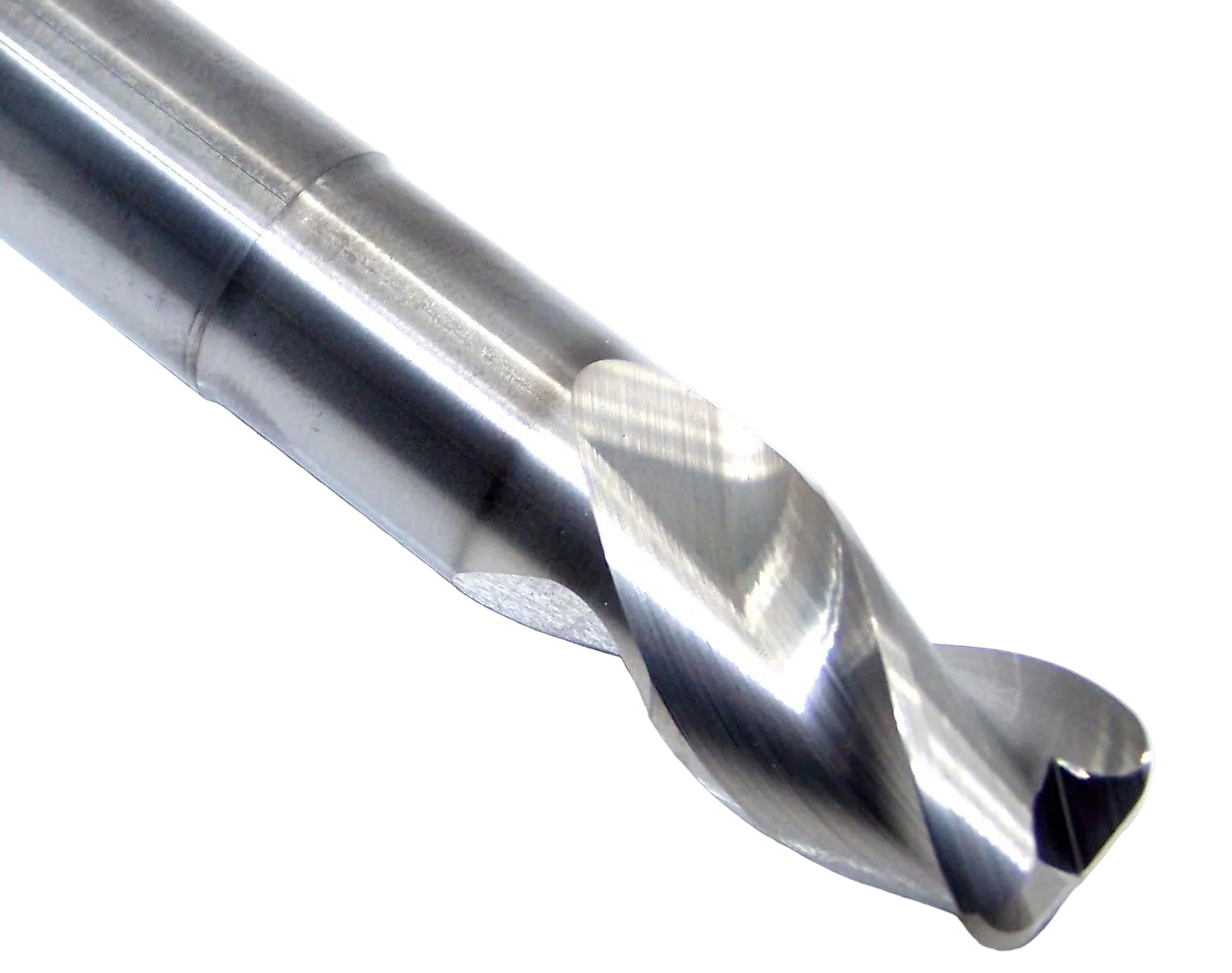

44969 Kyocera SGS 16mm Carbide 3 Flute End Mill S-Carb .125" Radius 1.97" Reach 0.630" Diameter .787" Flute 4.92" Length .630" Shank S-Carb

44969 Kyocera SGS 16mm Carbide 3 Flute End Mill S-Carb .125" Radius 1.97" Reach 0.630" Diameter .787" Flute 4.92" Length .630" Shank S-Carb

Part Number: 44969

SKU: 800254565608

Manufacturer: Kyocera SGS

$80.00 USD
$357.45 USD $80.00 USD
Sale Sold out

Out of stock? Contact us to see if more are available!

Out of stock

PRODUCT STATS

DIAMETER 0.6300"
FLUTE NUMBER 3
LENGTH OF CUT 0.7874"
OVERALL LENGTH 4.92"
SHANK SIZE 0.63"
SIZE 16.00mm
BRAND Kyocera SGS
CORNER RADIUS 0.126"
CUTTING SIZE 16mm
CUT DIRECTION Up Cut
END STYLE Radius
EXTENDED REACH 1.97"
FINISH TYPE TiB2
FLUTE DIRECTION Right Hand
FLUTE STYLE Spiral
HELIX ANGLE 38.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Plastic, Copper
MPN 44969
USABLE LENGTH 0.787"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Authorized SGS Distributor - let us know if you need something added to the store

Kyocera SGS high performance aluminum end mill - S-Carb - this tool will hog out some aluminum

  • Circular land allows for increased control at various speed and feed rated and reduces chatter
  • Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
  • Open fluting for deep slotting and profiling
  • 38° Flute Helix
  • Recommended for materials <150 Bhn

Applications

  • Aluminum - primary
  • Copper (and other non-ferrous materials) - primary
  • Plastics - secondary
  • Composites - secondary

The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
