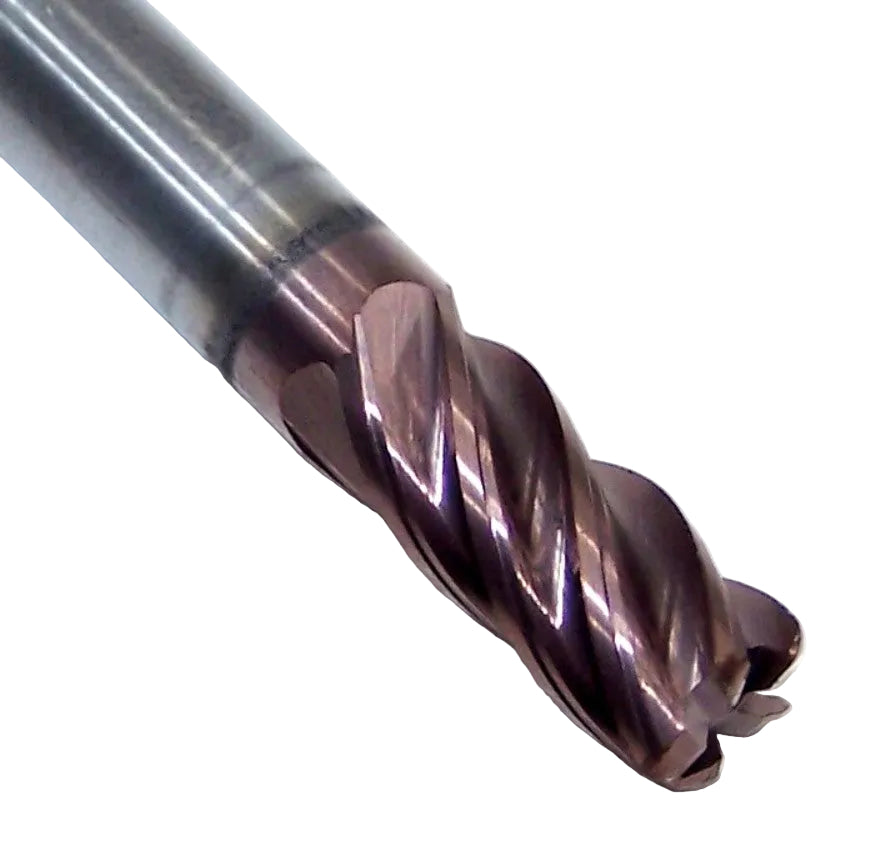

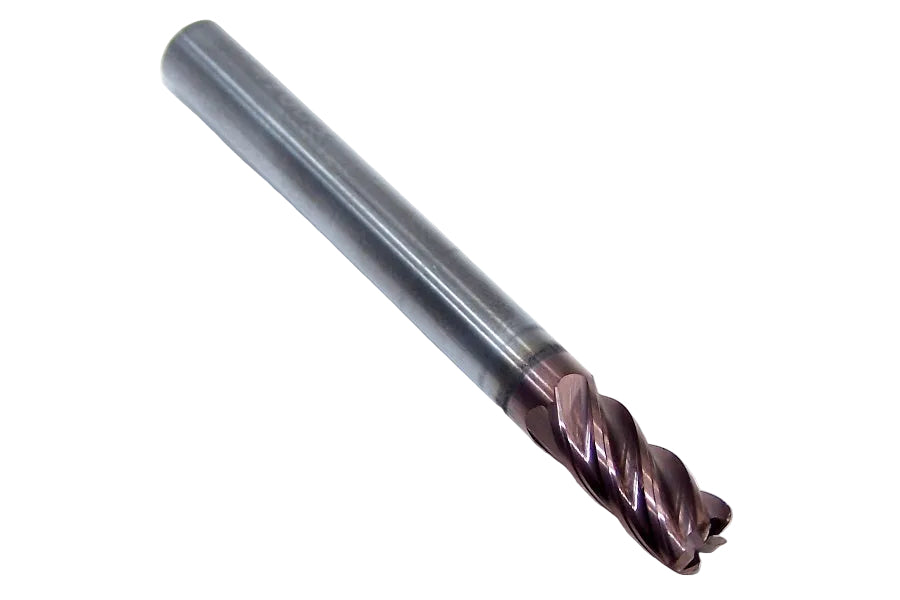

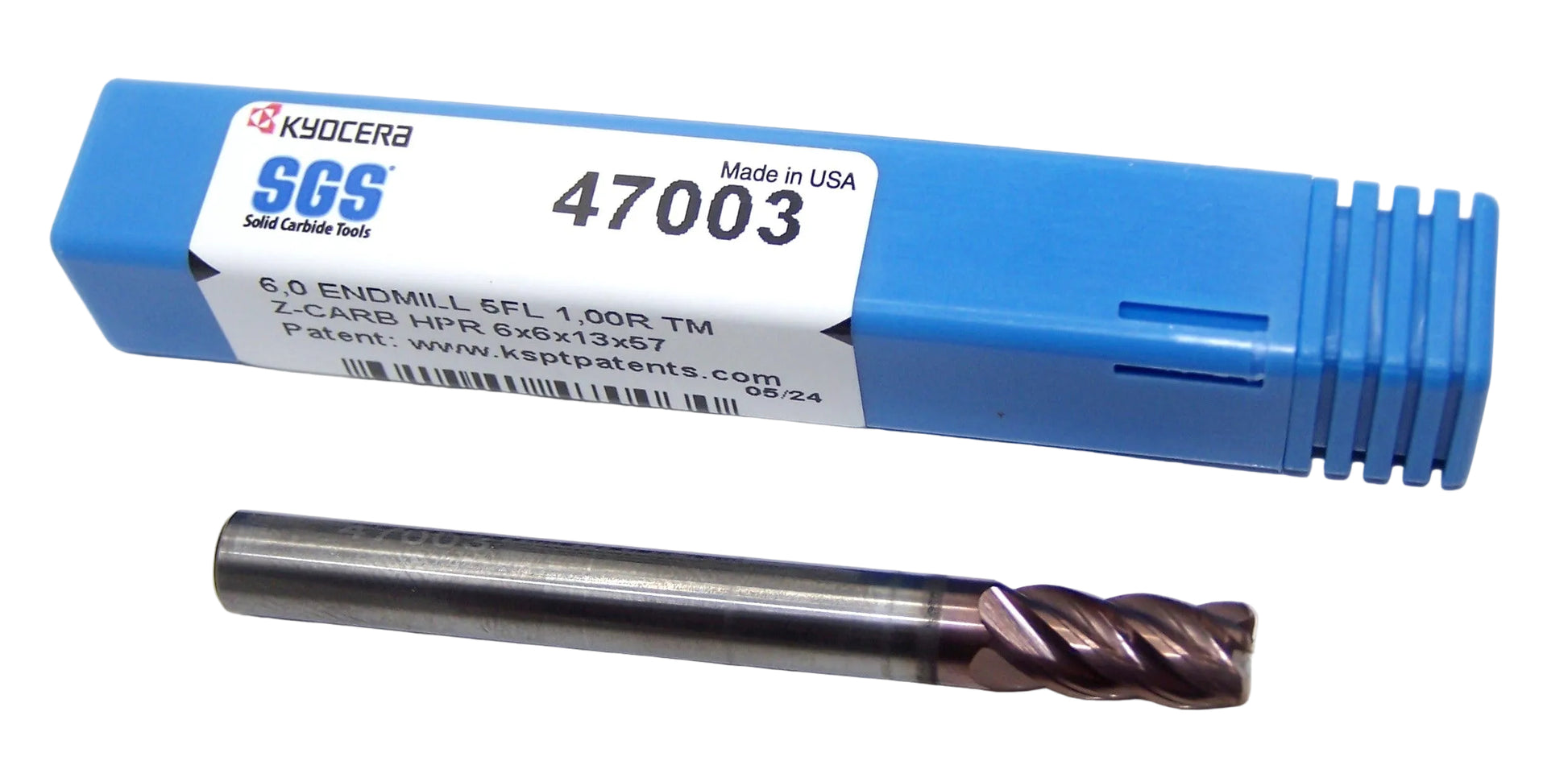

47003 Kyocera SGS 6.00mm Carbide 5 Flute End Mill .039 Radius .2362" Diameter 0.512" Flute 2.24" Length .236" Shank Z-Carb HPR

47003 Kyocera SGS 6.00mm Carbide 5 Flute End Mill .039 Radius .2362" Diameter 0.512" Flute 2.24" Length .236" Shank Z-Carb HPR

Part Number: 47003

SKU: 158094521336

Manufacturer: Kyocera SGS

$18.00 USD
$18.00 USD
Sale Sold out

Low stock: 8 left

PRODUCT STATS

DIAMETER 0.2362"
FLUTE NUMBER 5
LENGTH OF CUT 0.5118"
OVERALL LENGTH 2.24"
SHANK SIZE 0.236"
SIZE 6.00mm
ADAPTER STYLE MACHINE SIDE Straight-Cylindrical
BRAND Kyocera SGS
CORNER RADIUS 0.0394"
CUTTING SIZE 6.00mm
CUT DIRECTION Up Cut
END STYLE Radius
FINISH TYPE Special
FLUTE STYLE Variable Helix
HELIX ANGLE 37.0°
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Cast Iron, Hardened Steel
MPN 47003
USABLE LENGTH 0.5118"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

MADE IN USA!

Kyocera SGS Carbide End Mill - High Performance 5 Flute Z-Carb

  • An ideal balance of helix, indexing, flute depth, rake, and relief
  • Variable indexing for chatter supression and patented edge geometry for shearing and strength
  • Chatter-free geometry allows deep cutting and high speed maching
  • Enhanced corner geometry with tight tolerance corner radii
  • Helix Angle 37°
  • Variable Rake
  • Non Center Cutting
  • (TI-NAMITE-M) Coating
  • ISO certified manufacturing

Applications

  • Steel - primary
  • Stainless Steel - primary
  • Cast Iron - primary
  • High Temp Alloy - primary
  • Hardened Materials - secondary



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
