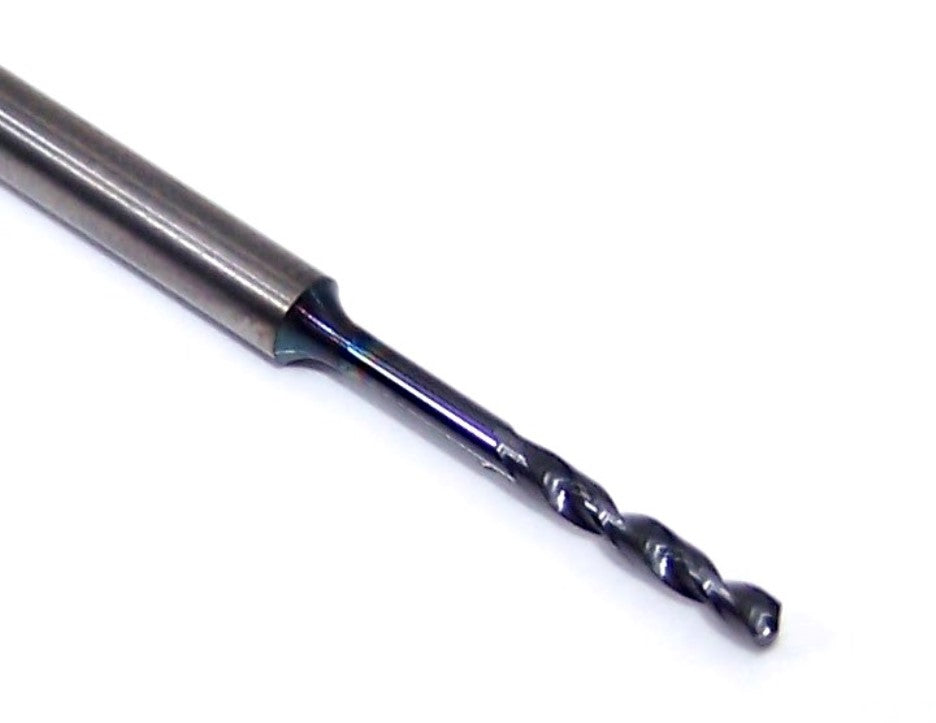

51271 SGS Carbide 1/16" Carbide Drill 2 Flute External Coolant AlTiN .0625" Diameter 0.4375" Flute 2.00" Length .125" Shank 145° Point
51271 SGS Carbide 1/16" Carbide Drill 2 Flute External Coolant AlTiN .0625" Diameter 0.4375" Flute 2.00" Length .125" Shank 145° Point
Part Number: 51271
SKU: 156752746987
Manufacturer: Kyocera SGS
Regular price
$53.50 USD
Regular price
Sale price
$53.50 USD
Unit price
/
per
Low stock: 2 left
Couldn't load pickup availability
PRODUCT STATS
DIAMETER | 0.0625" |
FLUTE NUMBER | 2 |
LENGTH OF CUT | 0.4375" |
OVERALL LENGTH | 2.0" |
SHANK SIZE | 0.125" |
SIZE | 1/16" |
BRAND | Kyocera SGS |
CUTTING SIZE | 1/16" |
END STYLE | Drill Point |
FINISH TYPE | ALTiN |
FLUTE DIRECTION | Right Hand |
FLUTE STYLE | Spiral |
INCLUDED POINT ANGLE | 145.0° |
MATERIAL | Solid Carbide |
MATERIALS CUT | Steel, Stainless Steel, Hardened Steel |
MPN | 51271 |
Kyocera Series Hi-PerCarb Carbide Drill
- Solid Carbide Drill
- Ti-Namite-A (AlTiN) coated
- 145° point angle
- 32° flute helix angle
- 4 margin design improves accuracy and surface finish along with increased strength for aggressive drilling
- Specialized self-centering notched point eliminates the need for spot drilling decreasing thrust and deflection
- Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
- Recommended for material <50 HRc
Applications
- Primary for Steel
- Primary for Stainless Steel
- Primary for Hardened Materials
- Secondary for Cast Iron
- Secondary for non-ferrous materials
- Secondary for High Temp Alloys
