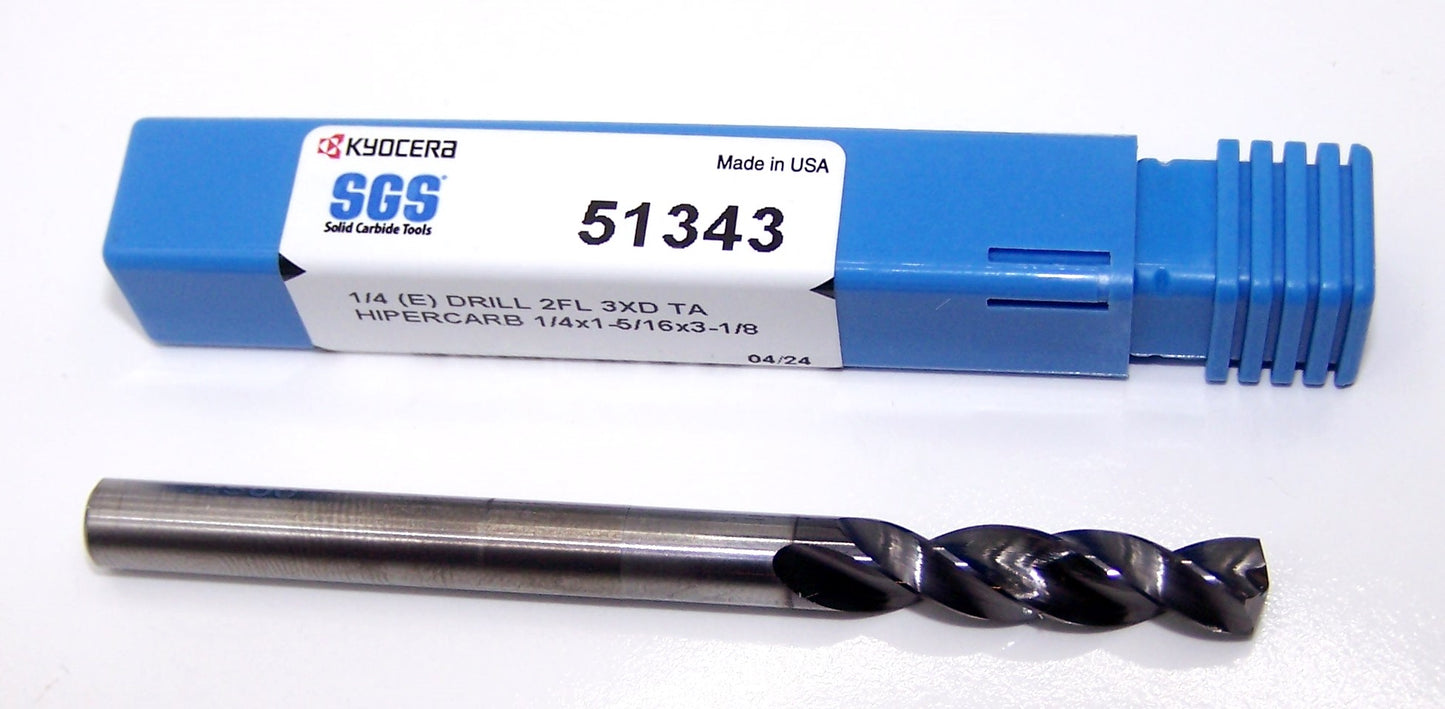

51343 SGS Carbide 1/4" Carbide Drill 2 Flute External Coolant AlTiN .2500" Diameter 1.325" Flute 3.125" Length .250" Shank 145° Point

51343 SGS Carbide 1/4" Carbide Drill 2 Flute External Coolant AlTiN .2500" Diameter 1.325" Flute 3.125" Length .250" Shank 145° Point

Part Number: 51343

SKU: 156750563423

Manufacturer: Kyocera SGS

$58.95 USD
$58.95 USD
Sale Sold out

Low stock: 3 left

PRODUCT STATS

DIAMETER 0.2500"
FLUTE NUMBER 2
LENGTH OF CUT 1.325"
OVERALL LENGTH 3.125"
SHANK SIZE 0.25"
SIZE 1/4"
BRAND Kyocera SGS
CUTTING SIZE 1/4"
END STYLE Drill Point
FINISH TYPE ALTiN
FLUTE DIRECTION Right Hand
FLUTE STYLE Spiral
INCLUDED POINT ANGLE 145.0°
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Hardened Steel
MPN 51343
Kyocera SGS Catalogs

Kyocera Series Hi-PerCarb Carbide Drill

  • Solid Carbide Drill
  • Ti-Namite-A (AlTiN) coated
  • 145° point angle
  • 32° flute helix angle
  • 4 margin design improves accuracy and surface finish along with increased strength for aggressive drilling
  • Specialized self-centering notched point eliminates the need for spot drilling decreasing thrust and deflection
  • Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
  • Recommended for material <50 HRc

Applications

  • Primary for Steel
  • Primary for Stainless Steel
  • Primary for Hardened Materials
  • Secondary for Cast Iron
  • Secondary for non-ferrous materials
  • Secondary for High Temp Alloys

The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
