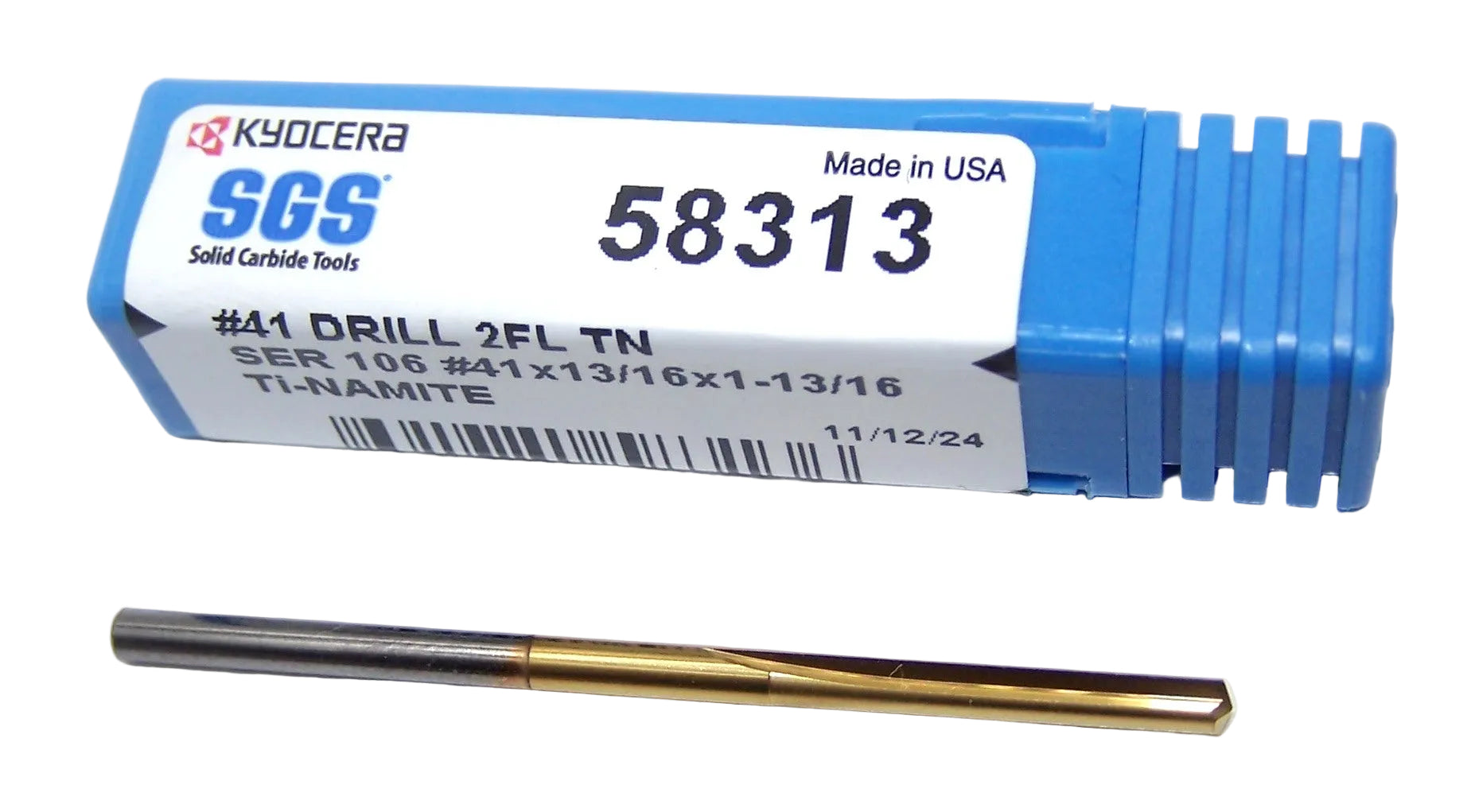

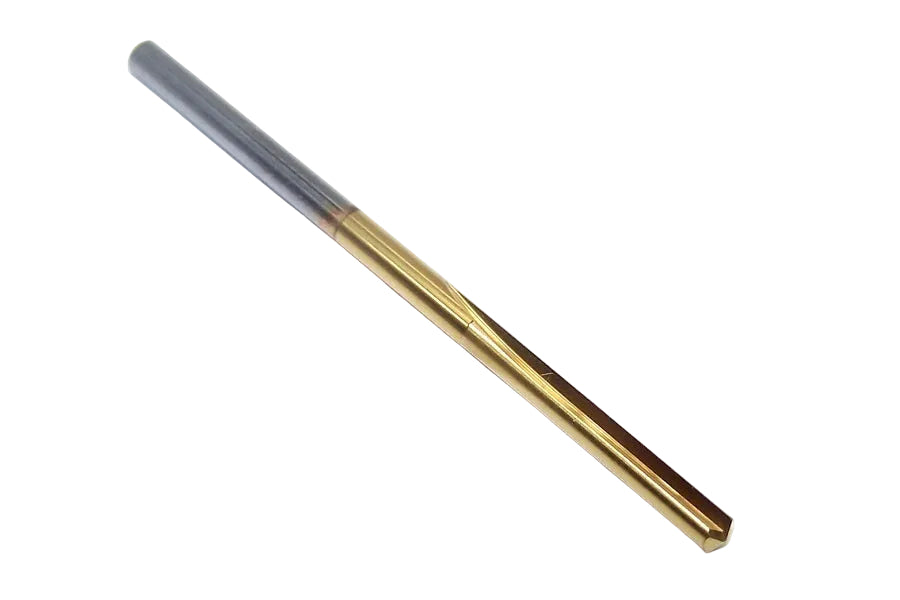

58313 Kyocera #41 Carbide 2 Flute Straight Flute Drill .0960" Diameter .8125" Flute 1.8125" Length .096" Shank 140° Point Tin Coated

58313 Kyocera #41 Carbide 2 Flute Straight Flute Drill .0960" Diameter .8125" Flute 1.8125" Length .096" Shank 140° Point Tin Coated

Part Number: 58313

SKU: 157975080575

Manufacturer: Kyocera SGS

$6.50 USD
$6.50 USD
Sale Sold out

Out of stock? Contact us to see if more are available!

Out of stock

PRODUCT STATS

DIAMETER 0.0960"
FLUTE NUMBER 2
LENGTH OF CUT 0.8125"
OVERALL LENGTH 1.81"
SHANK SIZE 0.096"
SIZE #41
BRAND Kyocera SGS
CUTTING SIZE #41
CUT DIRECTION Up Cut
ENDS Single
END STYLE Drill Point
FINISH TYPE TiN
FLUTE STYLE O Helix - Straight
INCLUDED POINT ANGLE 140.0°
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Cast Iron, Aluminum, Copper, Hardened Steel, Titanium
MPN 58313
USABLE LENGTH 0.8125"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Authorized Kyocera SGS Distributor - let me know if you need something added to the website.

Kyocera SGS Series 106 is a line of general -purpose solid carbide straight drills.  These tools are engineered for versatility in a variety of materials.

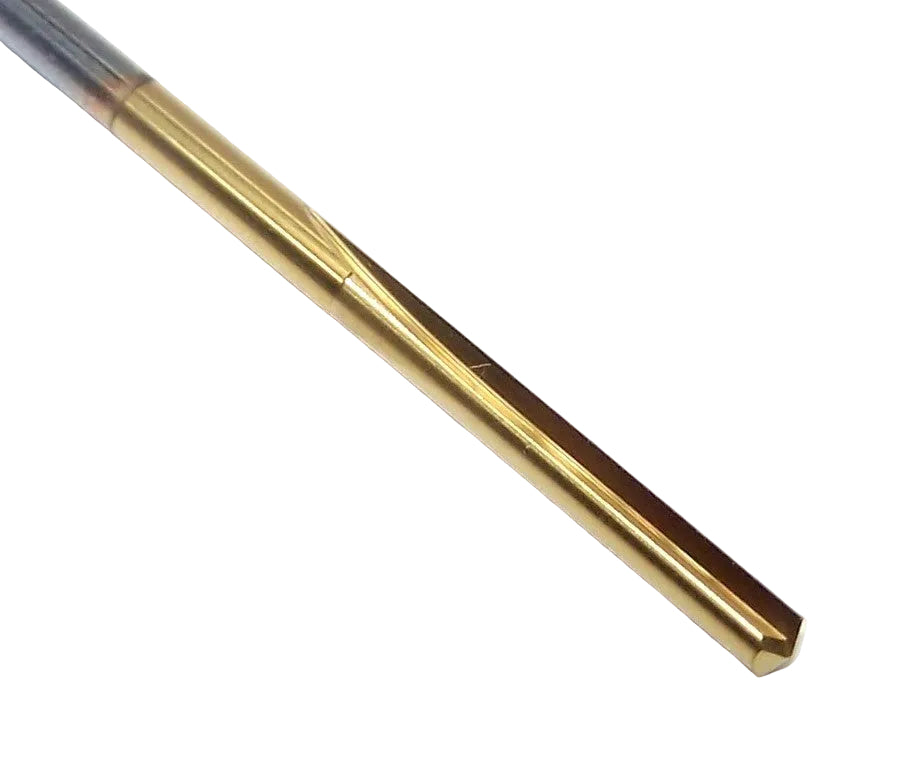

  • Straight flute design (non-helical) which provides high rigidity for stable drilling
  • Standard 140° point angle
  • 2-Flute design
  • 0° flute helix angle
  • Made from high quality micrograin solid carbide for improved wear resistance and longevity
  • Straight shank - equal to the cutting diameter

Applications

  • Primary for Steel
  • Primary for Stainless Steel
  • Primary for Cast Iron
  • Secondary for Hardened Steel
  • Secondary for Aluminum
  • Secondary for Copper
  • Secondary for Brass
  • Secondary for Plastic

The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
