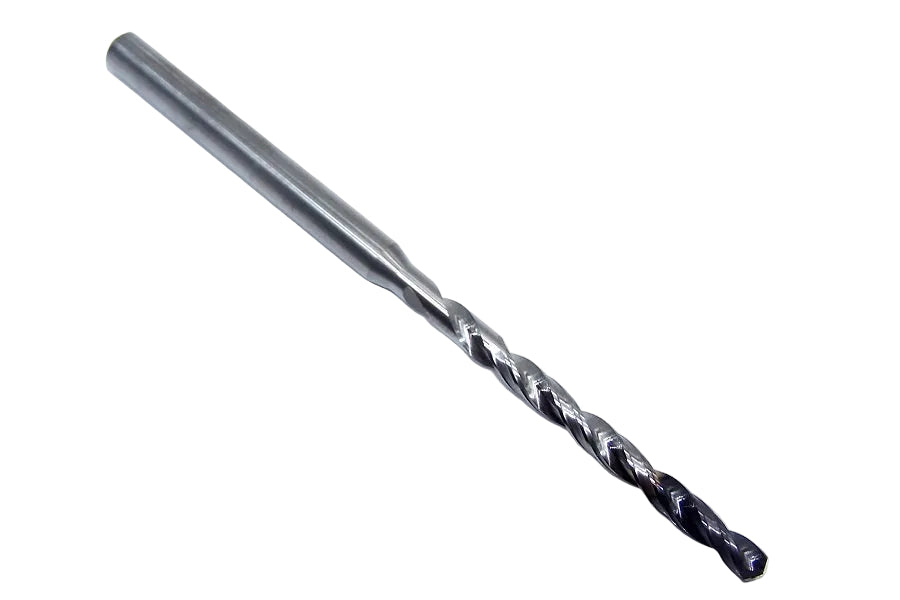

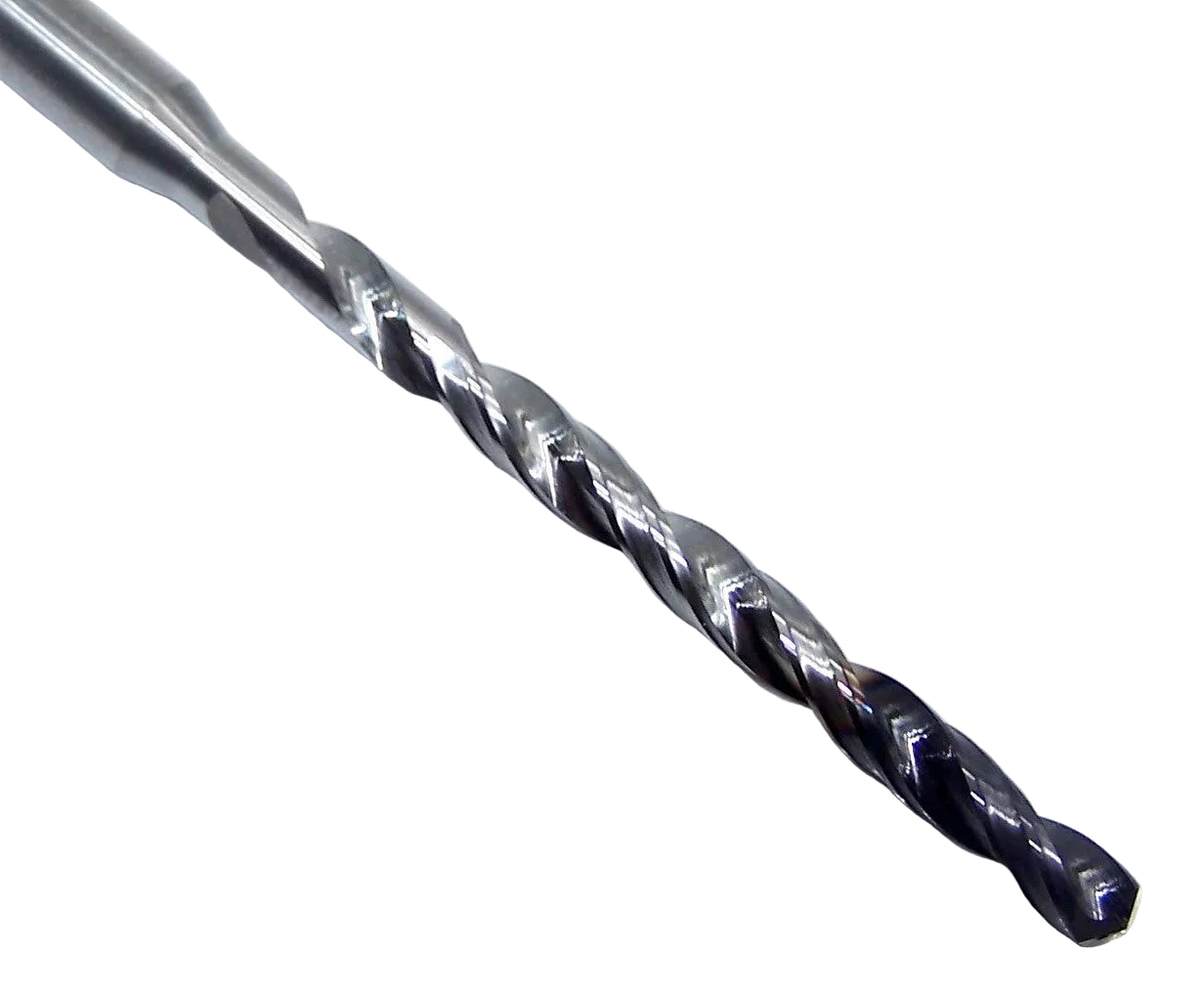

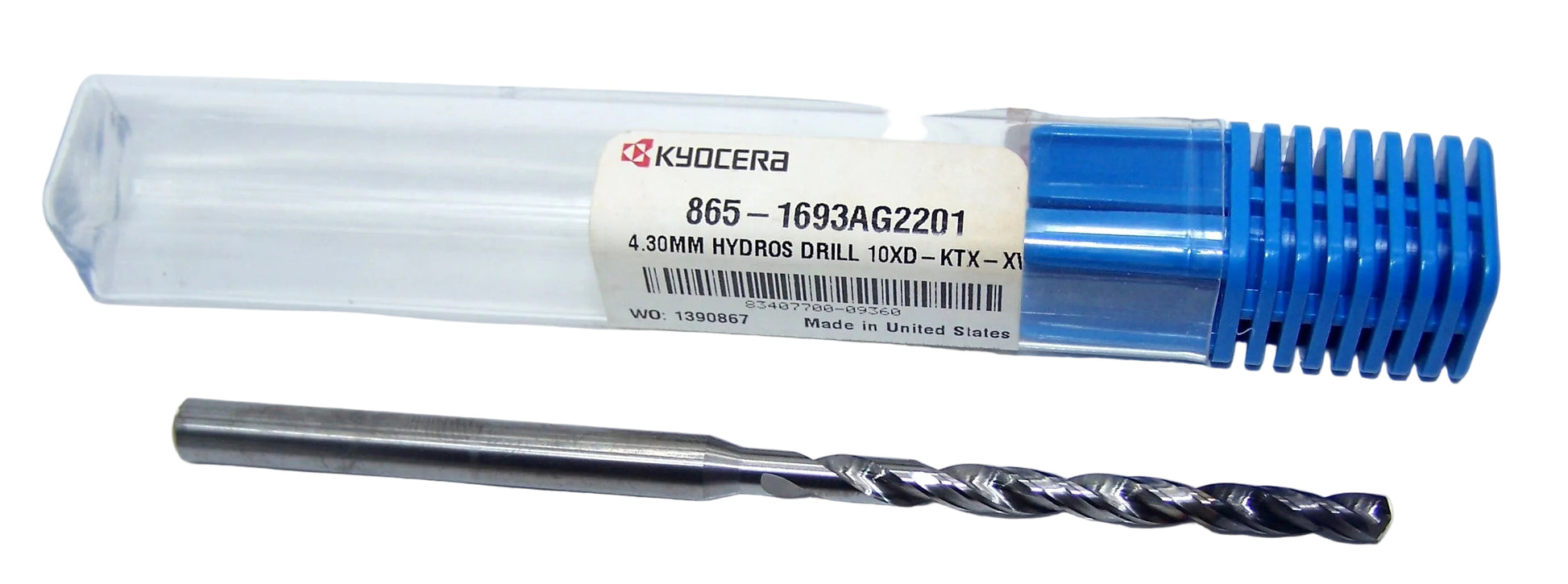

865-1693AG2201 Kyocera 4.30mm Carbide Through Coolant Drill AlTiN .1693" Diameter 1.69" Flute 2.20" Reach 4.33" Length .236" Shank

865-1693AG2201 Kyocera 4.30mm Carbide Through Coolant Drill AlTiN .1693" Diameter 1.69" Flute 2.20" Reach 4.33" Length .236" Shank

Part Number: 865-1693AG2201

SKU: 800482412109

Manufacturer: Kyocera Microtools

$45.00 USD
$94.55 USD $45.00 USD
Sale Sold out

Low stock: 5 left

PRODUCT STATS

DIAMETER 0.1693"
FLUTE NUMBER 2
LENGTH OF CUT 1.6929"
OVERALL LENGTH 4.33"
SHANK SIZE 0.2362"
SIZE 4.30mm
BRAND Kyocera Microtools
CUTTING SIZE 4.30mm
CUT DIRECTION Up Cut
END STYLE Drill Point
EXTENDED REACH 2.201"
FINISH TYPE ALTiN
FLUTE DIRECTION Right Hand
FLUTE STYLE Internal - Through Coolant
INCLUDED POINT ANGLE 135.0°
MATERIAL Solid Carbide
MATERIALS CUT Steel, Aluminum, Stainless Steel, Hardened Steel, Plastic, Cast Iron
MPN 865-1693AG2201
USABLE LENGTH 2.201"
WORK DIRECTION Right Hand
Click to download Speeds and Feeds PDF

Made in the USA

Kyocera Hydros 865 Series coolant-thru solid carbide deep drill

  • Sub Micron Grain Carbide
  • Through Drill Coolant Flow at Tip
  • Superior Hole Wall Surface Finishes
  • 135° 6-Facet Self-Centering Point
  • Double Margin Design
  • Straight Through Drilling without Pecking
  • AlTiN Nano Coating



Materials Drilled

  • Steel
  • Hardened Steel
  • Stainless Steel
  • Cast Iron
  • Aluminum
  • Graphite
  • Copper
  • Plastic
  • Nickel/Cobalt
  • Titanium



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
