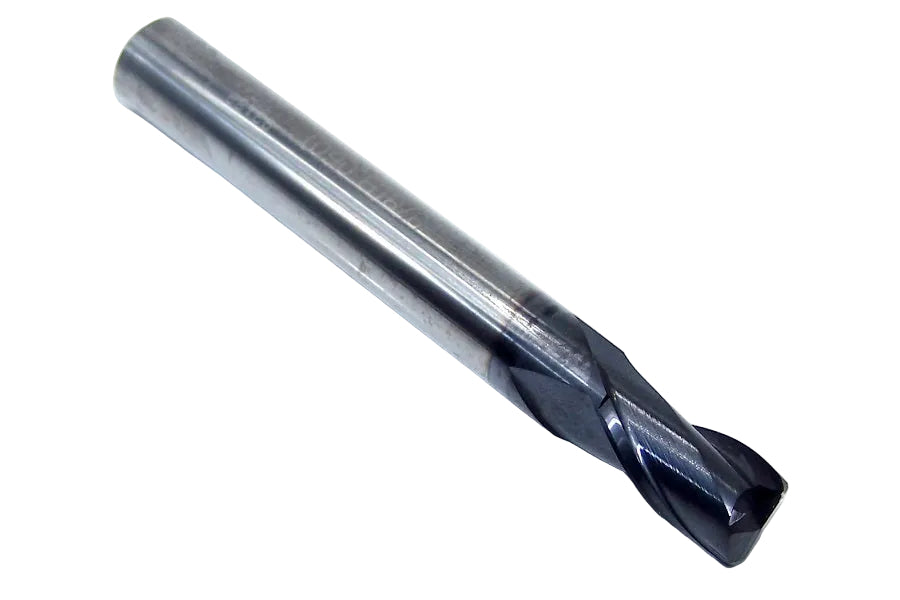

93188 YG1 3/8" Carbide 2 Flute End Mill X-Power for Hard Materials .060" Radius .375" Diameter 0.625" Flute 3.00" Length .375" Shank Stub

93188 YG1 3/8" Carbide 2 Flute End Mill X-Power for Hard Materials .060" Radius .375" Diameter 0.625" Flute 3.00" Length .375" Shank Stub

Part Number: 93188

SKU:

Manufacturer: YG-I

$28.60 USD
$45.10 USD $28.60 USD
Sale Sold out

15 in stock

PRODUCT STATS

DIAMETER 0.3750"
FLUTE NUMBER 2
LENGTH OF CUT 0.6250"
OVERALL LENGTH 3.0"
SHANK SIZE 0.375"
SIZE 3/8"
BRAND YG-I
CORNER RADIUS 0.06"
CUTTING SIZE 3/8"
CUT DIRECTION Up Cut
END STYLE Radius
FINISH TYPE TiALN
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Steel, Titanium, Stainless Steel, Hardened Steel, High Temp Alloy, Nickel, Cast Iron
MPN 93188
USABLE LENGTH 0.625"
WORK DIRECTION Right Hand

YG1 Series X-Power - High Performance Corner Radius End Mill

  • For high hardness machining - up to 65HRc
  • 2 Flute for chip evacuation and slotting
  • Stub length flute for enhanced rigidity for shoulder milling and shallow slotting with high precicion
  • Corner radius significantly increased the tool's durability in tough-to-machine applications compared to standard square end mills
  • High performance milling of stainless steel, titanium, and heat-resistant super alloys
  • For high speed machining and finishing in hardened steels
  • TiAlN coating to be used in wet or dry cutting and high-speed applications where heat is a factor
  • Premium ultra fine micrograin carbide

Materials Cut

  • Hardened Steels and Alloy Steels
  • Stainless Steel
  • Cast Iron
  • Titanium and Nickel-Based Alloys



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
