AGPLSD5.5X139 Nachi 5.50mm Long Deep Hole HSS-CO Drill .2165" Diameter 3.58" Flute 5.47" Length .3165" Shank 118° Point
AGPLSD5.5X139 Nachi 5.50mm Long Deep Hole HSS-CO Drill .2165" Diameter 3.58" Flute 5.47" Length .3165" Shank 118° Point
Part Number: AGPLSD5.5X139
SKU:
Manufacturer: Nachi
Out of stock? Contact us to see if more are available!
Out of stock
Couldn't load pickup availability
PRODUCT STATS
| DIAMETER | 0.2165" |
| FLUTE NUMBER | 2 |
| LENGTH OF CUT | 3.5827" |
| OVERALL LENGTH | 5.47" |
| SHANK SIZE | 0.2165" |
| SIZE | 5.50mm |
| BRAND | Nachi |
| CUTTING SIZE | 5.50mm |
| CUT DIRECTION | Up Cut |
| ENDS | Single |
| END STYLE | Drill Point |
| FINISH TYPE | ALCRN |
| FLUTE DIRECTION | Right Hand |
| FLUTE STYLE | Spiral |
| INCLUDED POINT ANGLE | 118.0° |
| MATERIAL | High Speed Steel |
| MATERIALS CUT | Steel, Aluminum, Composite Materials, Stainless Steel, Hardened Steel, Cast Iron |
| MPN | AGPLSD5.5X139 |
| USABLE LENGTH | 3.58" |
| WORK DIRECTION | Right Hand |
Made in Japan

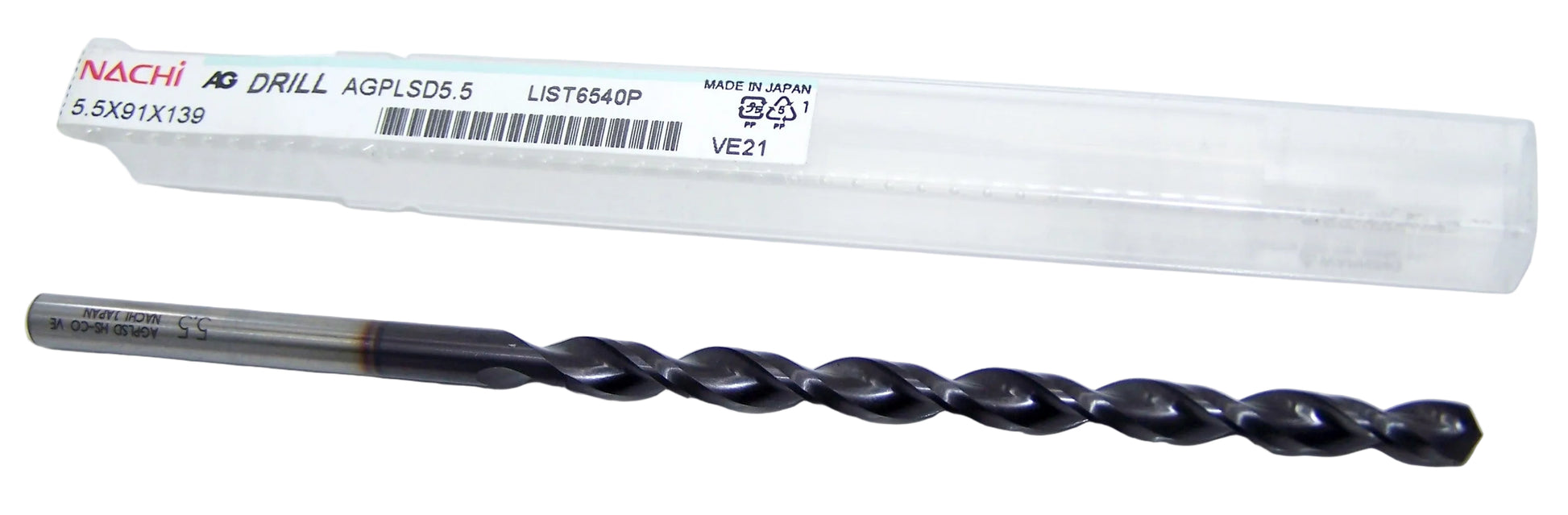

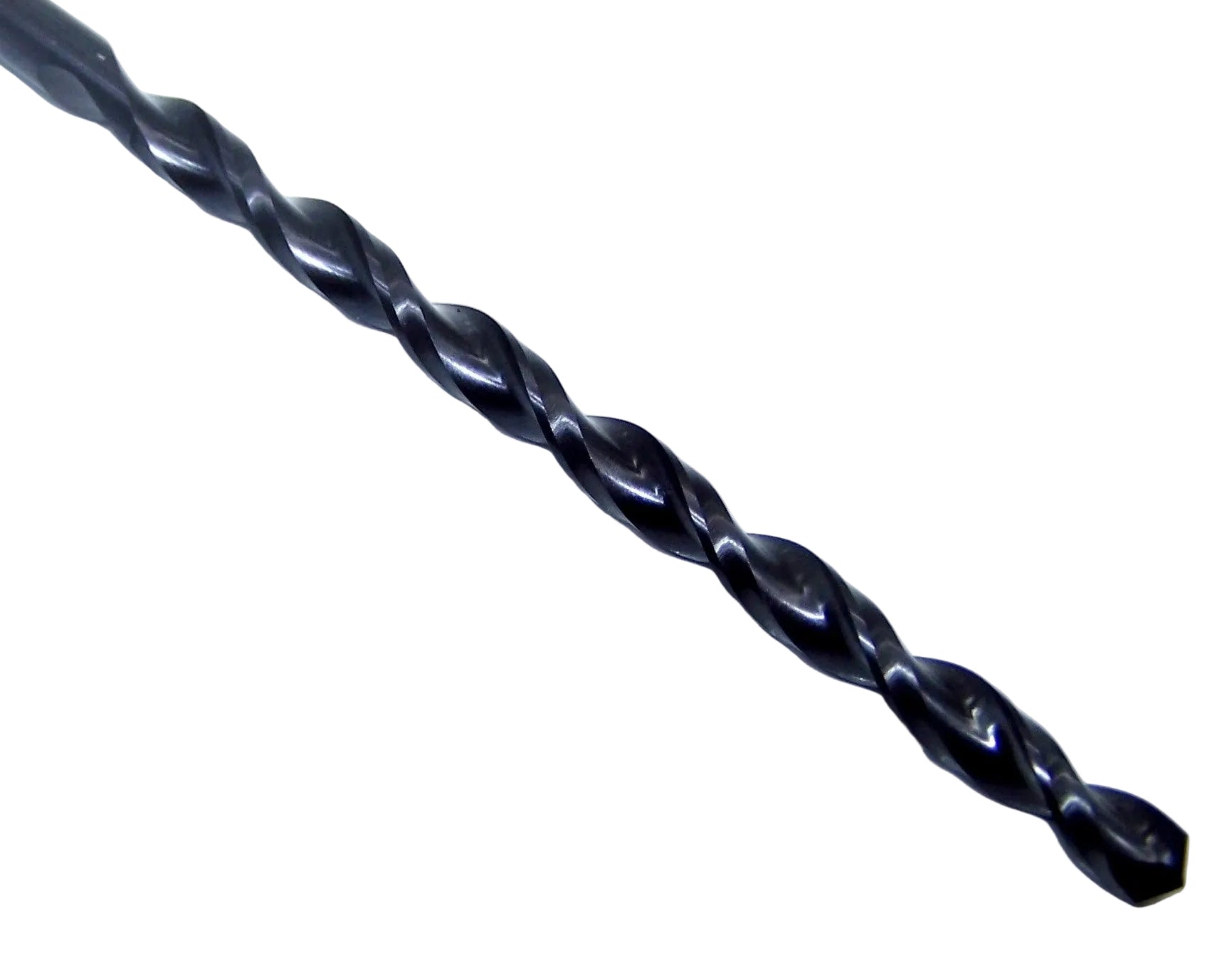

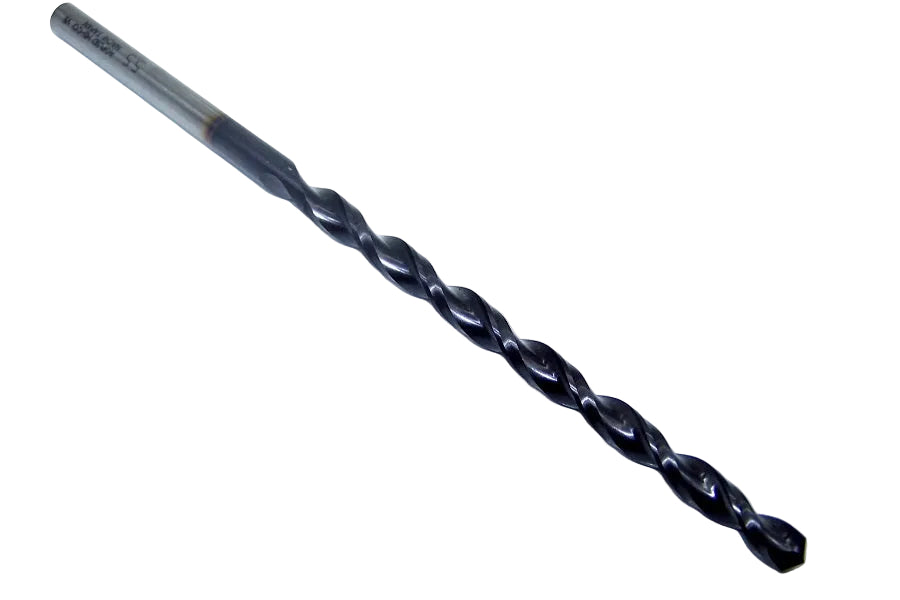

This is a high-performance Nachi AG Long Power Drill (AGPLSD). Engineered for precision deep-hole machining, this drill features a parabolic flute geometry that allows for stepless drilling without constant pecking, maintaining excellent rigidity and chip evacuation.
Key Features
-
Deep Hole Capability: Optimized for drilling depths up to 14xD–20xD, making it ideal for mold and deep-hole applications.
-
AG Coating: Multi-layer AlCr coating provides superior heat resistance and significantly extends tool life compared to standard HSS bits.
-
Non-Stepped Slot Shape: Improves chip-flow efficiency while maintaining high structural rigidity for accurate hole placement.
Materials
- Carbon Steel
- Alloy Steel
- Tool Steel
- Die Steel
- Cast Iron
