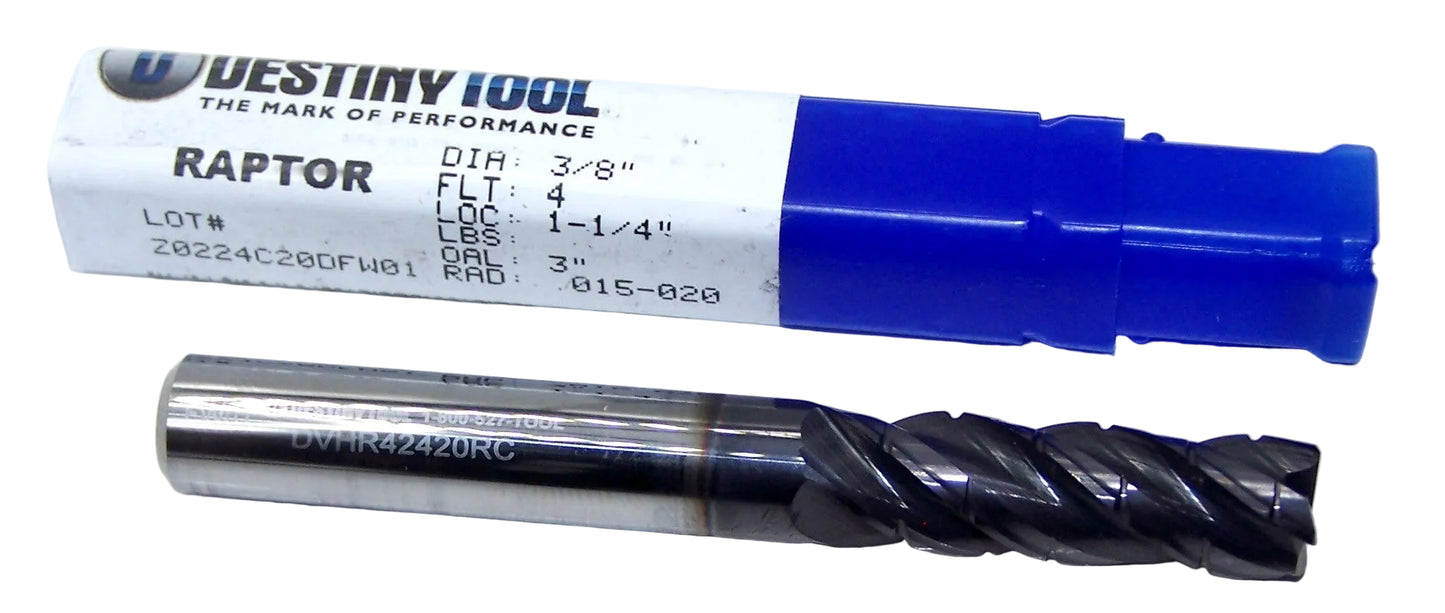

DVHR42420RC Destiny Tool 3/8" Carbide 4 Flute End Mill Rougher .020" Radius TiAlN .3750" Diameter 1.25" Flute 3.00" Length .375" Shank

DVHR42420RC Destiny Tool 3/8" Carbide 4 Flute End Mill Rougher .020" Radius TiAlN .3750" Diameter 1.25" Flute 3.00" Length .375" Shank

Part Number: DVHR42420RC

SKU: 157584189234

Manufacturer: Destiny Tool

$69.25 USD
$84.75 USD $69.25 USD
Sale Sold out

Low stock: 7 left

PRODUCT STATS

DIAMETER 0.3750"
FLUTE NUMBER 4
LENGTH OF CUT 1.2500"
OVERALL LENGTH 3.0"
SHANK SIZE 0.375"
SIZE 3/8"
ADAPTER STYLE MACHINE SIDE Straight-Cylindrical
BRAND Destiny Tool
CORNER RADIUS 0.02"
CUTTING SIZE 3/8"
CUT DIRECTION Up Cut
END STYLE Radius
FINISH TYPE TiALN
FLUTE STYLE Rougher
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Hardened Steel, Titanium
MPN DVHR42420RC
USABLE LENGTH 1.25"
WORK DIRECTION Right Hand
Click to download Speeds and Feeds PDF

MADE IN USA!  -  Sale on this item

Destiny Tool DVHR Raptor Series End Mill with Chip-Splitter Roughing Flute

  • Double Variable Helix Angle 38° - extreme vibration dampening
  • Chip-Splitter flute grooves to break chips and allow for faster feed rates
  • Rough and finish with one tool
  • High metal removal rates for both heavy slotting (1 X D depth) and high-speed profiling
  • TiAlN Coating for wear resistance
  • Premium Sub-Micron Grain Carbide
  • Available in Square and Radius end style

Applications

  • Steel
  • Stainless Steel
  • Titanium
  • Inconel
  • High Temperature Alloys
