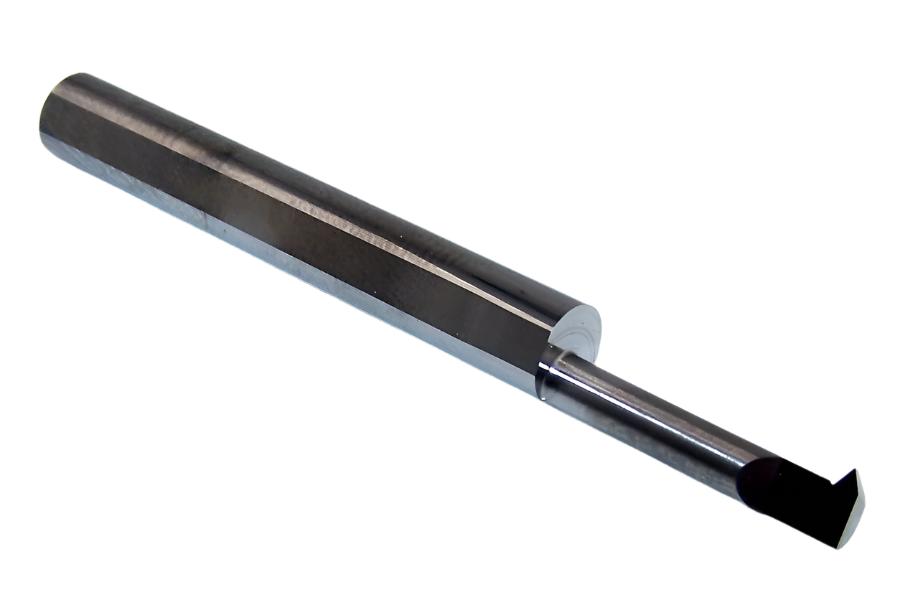

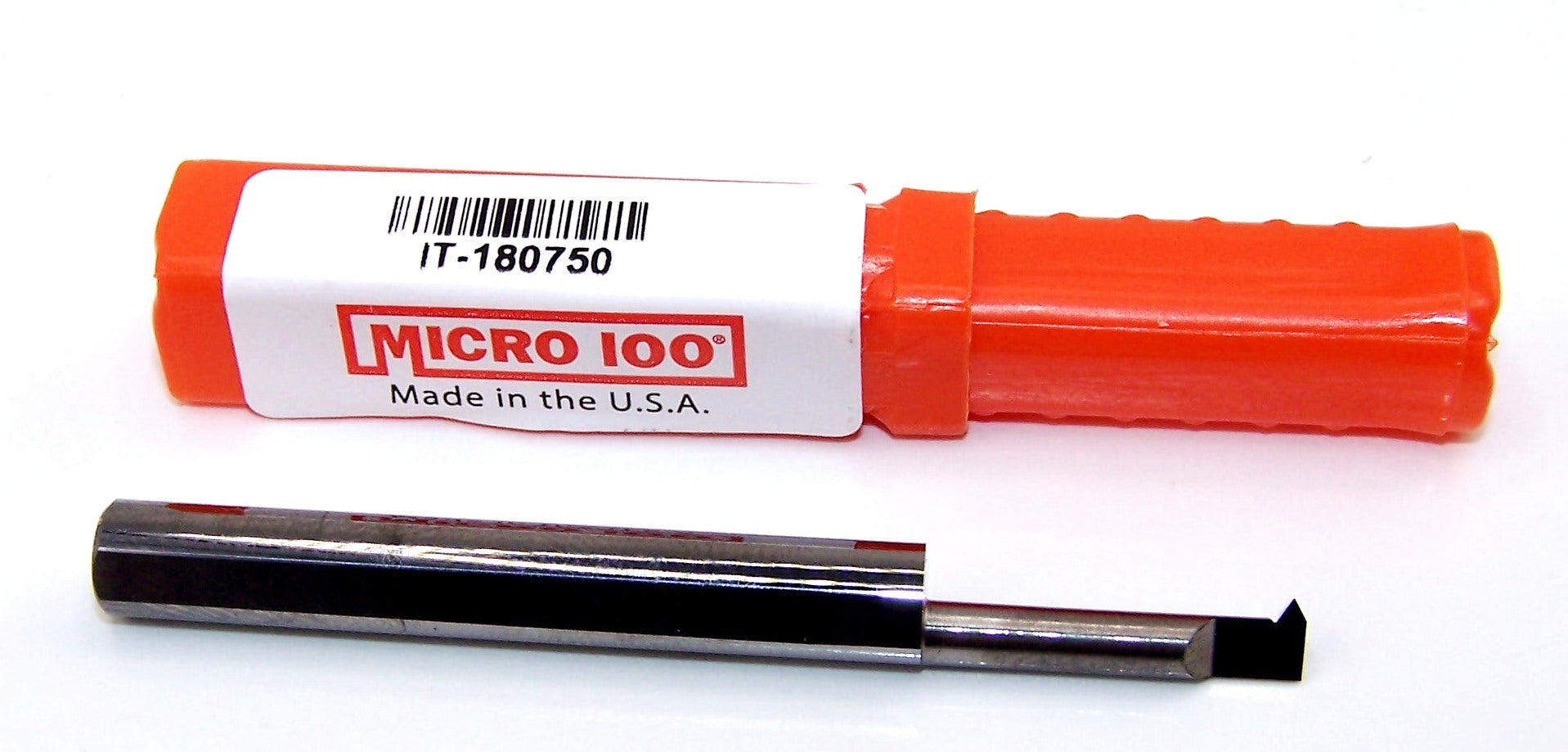

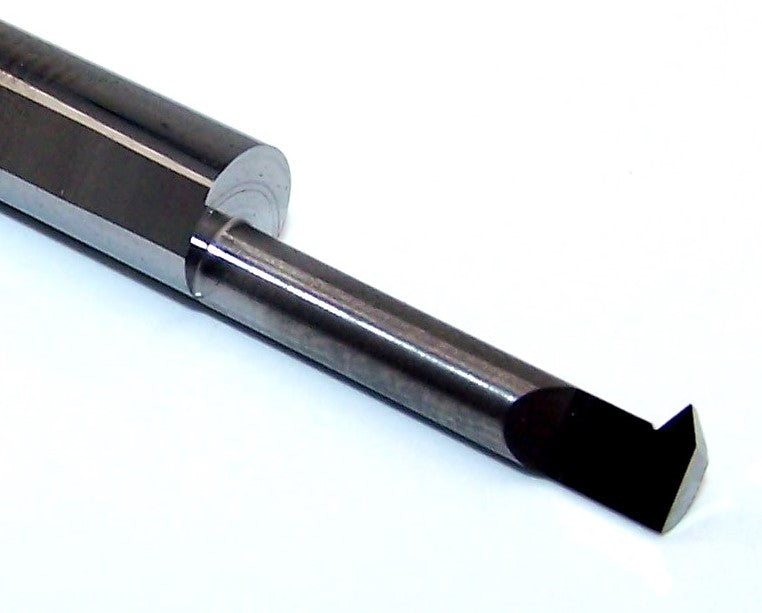

IT-180750 Micro100 0.180" Carbide Threading Bar 0.202" Min Bore Dia. 0.750" Max Depth 14-56 TPI 0.040" Projection 2.5" Length 0.2500" Shank

IT-180750 Micro100 0.180" Carbide Threading Bar 0.202" Min Bore Dia. 0.750" Max Depth 14-56 TPI 0.040" Projection 2.5" Length 0.2500" Shank

Part Number: IT-180750

SKU: 387520179056

Manufacturer: Micro 100

Regular price $37.85 USD
Regular price Sale price $37.85 USD
Sale Sold out

Low stock: 2 left

PRODUCT STATS

HEAD WIDTH 0.180"
MAX BORE DEPTH 0.750"
MINIMUM BORE DIAMETER 0.202"
THREADS PER INCH 14-56
OVERALL LENGTH 2.5"
SHANK SIZE 0.25"
PROJECTION 0.040"
BRAND Micro 100
CENTERLINE OFFSET 0.0550"
MATERIALS CUT Plastic, Steel, Aluminum, Copper, Titanium, Hardened Steel
MPN IT-180750
POINT OFFSET 0.023"
RADIUS 0.002"
WORK DIRECTION Right Hand

Micro 100 Carbide Threading Tool

  • Designed for threading multiple thread pitches (ANSI, UN, Metric 60°)
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • CNC ground solid carbide
  • Made in the USA

Applications

  • Steel
  • Hardened Steel
  • Cast Iron
  • Aluminum
  • Titanium
  • Plastic
