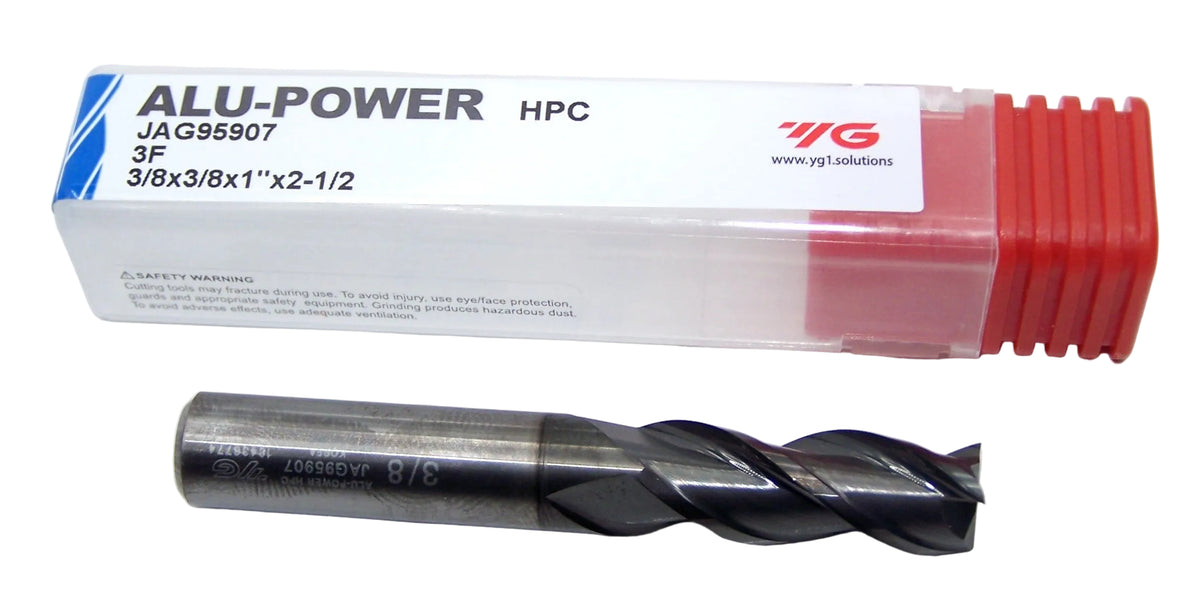

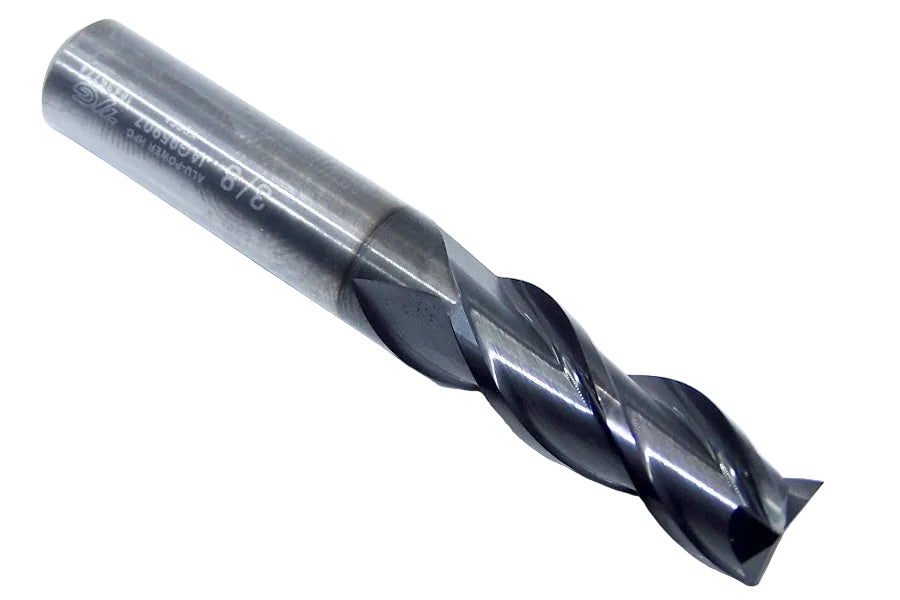

JAG95907 YG1 3/8" Carbide 3 Flute End Mill ALU-POWER HPC SQ DLC COATED .375" Diameter 1.00" Flute 2.50" OAL .375" Shank

JAG95907 YG1 3/8" Carbide 3 Flute End Mill ALU-POWER HPC SQ DLC COATED .375" Diameter 1.00" Flute 2.50" OAL .375" Shank

Part Number: JAG95907

SKU: 385295205202

Manufacturer: YG-I

$59.35 USD
$59.35 USD
Sale Sold out

Low stock: 6 left

PRODUCT STATS

DIAMETER 0.3750"
FLUTE NUMBER 3
LENGTH OF CUT 1.0000"
OVERALL LENGTH 2.5"
SHANK SIZE 0.375"
SIZE 3/8"
BRAND YG-I
CUTTING SIZE 3/8"
CUT DIRECTION Up Cut
END STYLE Center Cut, Square
FINISH TYPE DLC
FLUTE DIRECTION Right Hand
HELIX ANGLE 37.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Plastic, Composite Materials, Wood
MPN JAG95907
USABLE LENGTH 1.0"
WORK DIRECTION Right Hand

YG1 Alu-Power HPC End Mill for Aluminum and Non-Ferrous Materials

  • Maximum productivity in aluminum and non-ferrous machining for high speed applications (up to 35,000 rpm)
  • 3 flute and 37° helix ensure balanced cutting forces and reduced vibration at high feed rates
  • DLC (Diamond-Like-Carbon) provides extreme hardness and low coefficient of friction, eliminating built-up edge in sticky materials
  • Mirror finish polished flutes allow for rapid chip evacuation, preventing clogging during heavy slotting or pocketing
  • Versatile Machining including vertical ramping (up to 20°), trochoidal milling, and high speed milling
  • Center Cutting

Materials

  • Aluminum
  • Copper
  • Plastic
  • Brass
  • Wood



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
