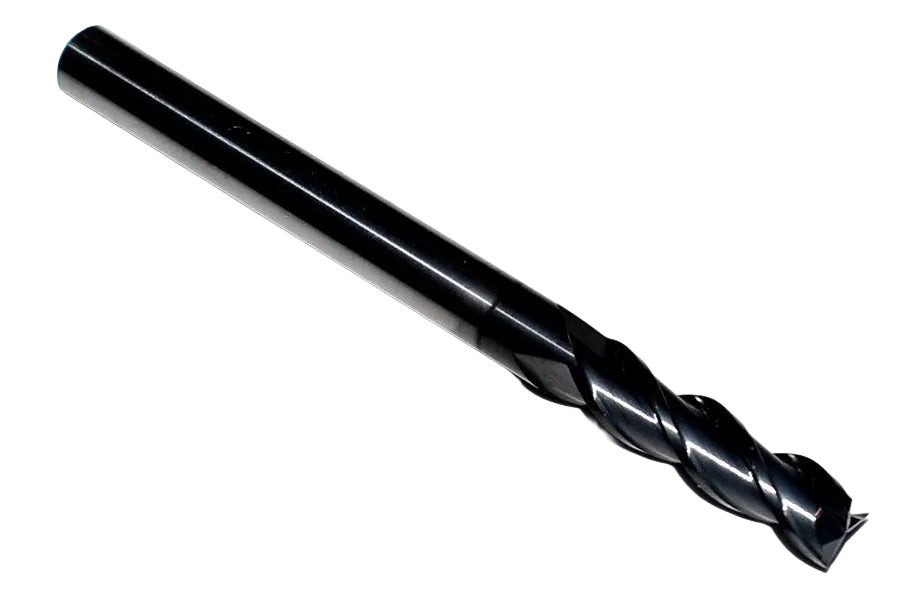

JAG95929 YG1 1/4" Carbide 3 Flute End Mill ALU-POWER HPS Square for Aluminum .250" Diameter .875" Flute 3.00" OAL .250" Shank

JAG95929 YG1 1/4" Carbide 3 Flute End Mill ALU-POWER HPS Square for Aluminum .250" Diameter .875" Flute 3.00" OAL .250" Shank

Part Number: JAG95929

SKU: 156019005946

Manufacturer: YG-I

$51.70 USD
$51.70 USD
Sale Sold out

Low stock: 6 left

PRODUCT STATS

DIAMETER 0.2500"
FLUTE NUMBER 3
LENGTH OF CUT 0.8750"
OVERALL LENGTH 3.0"
SHANK SIZE 0.25"
SIZE 1/4"
BRAND YG-I
CUTTING SIZE 1/4"
CUT DIRECTION Up Cut
END STYLE Center Cut, Square
FINISH TYPE DLC
FLUTE DIRECTION Right Hand
HELIX ANGLE 37.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Plastic, Composite Materials, Wood
MPN JAG95929
USABLE LENGTH 0.875"
WORK DIRECTION Right Hand

YG1 Alu-Power HPC End Mill for Aluminum and Non-Ferrous Materials

  • Maximum productivity in aluminum and non-ferrous machining for high speed applications (up to 35,000 rpm)
  • 3 flute and 37° helix ensure balanced cutting forces and reduced vibration at high feed rates
  • DLC (Diamond-Like-Carbon) provides extreme hardness and low coefficient of friction, eliminating built-up edge in sticky materials
  • Mirror finish polished flutes allow for rapid chip evacuation, preventing clogging during heavy slotting or pocketing
  • Versatile Machining including vertical ramping (up to 20°), trochoidal milling, and high speed milling
  • Center Cutting

Materials

  • Aluminum
  • Copper
  • Plastic
  • Brass
  • Wood



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
