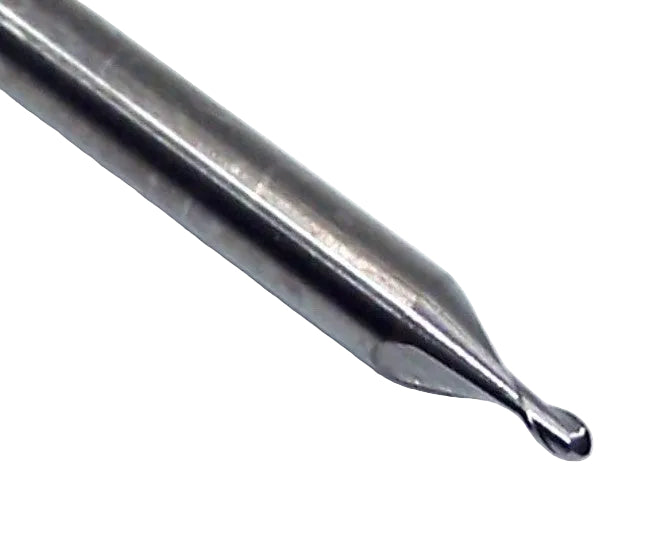

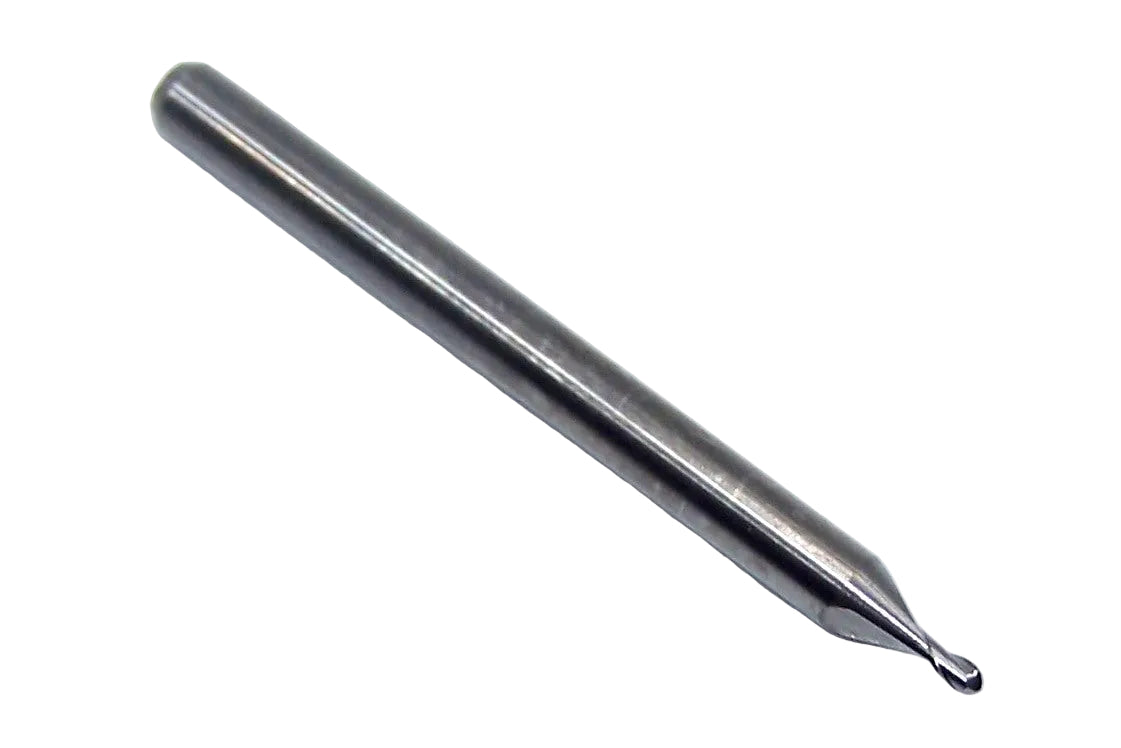

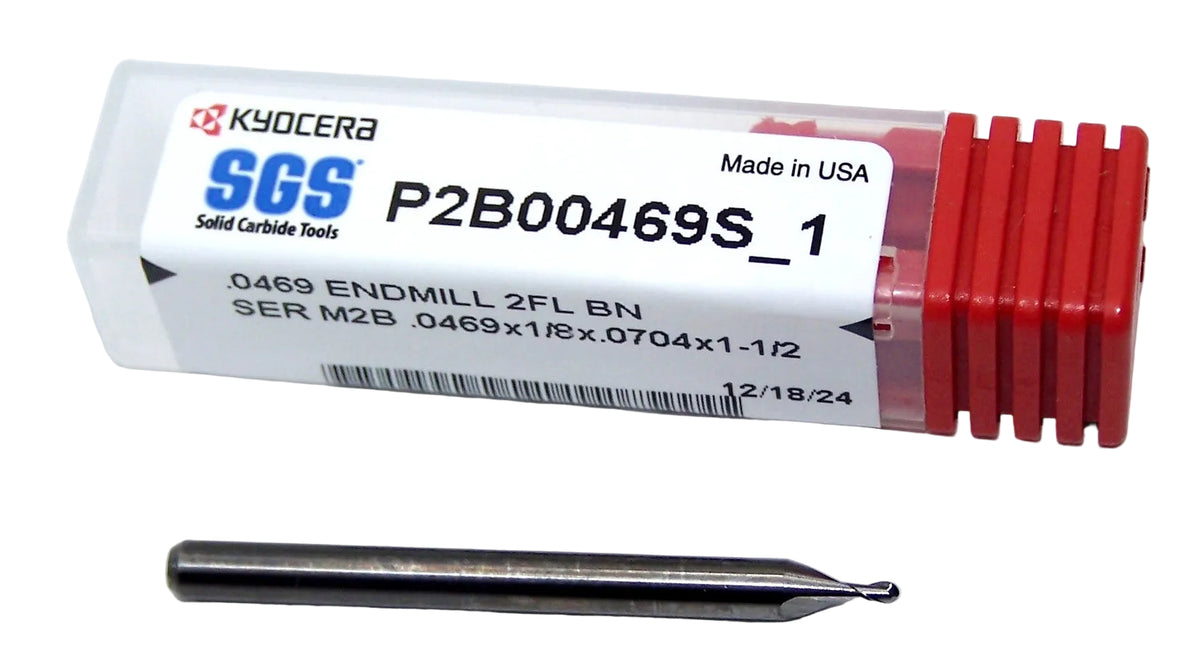

P2B00469S_1 Kyocera SGS 3/64" Carbide 2 Flute End Mill Ball End 0.0469" Diameter .070" Flute 1.50" Length .125" Shank

P2B00469S_1 Kyocera SGS 3/64" Carbide 2 Flute End Mill Ball End 0.0469" Diameter .070" Flute 1.50" Length .125" Shank

Part Number: P2B00469S_1

SKU: 800566182531

Manufacturer: Kyocera SGS

$9.00 USD
$9.00 USD
Sale Sold out

Low stock: 10 left

PRODUCT STATS

DIAMETER 0.0469"
FLUTE NUMBER 2
LENGTH OF CUT 0.0700"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 3/64"
BRAND Kyocera SGS
CUTTING SIZE 3/64"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Ball Nose
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Graphite, Copper, Carbon Fiber Reinforced Polymer, Plastic, Thermoset Plastic, High Density Plastic, Titanium, Steel
MPN P2B00469S_1
USABLE LENGTH 0.07"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Authorized Kyocera SGS Distributor - let me know if you need something added to the website.



Specal Make by Kyocera SGS Carbide Ball End Mill



  • Available in very small sizes
  • 2 flute design for improved chip evacuation compared to 4 flutes, while offering greater strength and higher feed rates than 2 flute
  • Square end, center cutting
  • 30° flute helix for balanced cutting
  • 1/8" shank diameter across the series
  • Optimized for deep pocket and side milling

Applications

  • Aluminum (primary)
  • Plastic (primary
  • copper (primary)
  • light steel (primary)





The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
