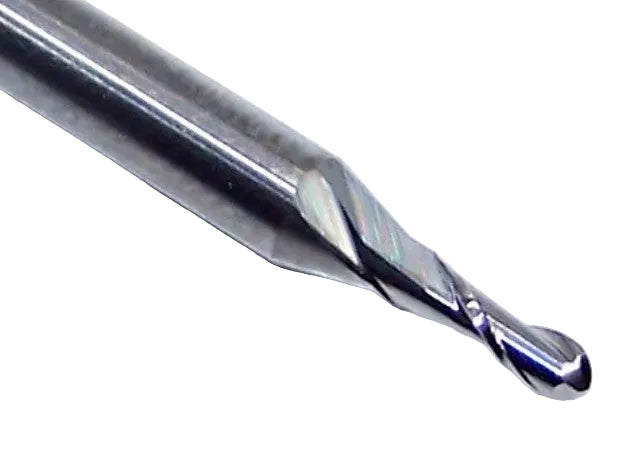

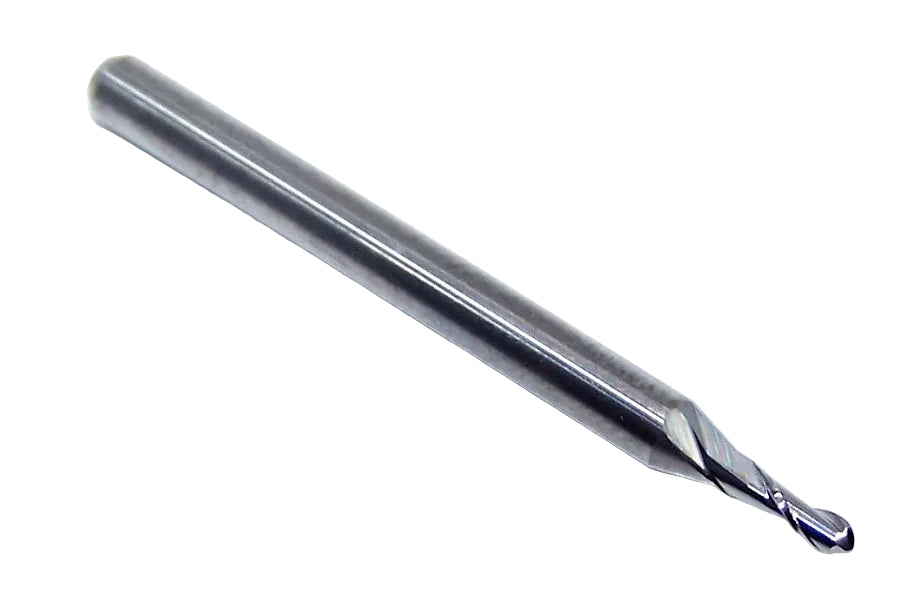

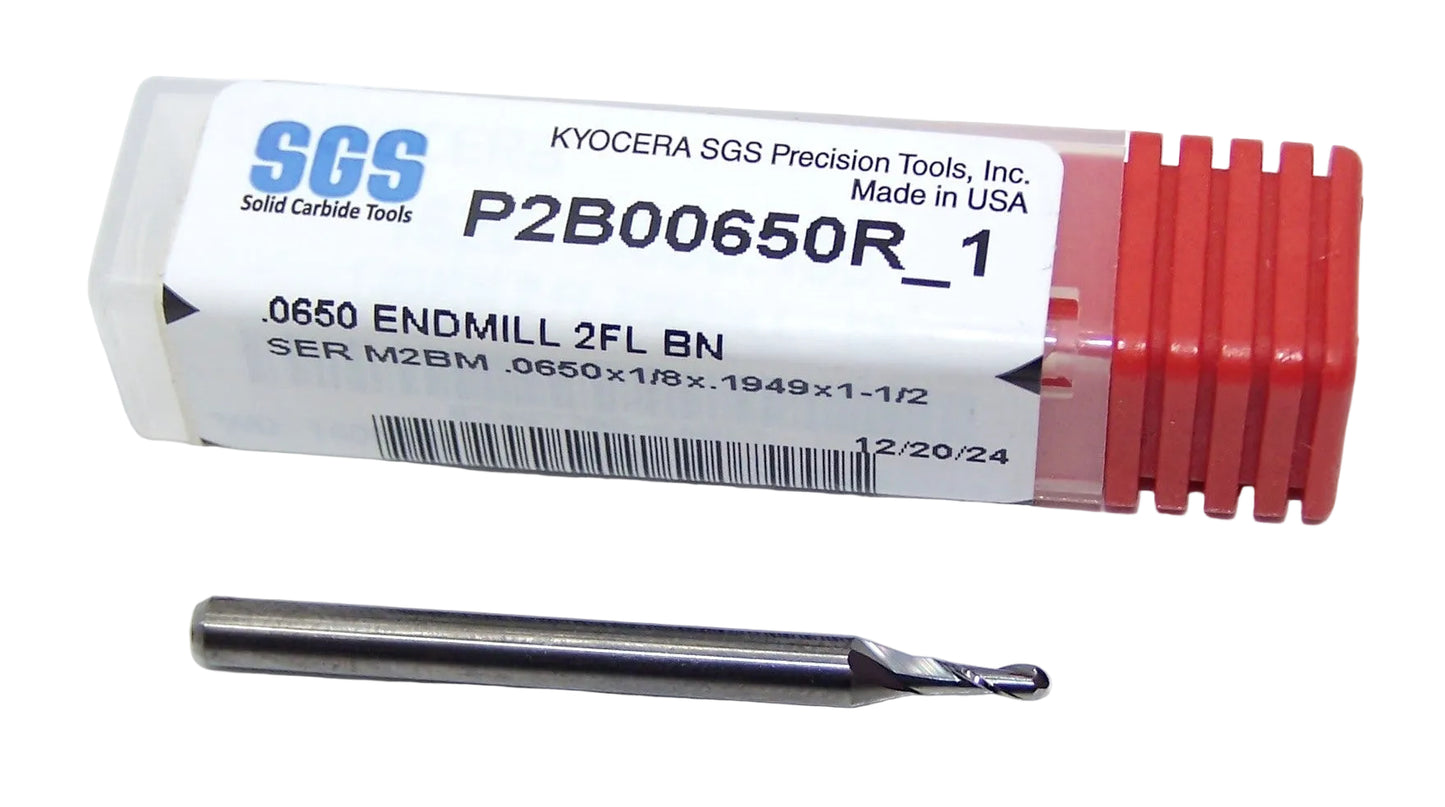

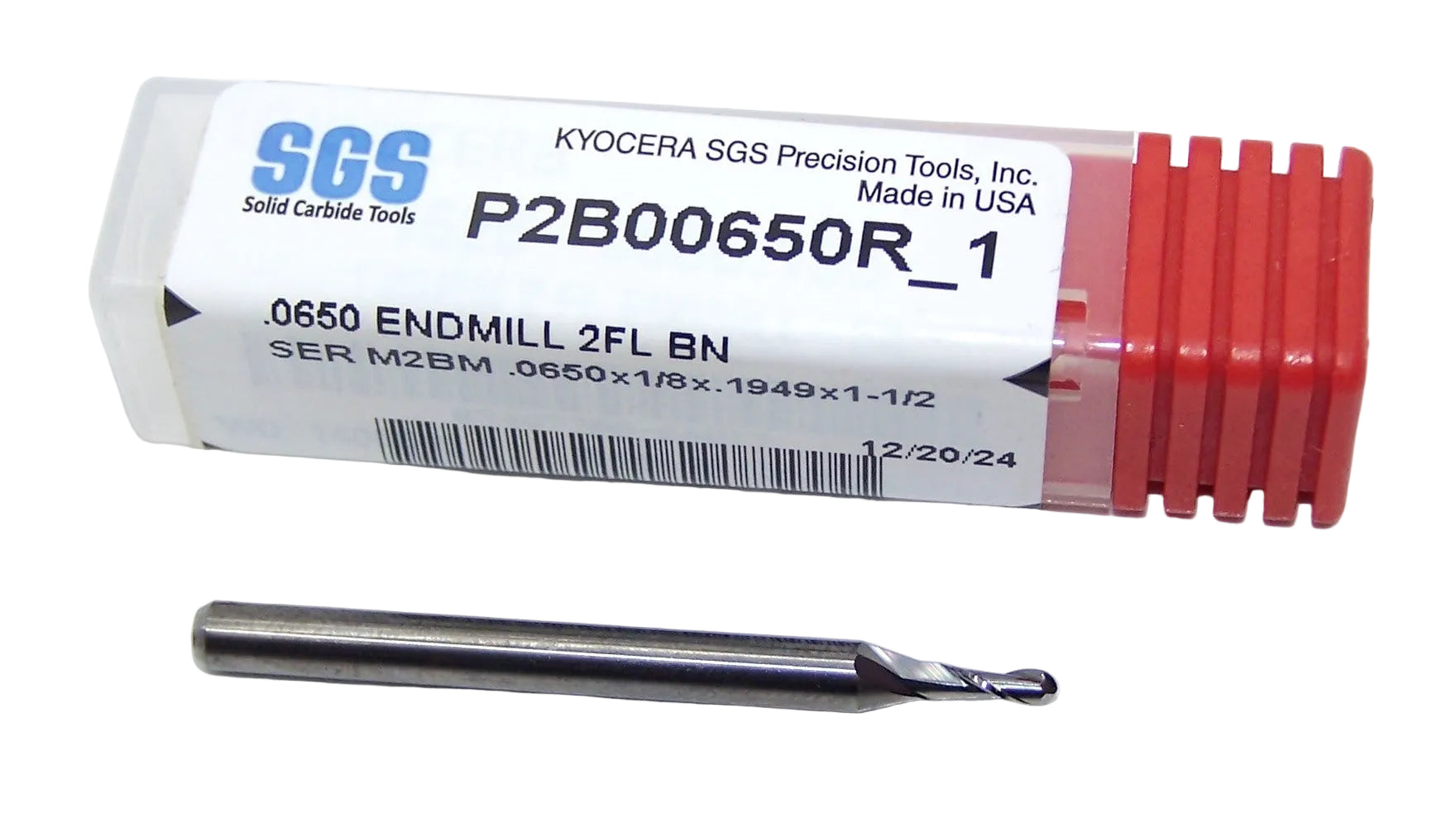

P2B00650R_1 Kyocera SGS .0650" Carbide 2 Flute End Mill Ball End 0.0650" Diameter 0.195" Flute 1.50" Length .125" Shank

P2B00650R_1 Kyocera SGS .0650" Carbide 2 Flute End Mill Ball End 0.0650" Diameter 0.195" Flute 1.50" Length .125" Shank

Part Number: P2B00650R_1

SKU: 800125068024

Manufacturer: Kyocera SGS

$9.00 USD
$9.00 USD
Sale Sold out

Low stock: 5 left

PRODUCT STATS

DIAMETER 0.0650"
FLUTE NUMBER 2
LENGTH OF CUT 0.1950"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 0.0650"
BRAND Kyocera SGS
CUTTING SIZE .0650"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Ball Nose
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Graphite, Copper, Carbon Fiber Reinforced Polymer, Plastic, Thermoset Plastic, High Density Plastic, Titanium, Steel
MPN P2B00650R_1
USABLE LENGTH 0.195"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Authorized Kyocera SGS Distributor - let me know if you need something added to the website.



Specal Make by Kyocera SGS Carbide Ball End Mill



  • Available in very small sizes
  • 2 flute design for improved chip evacuation compared to 4 flutes, while offering greater strength and higher feed rates than 2 flute
  • Square end, center cutting
  • 30° flute helix for balanced cutting
  • 1/8" shank diameter across the series
  • Optimized for deep pocket and side milling

Applications

  • Aluminum (primary)
  • Plastic (primary
  • copper (primary)
  • light steel (primary)





The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
