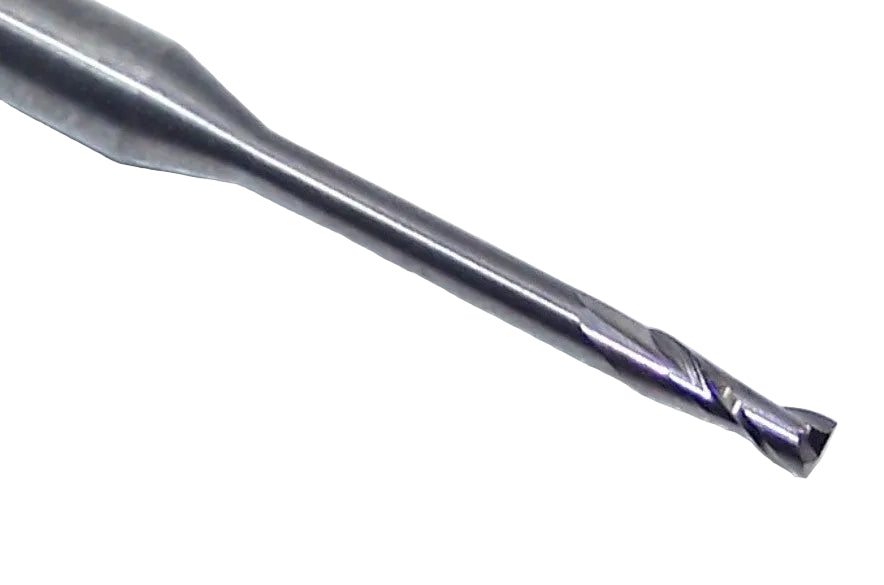

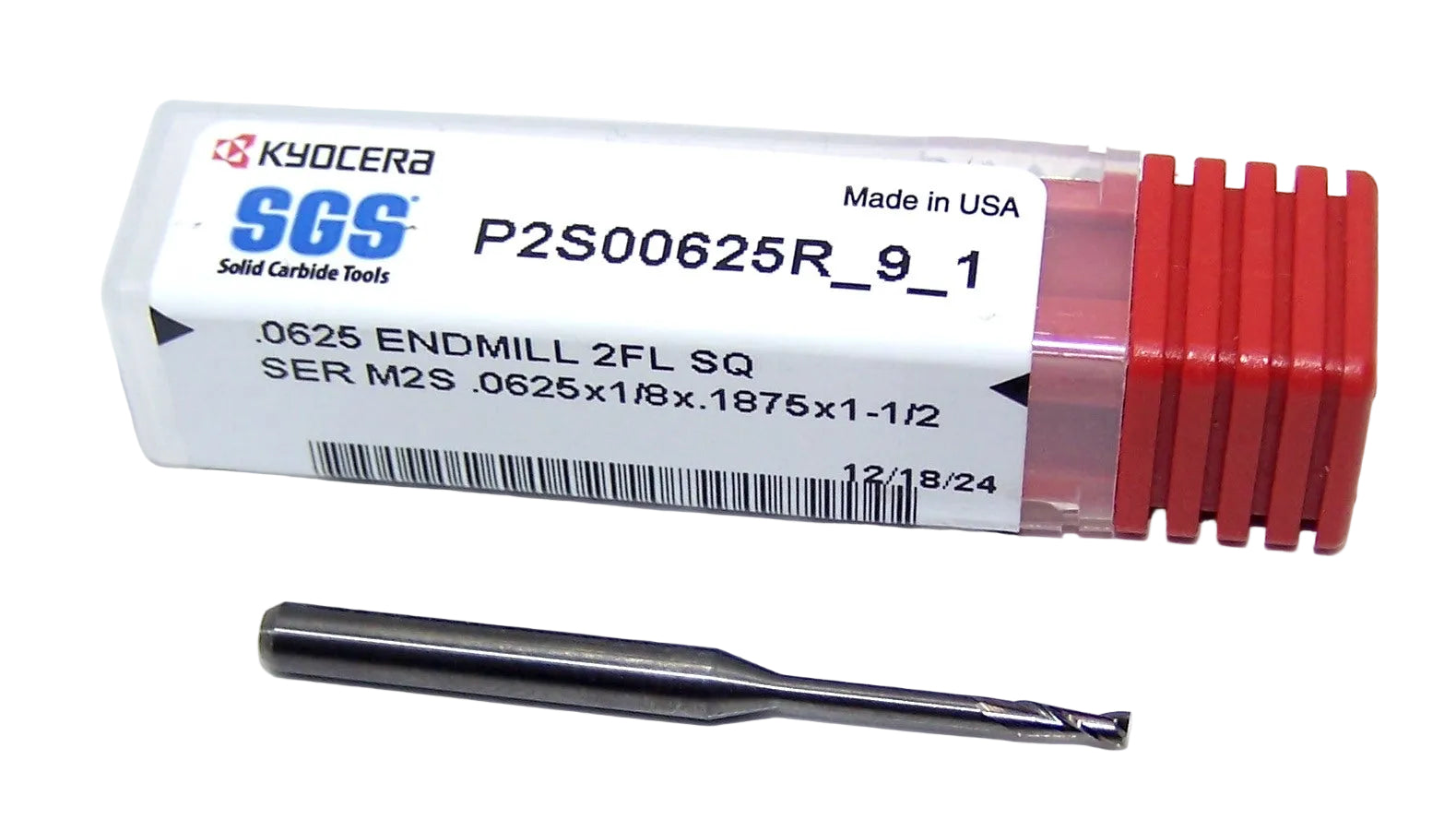

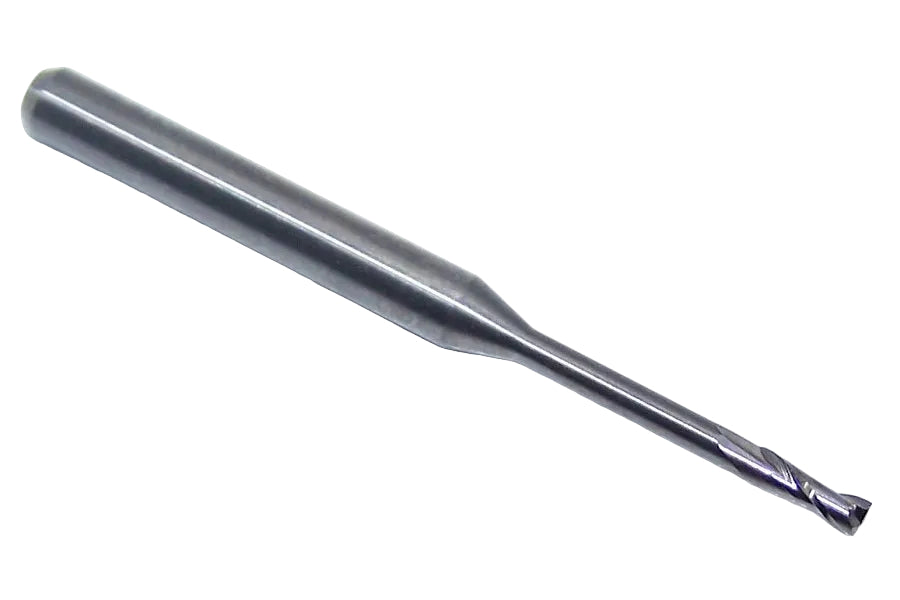

P2S00625R_9_1 Kyocera SGS 1/16" Carbide 2 Flute End Mill Square End 0.0625" Diameter 0.1875" Flute 1.50" Length .125" Shank

P2S00625R_9_1 Kyocera SGS 1/16" Carbide 2 Flute End Mill Square End 0.0625" Diameter 0.1875" Flute 1.50" Length .125" Shank

Part Number: P2S00625R_9_1

SKU: 157936581079

Manufacturer: Kyocera SGS

$8.50 USD
$8.50 USD
Sale Sold out

Low stock: 5 left

PRODUCT STATS

DIAMETER 0.0625"
FLUTE NUMBER 2
LENGTH OF CUT 0.1875"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 1/16"
BRAND Kyocera SGS
CUTTING SIZE 1/16"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Square
EXTENDED REACH 0.590"
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
FLUTE STYLE Necked Back - Extended Reach
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Graphite, Copper, Carbon Fiber Reinforced Polymer, Plastic, Thermoset Plastic, High Density Plastic, Titanium, Steel
MPN P2S00625R_9_1
USABLE LENGTH 0.1875"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Specal Make by Kyocera SGS

The Kyocera SGS M2S series is a line of micro carbide end mills with a 3‑flute ball end design, optimized for precision machining in small diameters. They balance chip evacuation, strength, and feed capability, making them ideal for micro‑finishing and high‑quality part production.

  • Available in very small sizes
  • 2 flute design for improved chip evacuation compared to 4 flutes
  • Square end, center cutting
  • 30° flute helix for balanced cutting
  • 1/8" shank diameter across the series
  • Optimized for deep pocket and side milling

Applications

  • Aluminum (primary)
  • Plastic (primary
  • copper (primary)
  • light steel (primary)
