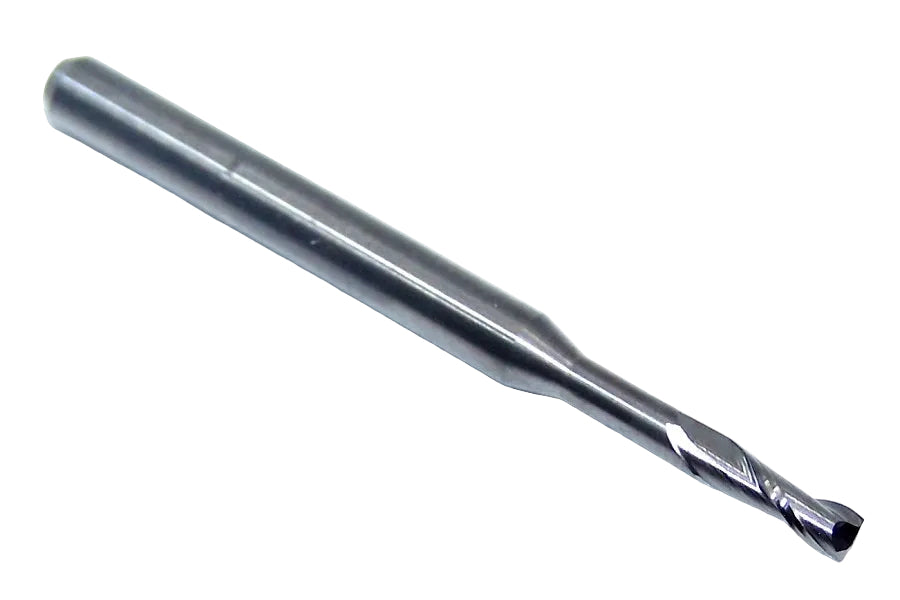

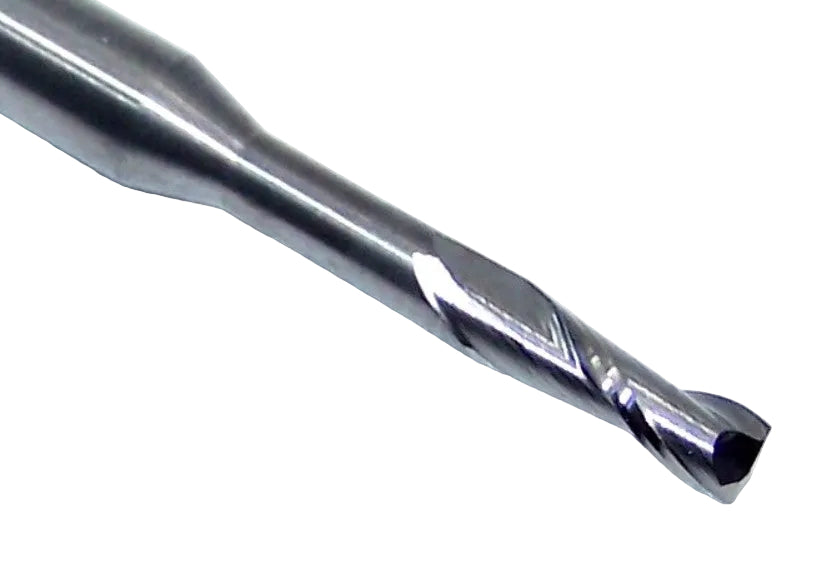

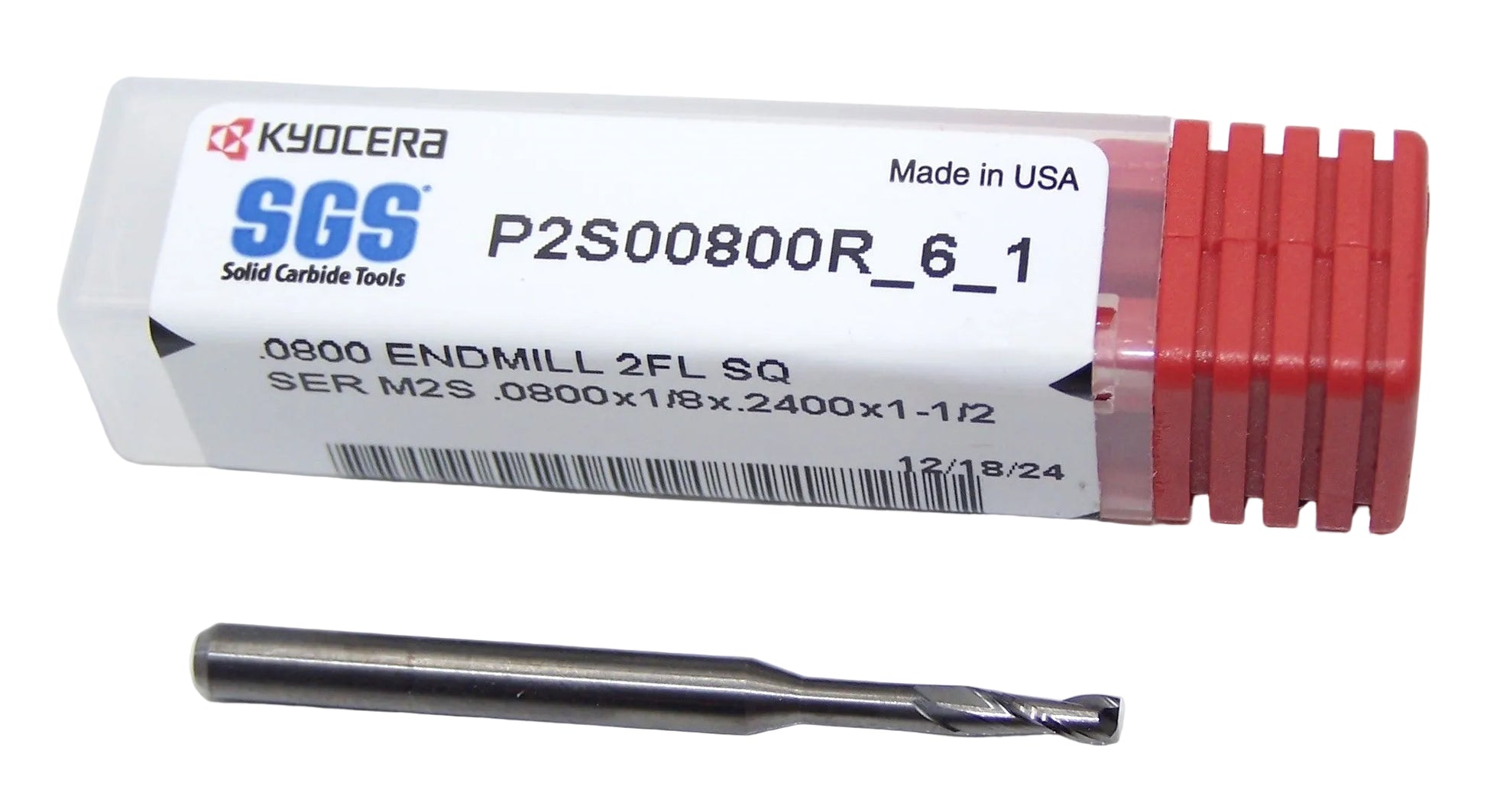

P2S00800R_6_1 Kyocera SGS .0800" Carbide 2 Flute End Mill Square End .500" Reach 0.0800" Diameter 0.2400" Flute 1.50" Length .125" Shank

P2S00800R_6_1 Kyocera SGS .0800" Carbide 2 Flute End Mill Square End .500" Reach 0.0800" Diameter 0.2400" Flute 1.50" Length .125" Shank

Part Number: P2S00800R_6_1

SKU: 800065267276

Manufacturer: Kyocera SGS

$8.25 USD
$8.25 USD
Sale Sold out

Low stock: 9 left

PRODUCT STATS

DIAMETER 0.0800"
FLUTE NUMBER 2
LENGTH OF CUT 0.2400"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 0.0800"
BRAND Kyocera SGS
CUTTING SIZE 0.0800"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Square
EXTENDED REACH 0.500"
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
FLUTE STYLE Necked Back - Extended Reach
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Graphite, Copper, Carbon Fiber Reinforced Polymer, Plastic, Thermoset Plastic, High Density Plastic, Titanium, Steel
MPN P2S00800R_6_1
USABLE LENGTH 0.24"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Specal Make by Kyocera SGS

The Kyocera SGS M2S series is a line of micro carbide end mills with a 3‑flute ball end design, optimized for precision machining in small diameters. They balance chip evacuation, strength, and feed capability, making them ideal for micro‑finishing and high‑quality part production.

  • Available in very small sizes
  • 2 flute design for improved chip evacuation compared to 4 flutes
  • Square end, center cutting
  • 30° flute helix for balanced cutting
  • 1/8" shank diameter across the series
  • Optimized for deep pocket and side milling

Applications

  • Aluminum (primary)
  • Plastic (primary
  • copper (primary)
  • light steel (primary)





The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
