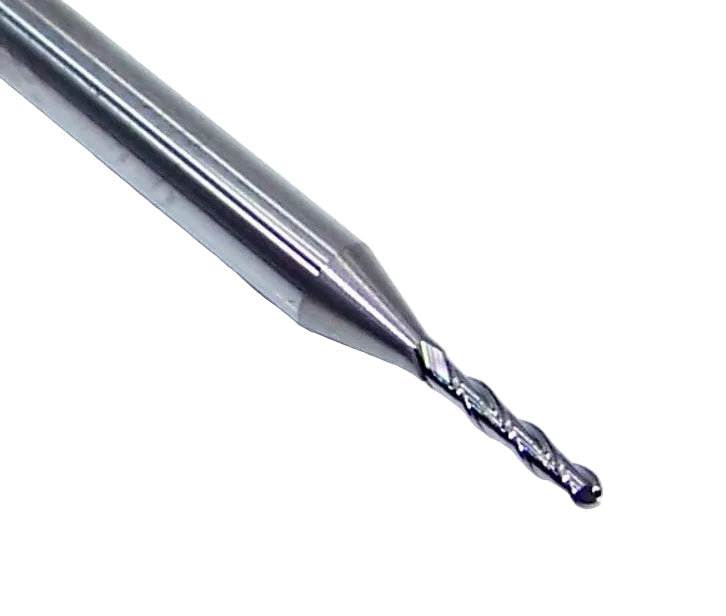

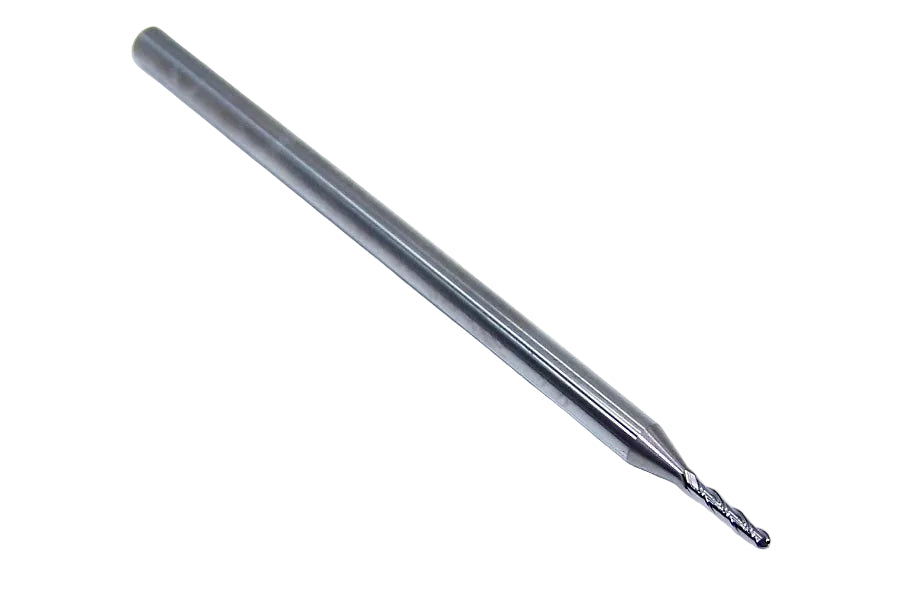

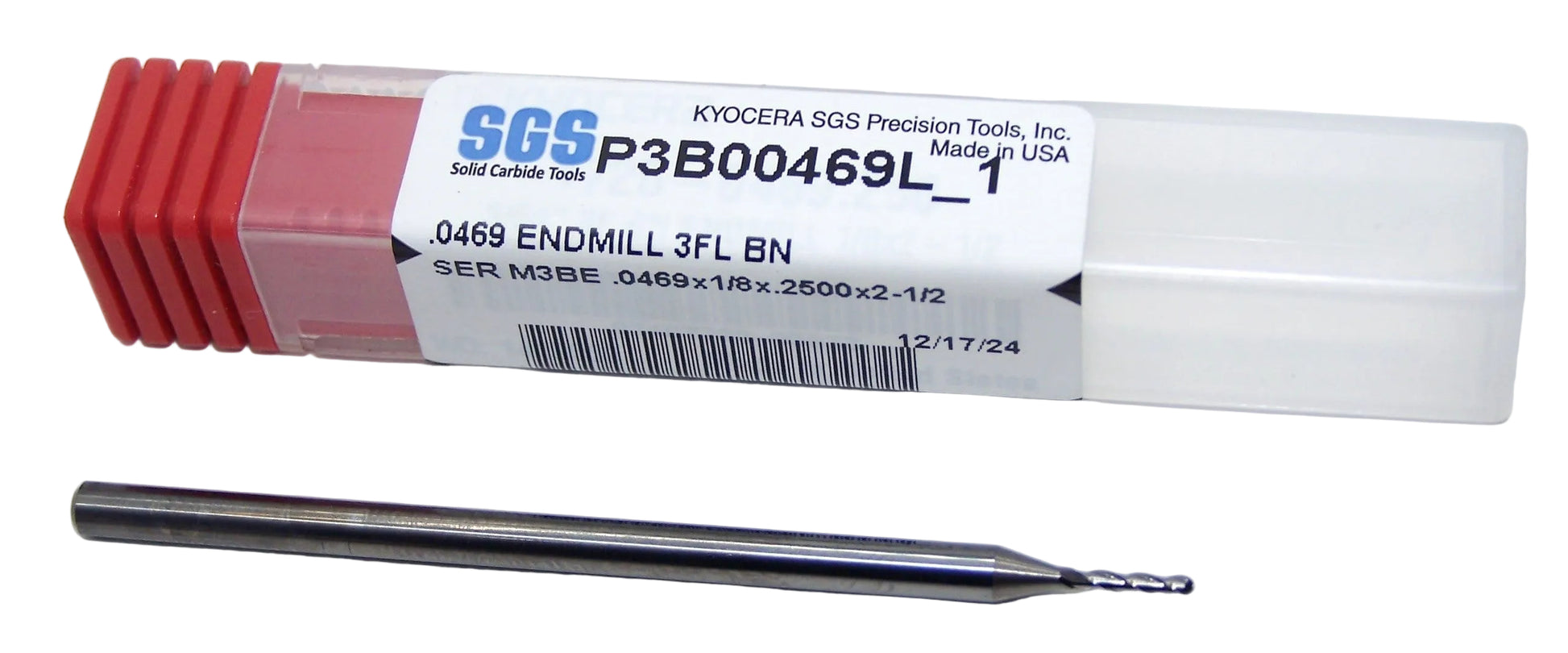

P3B00469L_1 Kyocera SGS 3/64" Carbide 3 Flute End Mill Long Length Ball End 0.0469 Diameter 0.250" Flute 2.50" Length 0.125" Shank

P3B00469L_1 Kyocera SGS 3/64" Carbide 3 Flute End Mill Long Length Ball End 0.0469 Diameter 0.250" Flute 2.50" Length 0.125" Shank

Part Number: P3B00469L_1

SKU: 157868867074

Manufacturer: Kyocera SGS

$11.57 USD
$15.00 USD $11.57 USD
Sale Sold out

Low stock: 10 left

PRODUCT STATS

DIAMETER 0.0469"
FLUTE NUMBER 3
LENGTH OF CUT 0.2500"
OVERALL LENGTH 2.5"
SHANK SIZE 0.125"
SIZE 3/64"
BRAND Kyocera SGS
CUTTING SIZE 3/64"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Ball Nose
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Graphite, Copper, Carbon Fiber Reinforced Polymer, Plastic, Thermoset Plastic, High Density Plastic, Titanium, Steel
MPN P3B00469L_1
USABLE LENGTH 0.25"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Specal Make by Kyocera SGS

The Kyocera SGS M3BE series is a line of micro carbide end mills with a 3‑flute ball end design, optimized for precision machining in small diameters. They balance chip evacuation, strength, and feed capability, making them ideal for micro‑finishing and high‑quality part production.

  • Available in very small sizes
  • 3 flute design for improved chip evacuation compared to 4 flutes, while offering greater strength and higher feed rates than 2 flute
  • Square end, center cutting
  • 30° flute helix for balanced cutting
  • 1/8" shank diameter across the series
  • Optimized for deep pocket and side milling

Applications

  • Aluminum (primary)
  • Plastic (primary
  • copper (primary)
  • light steel (primary)
