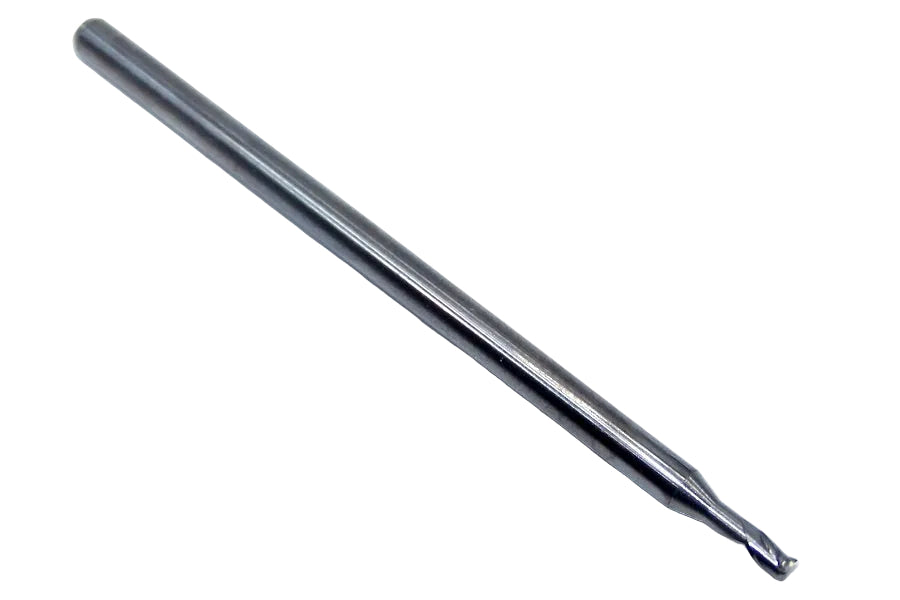

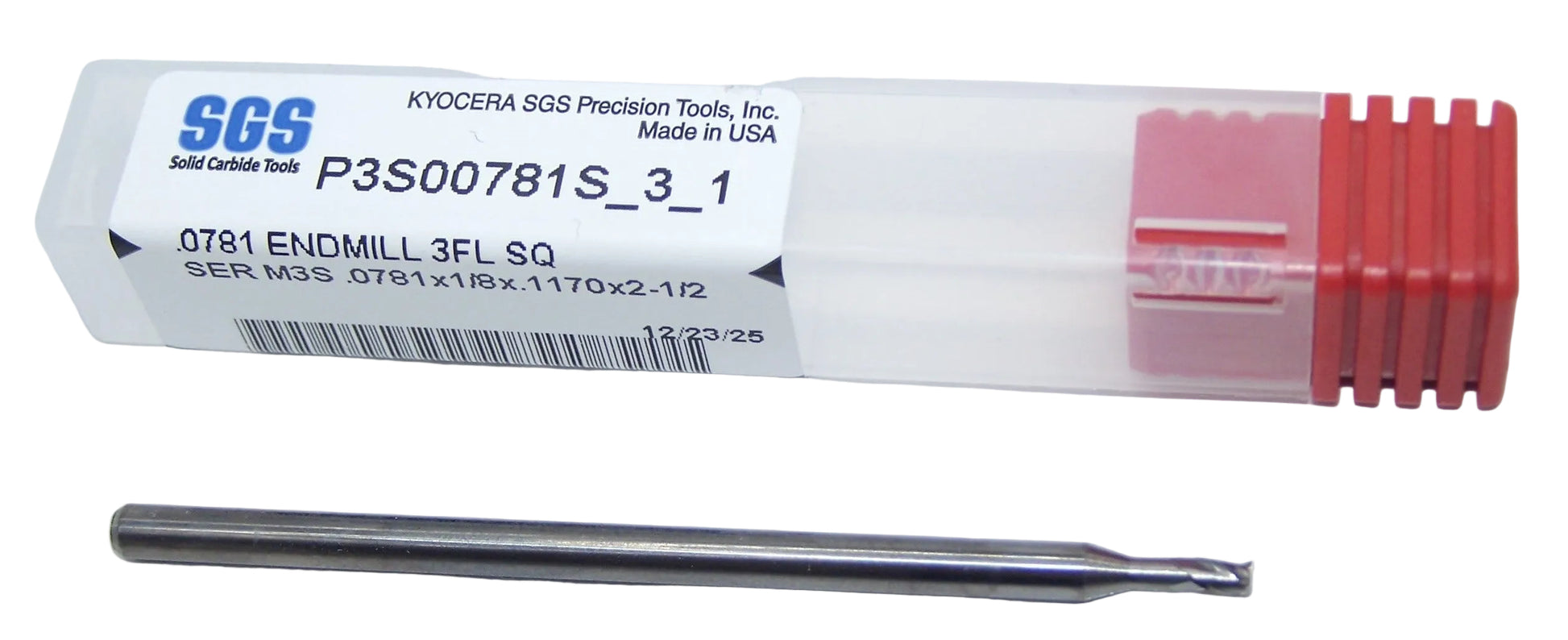

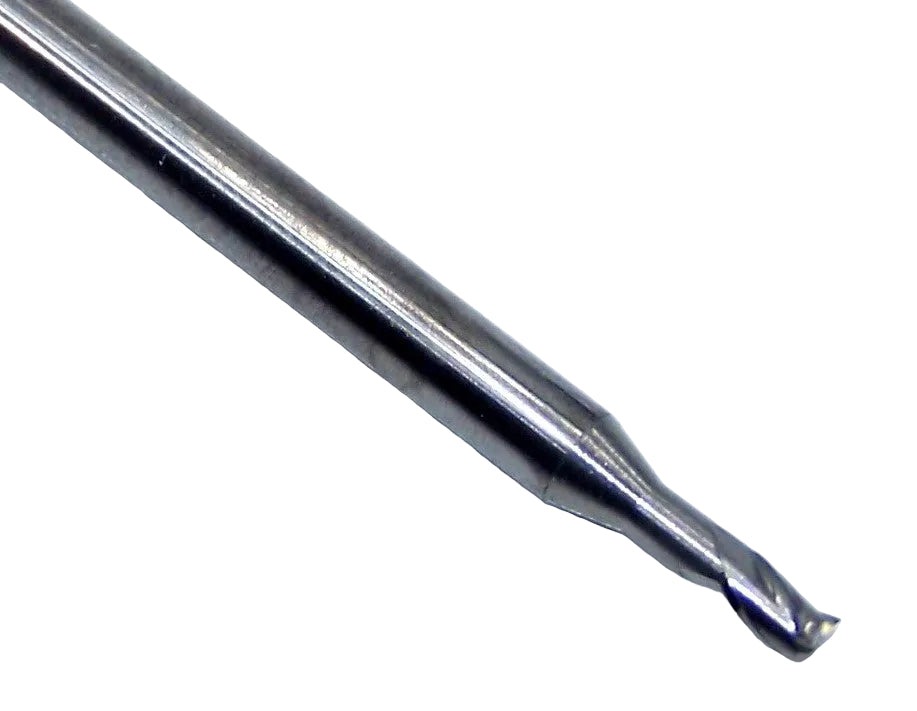

P3S00781S_3_1 Kyocera SGS 5/64" Carbide 3 Flute End Mill Square End Long Shank 0.0781" Diameter 0.117" Flute 2.50" Length .125" Shank

P3S00781S_3_1 Kyocera SGS 5/64" Carbide 3 Flute End Mill Square End Long Shank 0.0781" Diameter 0.117" Flute 2.50" Length .125" Shank

Part Number: P3S00781S_3_1

SKU: 800425182356

Manufacturer: Kyocera SGS

$11.25 USD
$11.25 USD
Sale Sold out

Out of stock? Contact us to see if more are available!

Out of stock

PRODUCT STATS

DIAMETER 0.0781"
FLUTE NUMBER 3
LENGTH OF CUT 0.1170"
OVERALL LENGTH 2.5"
SHANK SIZE 0.125"
SIZE 5/64"
BRAND Kyocera SGS
CUTTING SIZE 5/64"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Square
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Graphite, Copper, Carbon Fiber Reinforced Polymer, Plastic, Thermoset Plastic, High Density Plastic, Titanium, Steel
MPN P3S00781S_3_1
USABLE LENGTH 0.117"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Authorized Kyocera SGS Distributor - let me know if you need something added to the website.



Specal Make by Kyocera SGS



  • Available in very small sizes
  • 3 flute design
  • Square end, center cutting
  • 30° flute helix for balanced cutting
  • 1/8" shank diameter across the series
  • Optimized for deep pocket and side milling

Applications

  • Aluminum (primary)
  • Plastic (primary
  • copper (primary)
  • light steel (primary)





The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
