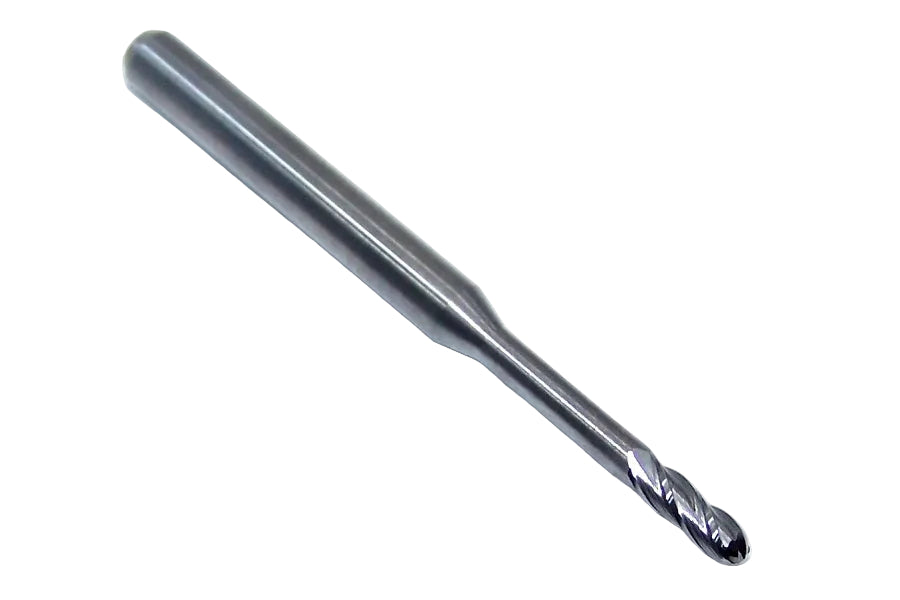

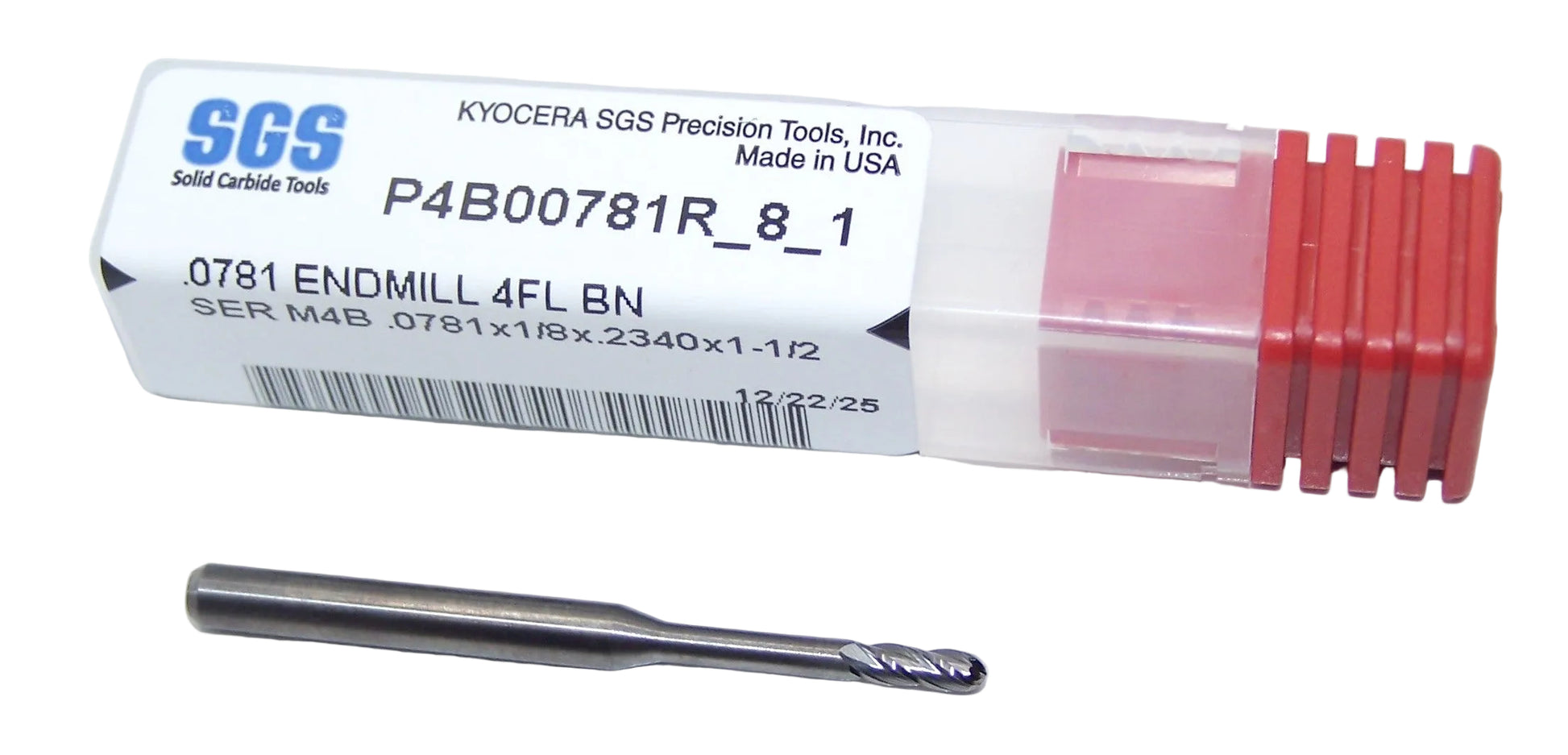

P4B00781R_8_1 Kyocera SGS 5/64" Carbide 4 Flute End Mill Ball End .575" Reach 0.0781" Diameter .234" Flute 1.50" Length .125" Shank

P4B00781R_8_1 Kyocera SGS 5/64" Carbide 4 Flute End Mill Ball End .575" Reach 0.0781" Diameter .234" Flute 1.50" Length .125" Shank

Part Number: P4B00781R_8_1

SKU: 800174550384

Manufacturer: Kyocera SGS

$11.00 USD
$11.00 USD
Sale Sold out

20 in stock

PRODUCT STATS

DIAMETER 0.0781"
FLUTE NUMBER 2
LENGTH OF CUT 0.2340"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 5/64"
BRAND Kyocera SGS
CUTTING SIZE 5/64"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Ball Nose
EXTENDED REACH 0.5750"
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Graphite, Copper, Carbon Fiber Reinforced Polymer, Plastic, Thermoset Plastic, High Density Plastic, Titanium, Steel
MPN P4B00781R_8_1
USABLE LENGTH 0.234"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Authorized Kyocera SGS Distributor - let me know if you need something added to the website.

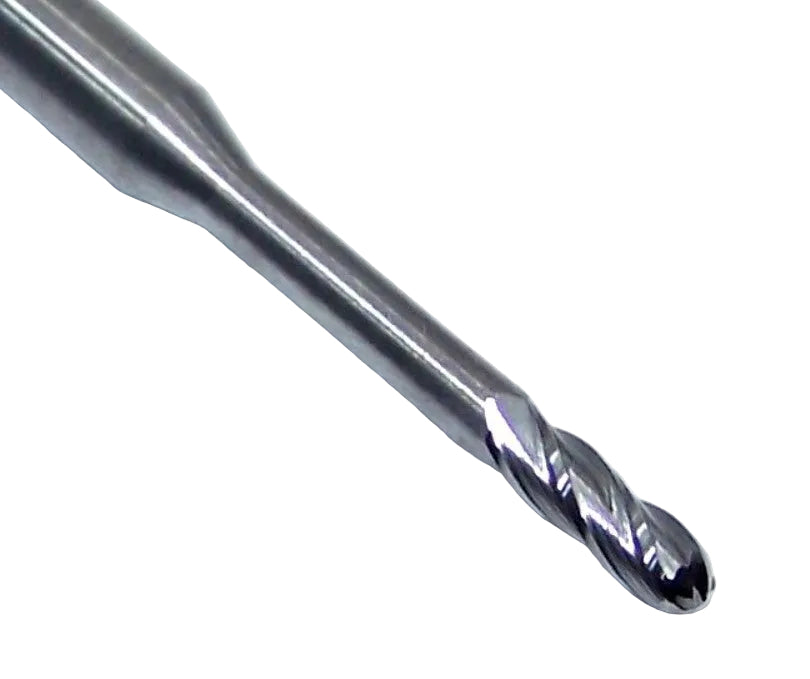

Specal Make by Kyocera SGS Carbide Ball End Mill



  • Available in very small sizes
  • 4 flute design
  • Ball end, center cutting
  • 30° flute helix for balanced cutting
  • 1/8" shank diameter across the series
  • Optimized for deep pocket and side milling

Applications

  • Aluminum (primary)
  • Plastic (primary
  • copper (primary)
  • light steel (primary)





The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
