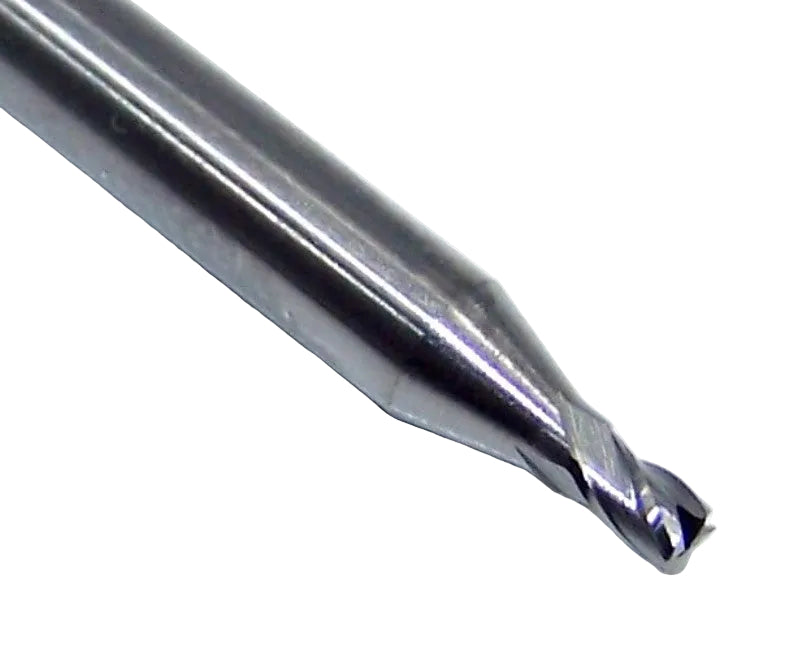

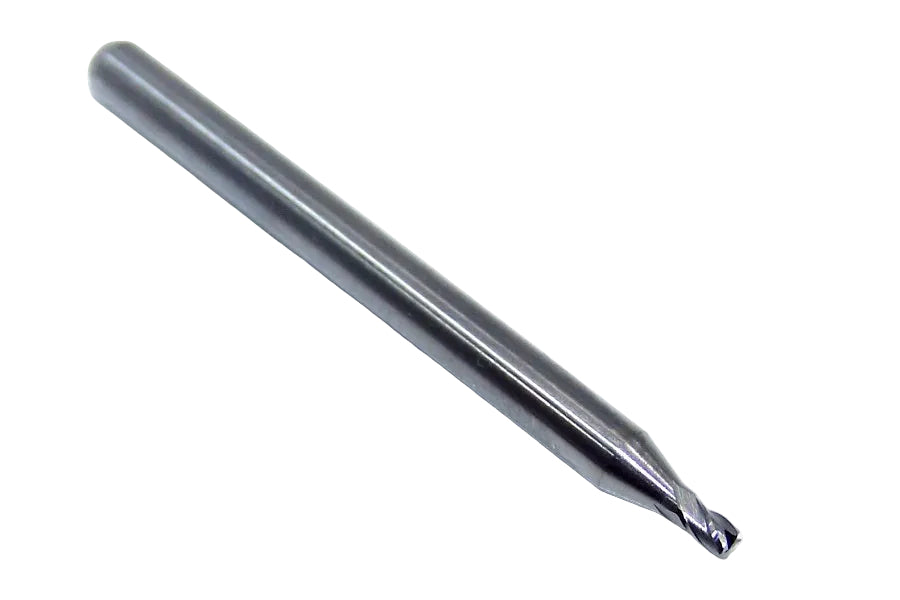

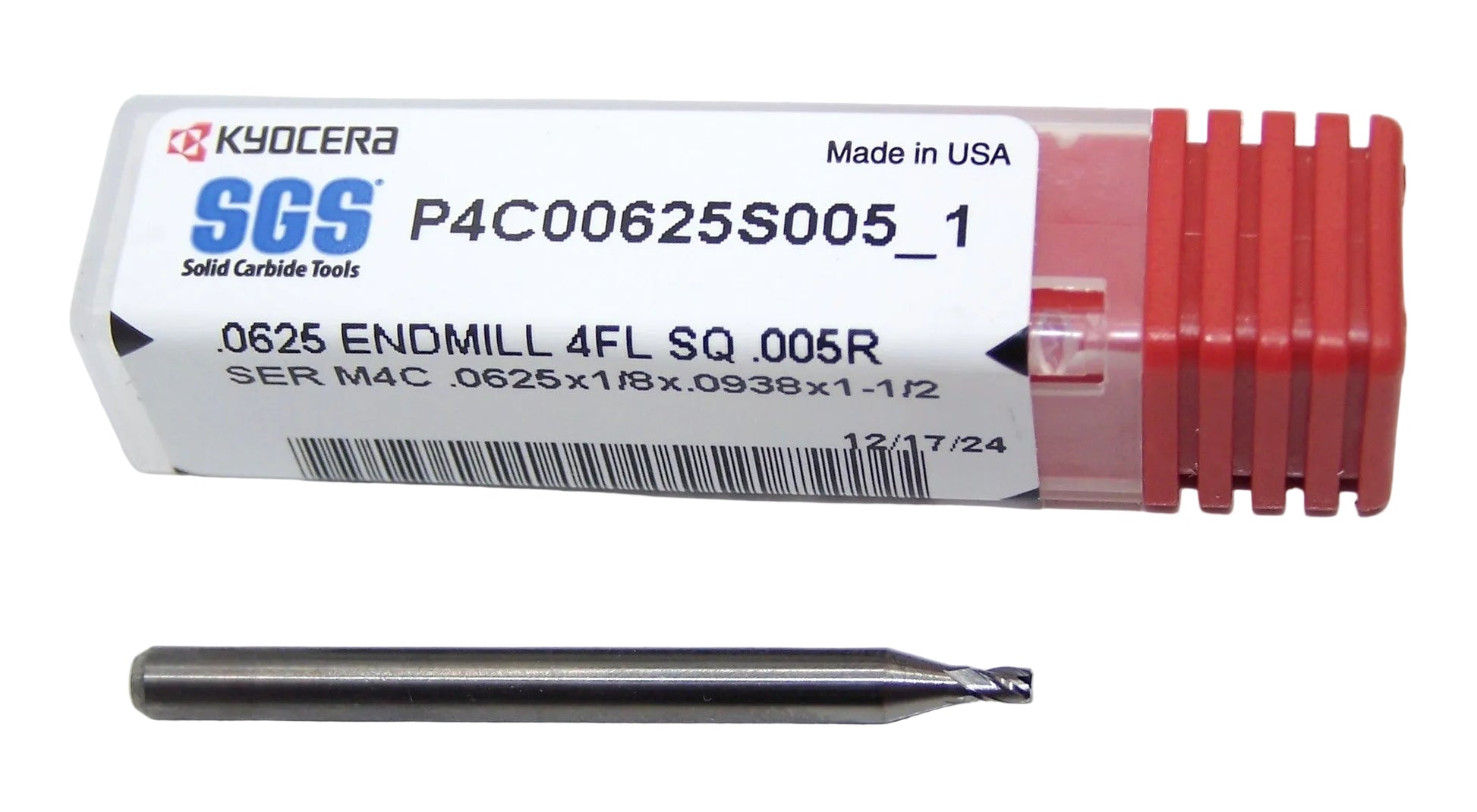

P4C00625S005_1 Kyocera SGS 1/16" Carbide 4 Flute End Mill .005" Radius End 0.0625" Diameter 0.0925" Flute 1.50" Length .125" Shank

P4C00625S005_1 Kyocera SGS 1/16" Carbide 4 Flute End Mill .005" Radius End 0.0625" Diameter 0.0925" Flute 1.50" Length .125" Shank

Part Number: P4C00625S005_1

SKU: 157962229607

Manufacturer: Kyocera SGS

$9.00 USD
$9.00 USD
Sale Sold out

Low stock: 10 left

PRODUCT STATS

DIAMETER 0.0625"
FLUTE NUMBER 4
LENGTH OF CUT 0.0938"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 1/16"
BRAND Kyocera SGS
CORNER RADIUS 0.005"
CUTTING SIZE 1/16"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Radius
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
HELIX ANGLE 30.0°
MATERIAL Solid Carbide
MATERIALS CUT Aluminum, Copper, Plastic, Titanium, Steel, Stainless Steel
MPN P4C00625S005_1
USABLE LENGTH 0.0938"
WORK DIRECTION Right Hand
Kyocera SGS Catalogs

Made in the USA

Authorized Kyocera SGS Distributor - let me know if you need something added to the website.

Specal Make by Kyocera SGS

The Kyocera SGS M4C series is a line of micro carbide end mills with a 4-flute radius end design, optimized for precision machining in small diameters. They balance chip evacuation, strength, and feed capability, making them ideal for micro‑finishing and high‑quality part production.

  • Available in very small sizes
  • 4 flute design
  • Square end, center cutting
  • 30° flute helix for balanced cutting
  • 1/8" shank diameter across the series
  • Optimized for deep pocket and side milling

Applications

  • Aluminum (primary)
  • Plastic (primary
  • copper (primary)
  • light steel (primary)
